35
Step 1
Step 2
..........X2
40539
Fuel Tank
Post
40539
Fuel Tank
Post
* Take the fuel tank
post from 40539
plastic parts tree.

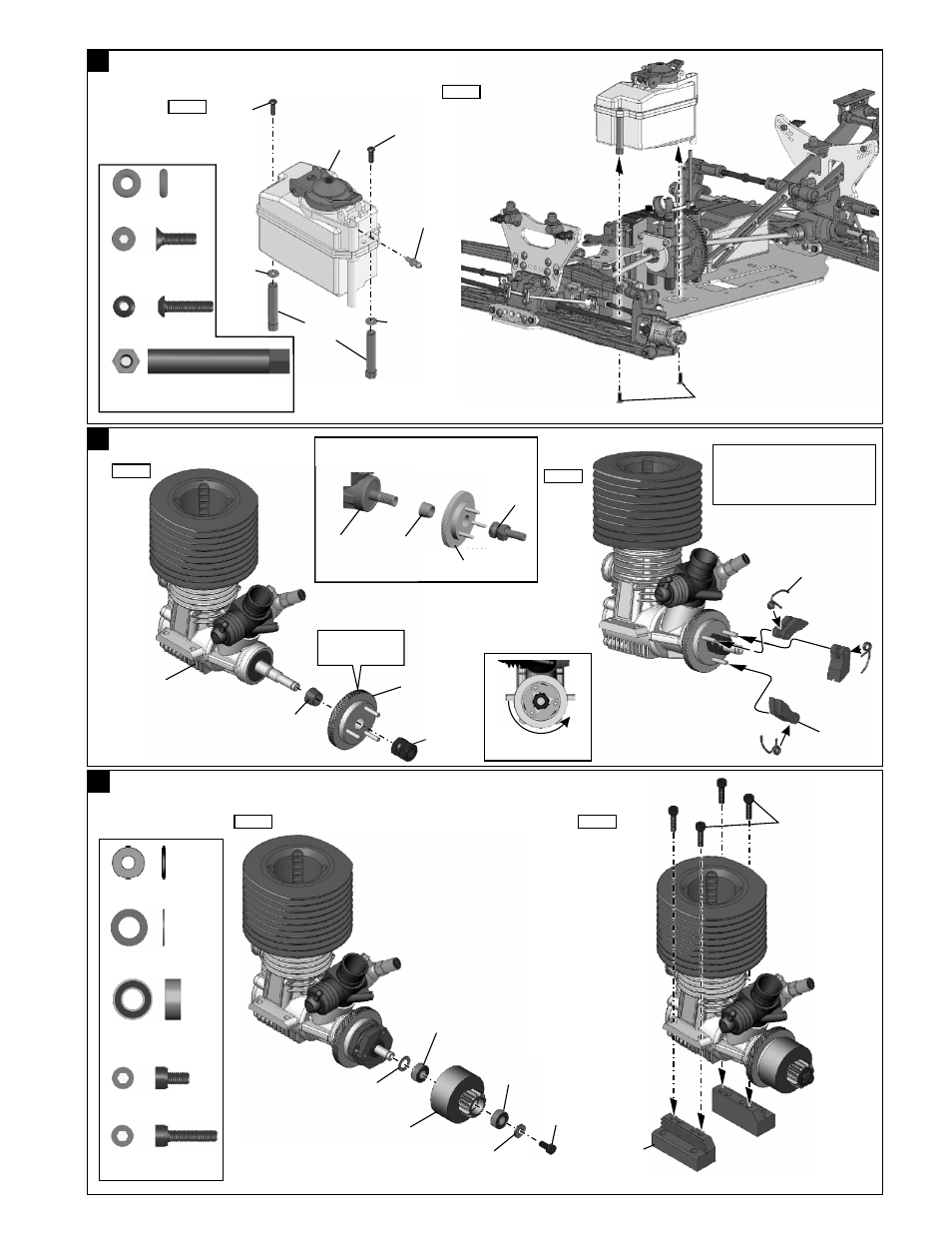

ASSEMBL OF THE FUEL TANK Y
94004
3x12mm
Hex Screw
94004
3x12mm
Hex Screw
Pressure Nipple
400661
Fuel Tank
94019
3x10mm
Flat Head Hex
Screw
37070
O-Ring
94004
3x12mm
Hex Screw
..........X2
..........X2
94019
3x10mm
Flat Head
Hex Screw
..........X2
37070
P3 O-Ring
370707
P3 O-Ring
37
36
13
Step 1
Step 1
Step 2
Step 2
..........X1
..........X2
..........X1
..........X1
..........X4
Fit the flywheel using
a pair of the plIer and
cross wrench.
10101
Clutch Spring
10011
Clutch Shoes
10099
5x9x0.3mm
Washer
10099
5x9x0.3mm
Washer
34110
5x10x4mm
Ballbearing
34110
5x10x4mm
Ballbearing
10399
13T
Clutch Bell
3x8mm
Washer
3x8mm
Washer
10099
3x5mm
Cap Screw
10099
3x5mm
Cap Screw
30481
3x16mm
Cap Screw
ASSEMBLY OF THE CLUTCH
ASSEMBLY OF THE CLUTCH AND ENGINE MOUNT
Engine Mount
40674
30481
3x12mm
Cap Screw
*Place the clutch shoes with the clutch
springs over the 3 pins of the flywheel.
*Using a phillips screw driver or needle
nose pliers and bend the small end lf the
clutch spring behind the pilot shaft
10091 or 10098 D than press down.
7mm À @ « ¬ ® M
10330
7mm
Tapper Corn
10040
3 Pin Flywheel
10098
SG Clutch Nut
Engine rotation direction.
SG Type
Crank Shaft
10091
Pilot Shaft
10040
Pilot Shaft
Threaded
CrankShaft
34110
5x10x4mm
Ballbearing
* Only use this 10091 pilot shaft for threaded crank
shaft engine.
10330
Tapper Corn
