53
19
94004
3x12mm
Hex Screw
40672w (white)
40672y (yellow)
Wing
Drill two 7mm holes for
mounting.
40542
Countersunk
Plastic Washer
94041
3mm
Nylock Nut

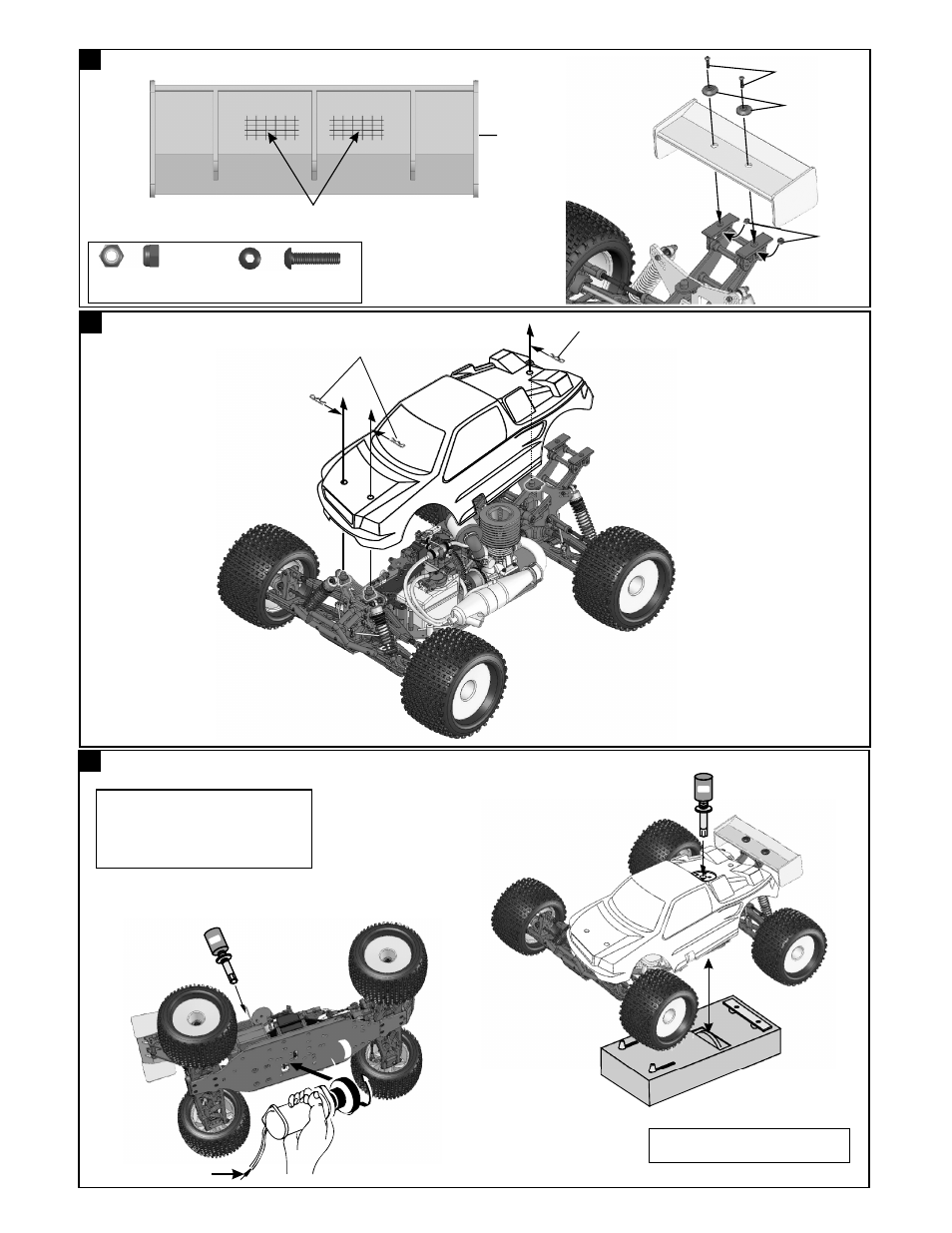

ASSEMBLY OF THE WING
..........X2 ..........X2
94004
3x12mm
Hex Screw 94041
3mm
Nylock Nut
Starter Box
(Not Included)
1.2V
MOUNTING BODY 54
55
31159
Body Clip
31159
Body Clip
STARTING OF THE ENGINE
1. Turn on transmitter and then receiver.
2. Fill fuel tank with fuel bottle.
3. Connect 1.2V glow plug starter.
4. Start engine with 12V starter.
( Note the direction of the starter.)
5. After the engine be started, remove the
1.2V glow plug starter.
* Follow the engine manufacturer instruction
manuals regarding engine set-up, carburetor
and maintenance.
*To start the car, attach a glow plug igniter
to the glow plug, and use either an electric
starter or starter box applied to the flywheel
exposed through the chassis.
Connect with
12V battery.
Note the direction of
the starter.
1.2
V
