OFNA Racing Jammin SCRT Nitro RTR User Manual

Page 34

background image

57

58

59

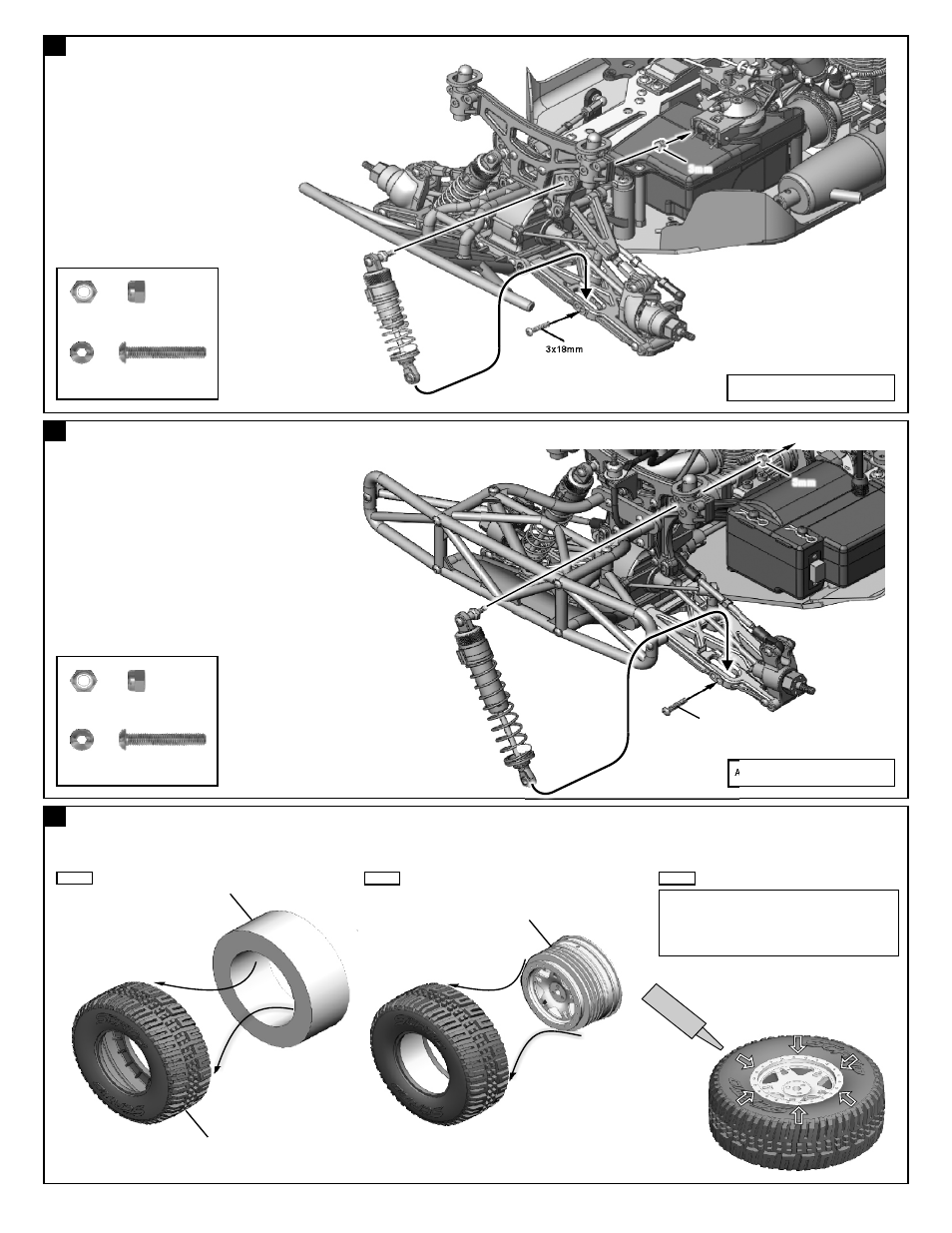

ASSEMBLY OF THE FRONT SHOCK ABSORBER

ASSEMBLY OF THE REAR SHOCK ABSORBER

ASSEMBLY OF THE TIRES AND WHEELS

94006
3x18mm
Hex Screw

.....x2

94041
3mm
Nylon Nut

.....x2

94006
3x18mm
Hex Screw

.....x2

94041
3mm
Nylon Nut

.....x2

Step 1

Step 3

Step 2

TAN

T

INS

G

LU

E

SC-10

40952

40950

Assemble both right and left sides.

Assemble both right and left sides.

*Make four tires that are the same.

3mm

3x18mm

3mm

3x18mm

•Use " Instant glue " and draw a line a round the
rim where it attaches the tire . When it is dry
glue the other side of the rim.

•Repeat the step and ensure the rim and tire are
fully glued.
