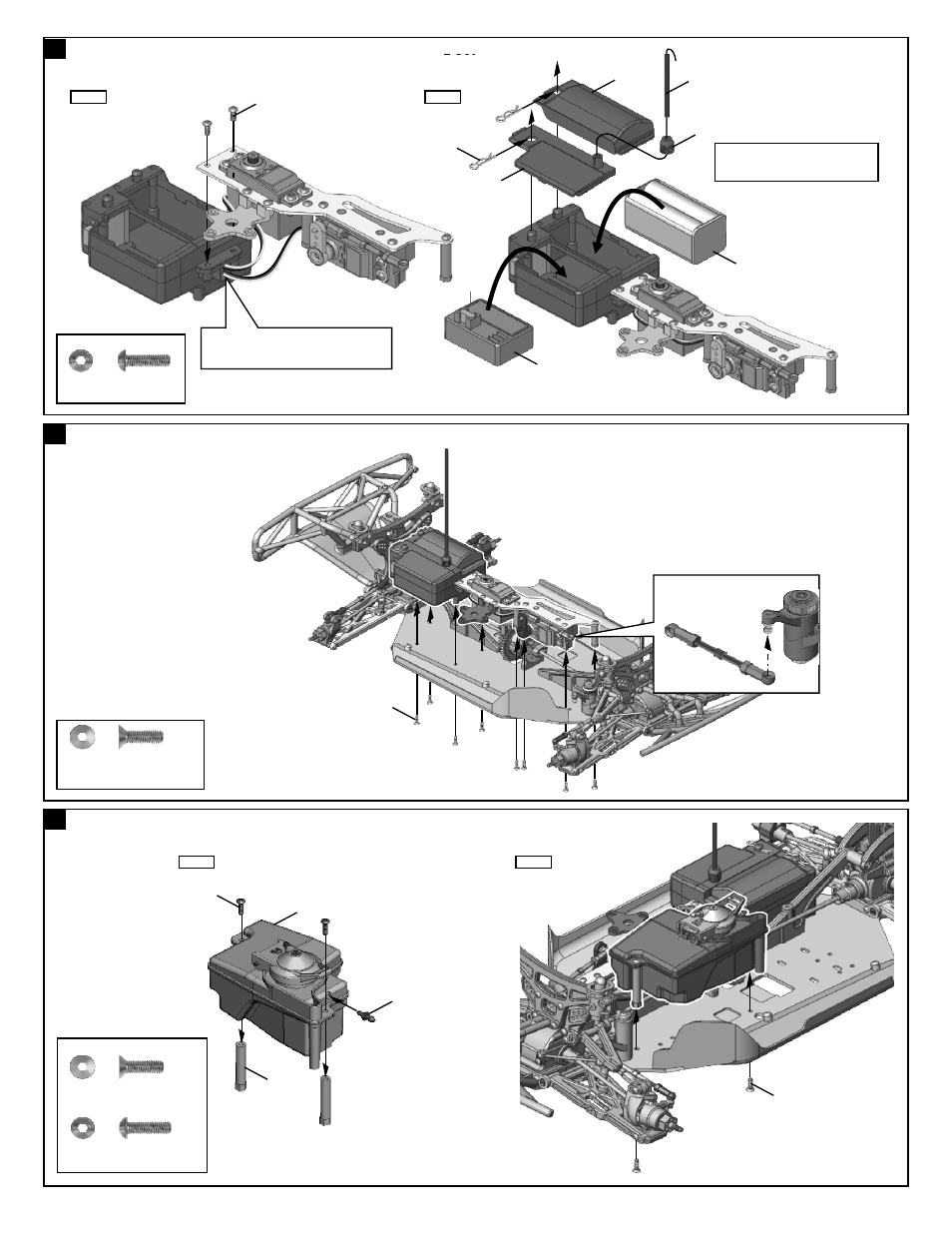

ASSEMBLY OF THE RADIO TRAY AND RECEIVER BOX

ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS

ASSEMBLY OF THE FUEL TANK ONTO CHASSIS

94003
3x10mm
Hex Screw

.....x2

Step 1

Step 2

30560

40541

Receiver

Battery Case

40642

37410

40541

3x10mm

•Use the original battery case or
rechargeable hump pack battery.

•Connect battery wire to switch.

•Put the servo wire into receiver box and
connect to receiver.

94019
3x10mm
Flat Head Hex Screw

.....x8

3x10mm

94003
3x10mm
Hex Screw

.....x2

94019
3x10mm
Flat Head Hex Screw

.....x2

Step 1

3x10mm

Pressure Nipple

40138

40543

Step 2

3x10mm

•Snap into 4mm ball & socket.
