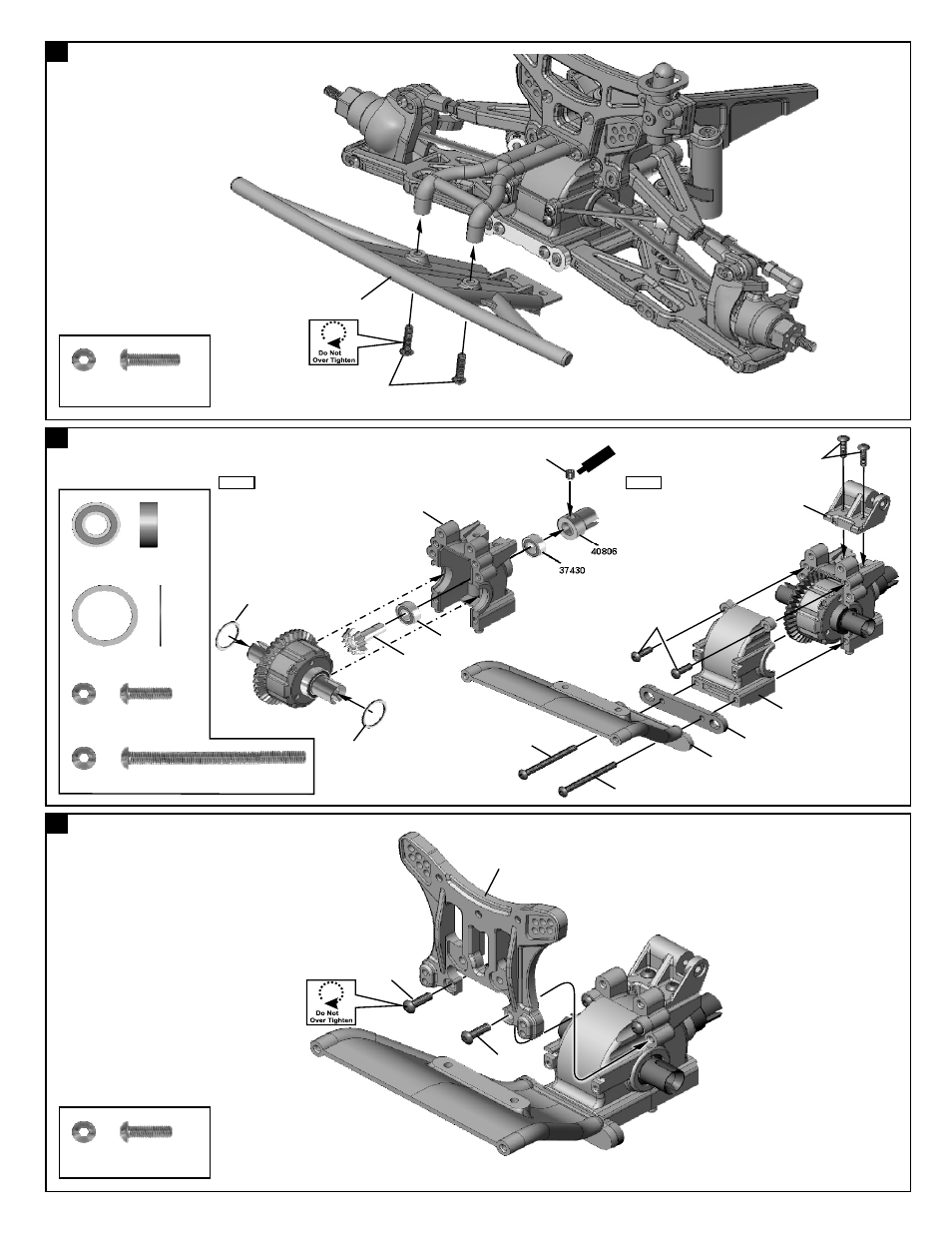

ASSEMBLY OF THE FRONT BUMPER

ASSEMBLY OF THE REAR GEAR CASE

ASSEMBLY OF THE REAR SHOCK STAY

Step 1

Step 2

38254

38254

40804

37430

40840

37430

40806

4x4mm

37430
5x11mm Ball Bearing

.....x2

94003
3x10mm
Hex Screw

.....x4

94055
3x40mm Hex Screw

.....x2

38254
12x15x0.25mm Shim

.....x2

re

w

Sc

Ce

m

en

t

3x10mm

94003
3x10mm
Hex Screw

.....x2

3x12mm

94004
3x12mm
Hex Screw

.....x2

3x40mm

3x40mm

40815

3x10mm

40840

40921

3x10mm

40945

40870

3x10mm

40943
