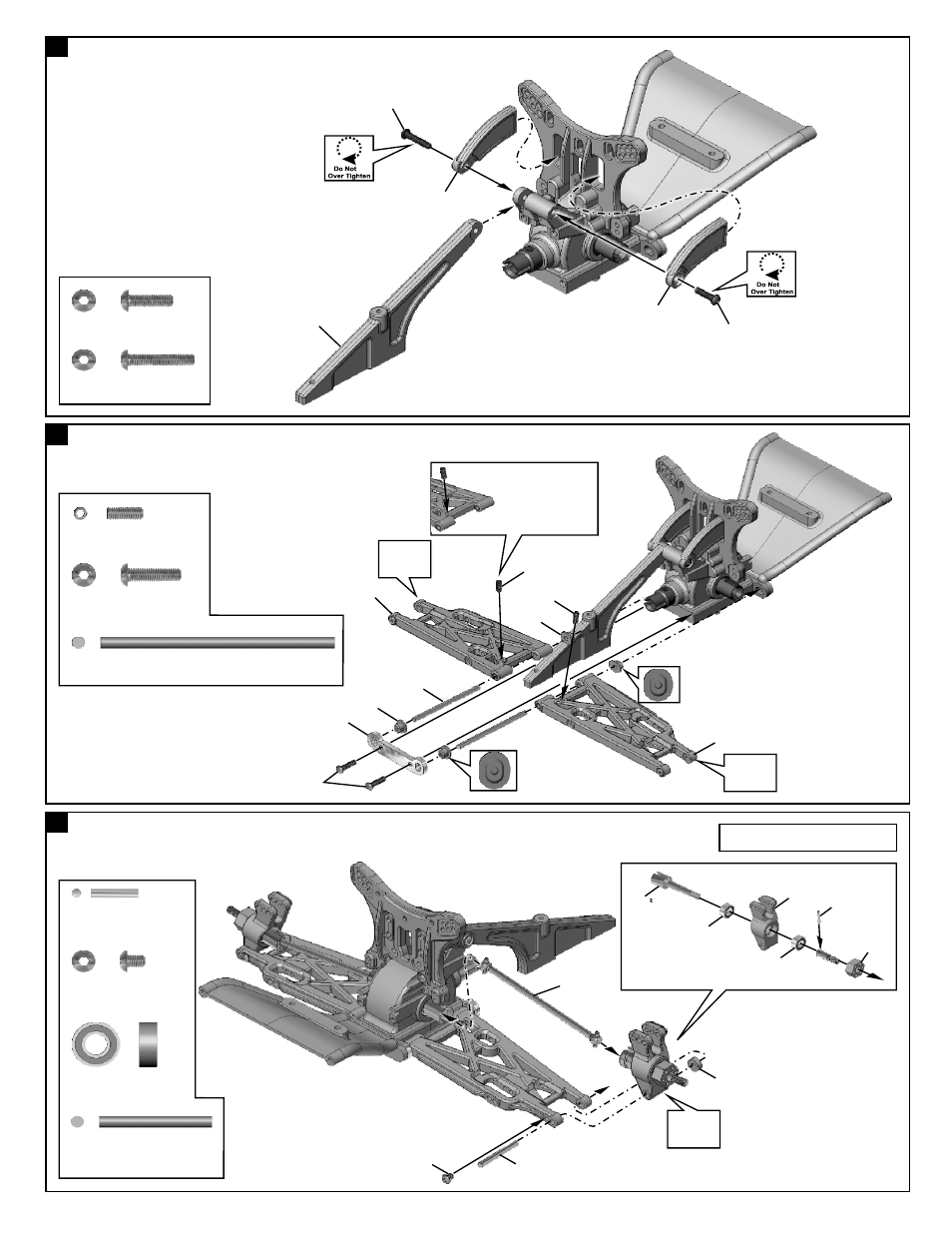

ASSEMBLY OF THE REAR CENTER BRACE

ASSEMBLY OF THE REAR LOWER ARMS

ASSEMBLY OF THE REAR SUSPENSION ARMS

Assemble both right and left sides.

40947

3x15mm

3x10mm

3x12mm

40816

40837

40825

40837

40836

3x8mm

3x4mm

40823

40843

94003
3x10mm
Hex Screw

.....x1

94005
3x16mm
Hex Screw

.....x1

37430
5x11mm
Ball Bearing

.....x4

94001
3x4mm
Hex Screw

.....x2

Ensure
Free
Movement

Ensure
Free
Movement

Ensure
Free
Movement

40924

40836

3x8mm

24

37430

37430

40843

40840

37390

40923

94035
3x8mm
Set Screw

.....x2

94004
3x12mm
Hex Screw

.....x2

40825
3x53mm Arm Shaft

.....x2

40823
3x25.8mm
Arm Shaft

.....x2

40947

40947

37390
2x10.8mm Pin

.....x2

•A 3x8mm set screw
is used to adjust
ride-height.
