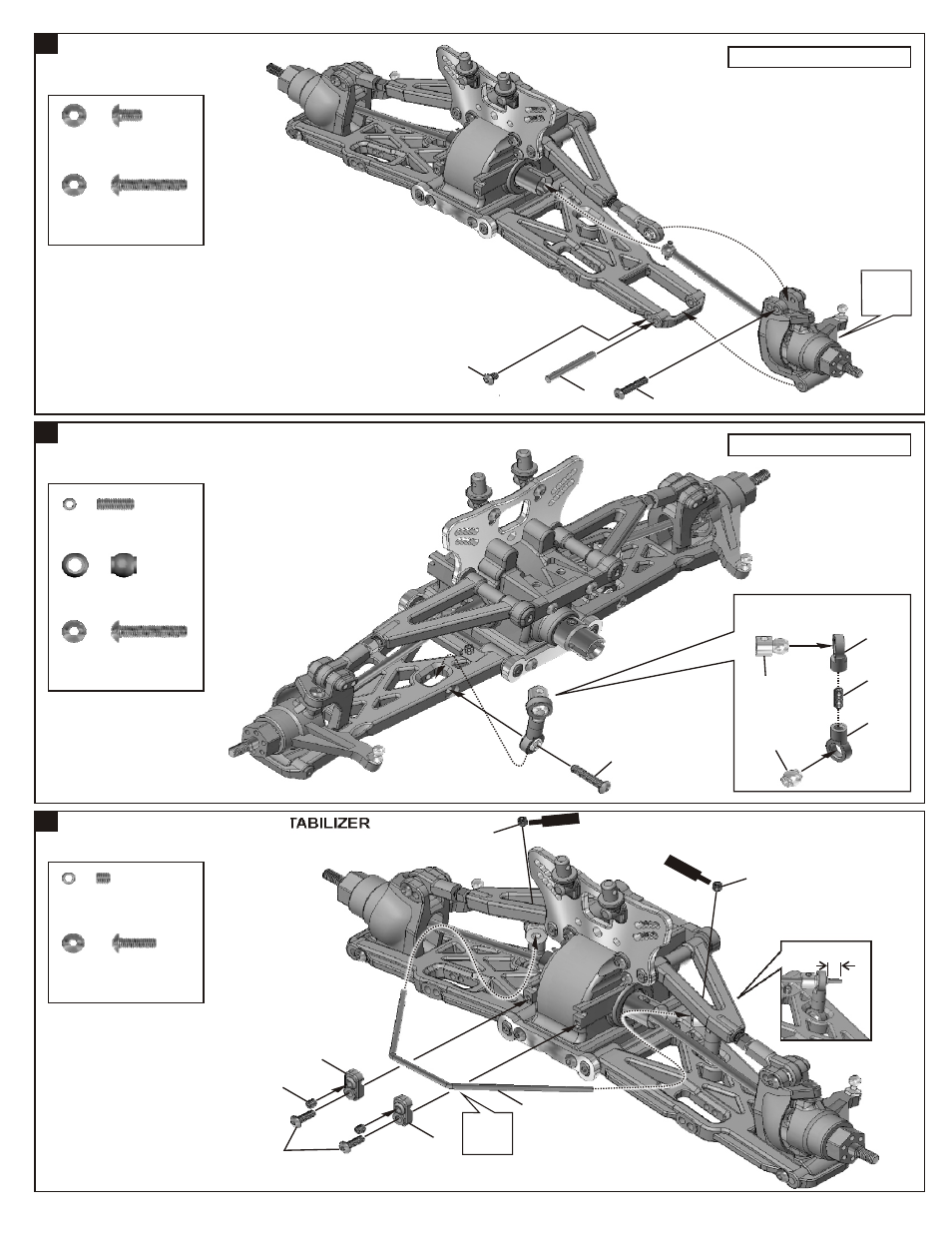

ASSEMBLY OF THE FRONT SUSPENSION ARMS

Assembly for both right and left side.

ASSEMBLY OF THE FRONT STABILIZER

Assembly for both right and left side.

Makes two rods for left and right
hand-side.

ASSEMBLY OF THE FRONT STABILIZER

3x4mm

3x15mm

40823

3x15mm

3x8mm

40848

40848

30341

30403

2.5x8mm

3x3mm

40840

40817

40840

3x3mm

3x3mm

94001
3x4mm
Hex Screw

.....x2

94005
3x15mm
Hex Screw

.....x2

94005
3x15mm
Hex Screw

.....x2

94035
3x8mm
Set Screw

.....x2

.....x2

30403
6mm Ball

94033
3x3mm
Set Screw

.....x4

94044
2.5x8mm
Hex Screw

.....x2

Ensure
Free
Movement

Ensure
Free
Movement

Scre w

e

Cem nt

Scr

ew

e

Cem

nt

2.5mm
