25

26

27

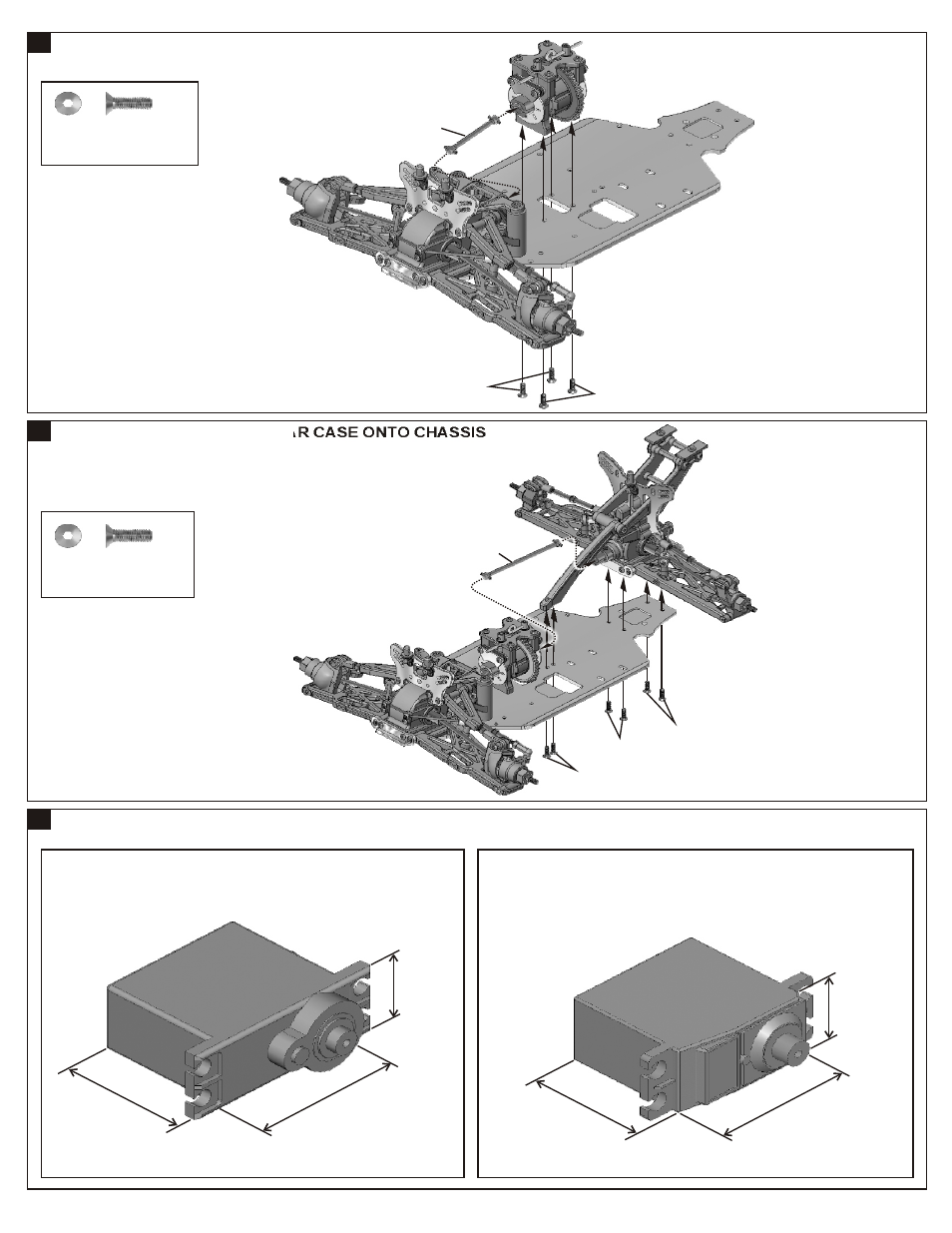

ASSEMBLY OF THE CENTER DIFF. ONTO CHASSIS

ASSEMBLY OF THE REAR GEAR CASE ONTO CHASSIS

SUITABLE SERVO
(CHECK YOUR SERVO BEFORE USE.)

40822

3x10mm

3x10mm

40822

3x10mm

3x10mm

3x10mm

94019
3x10mm
Flat Head Hex Screw

.....x6

94019
3x10mm
Flat Head Hex Screw

.....x4

TYPE A

TYPE B

28~32mm

35~36mm

15~17mm

28~30mm

31~33mm

15~16mm

*Insert the drive shaft into
the cap joint before assembly
center diff. onto chassis.

*Insert the drive shaft into
the cap joint before assembly
rear gear box onto chassis.

Futaba- S9650

AIRTRON ICS - 94141Z

JR- STEERING ONLY- DS9411

Hitec- HS-5245MG

JR- THROTTLE ONLY- DS3400G
