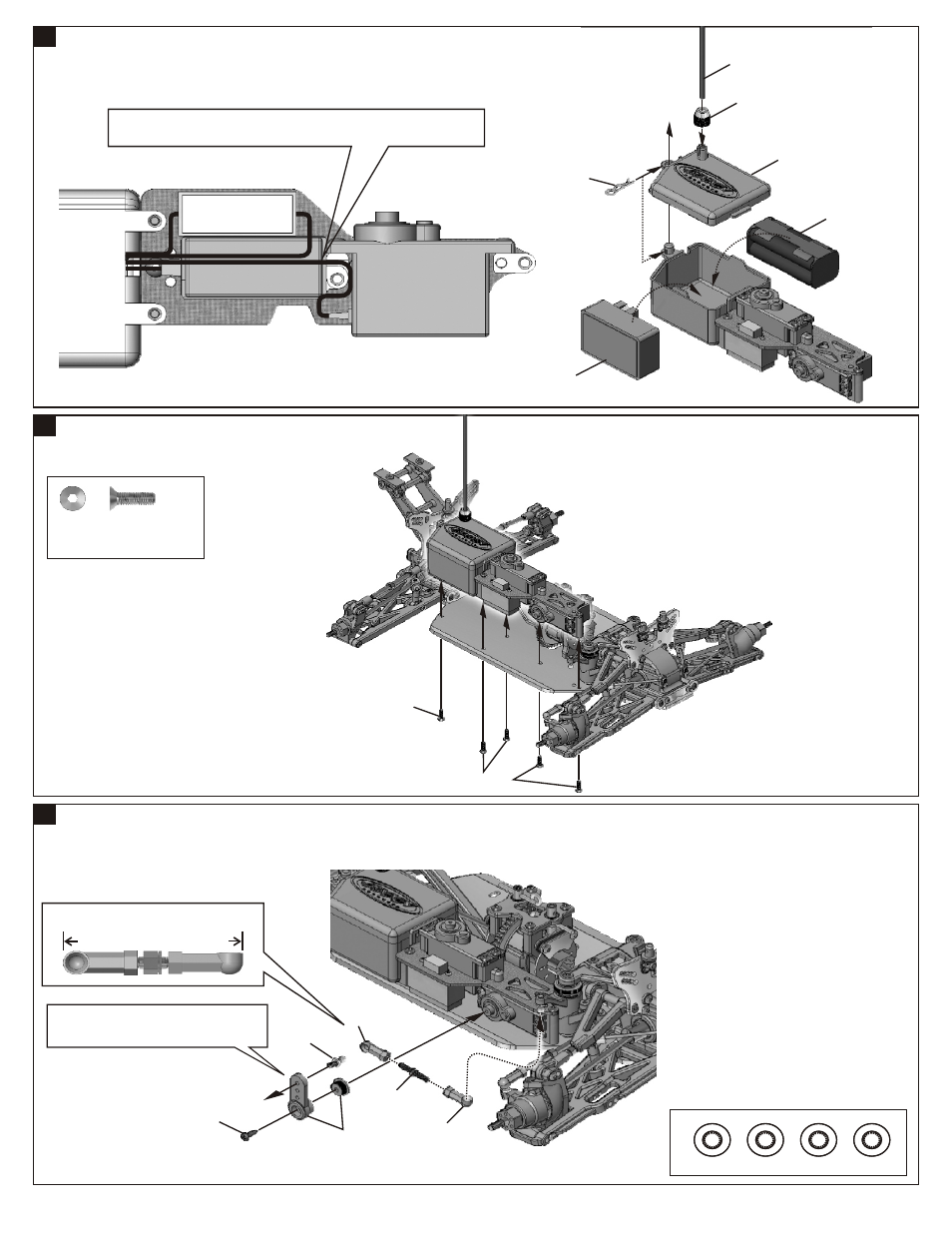

ASSEMBLY OF THE RADIO TRAY AND RECEIVER BOX

ASSEMBLY OF THE RADIO TRAY ONTO CHASSIS

ASSEMBLY OF THE STEERING SERVO AND STEERING ROD

37410

40855

30560

3x10mm

30661

37360

38398

37650

40833

94019
3x10mm
Flat Head Hex Screw

.....x5

Use the screw
provided with
your servo.

Receiver

40861

*Use the AAA type
bettery

*Put the Servo and Switch wire into receiver box and connect to receiver .
*Arrangement the servo wire as picture shown.

*Approx. 40mm

1:1

* Choose the right servo horn adapter for your servo.

Sanwa/Airtronics

Futaba

HiTech

*Ensure that servo gears are centered before attaching
the servo horns. The best way to accomplish this is by
connecting the servos to the radio system and setting
the trim to the center.
