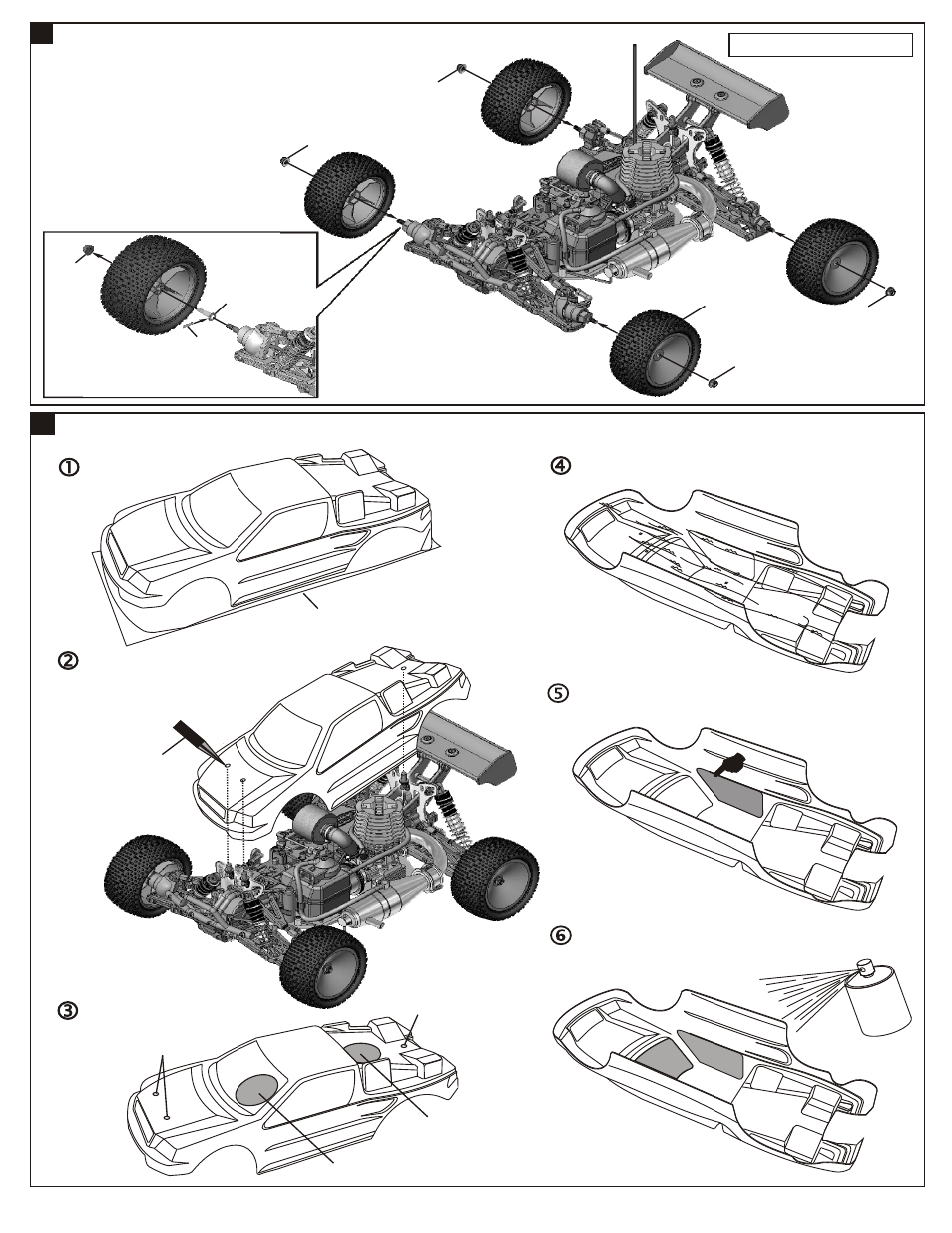

50 ASSEMBLY OF THE TIRE ONTO FRONT KNUCKLE AND REAR HUB
Assembly for both right and left side.
Tire and Wheel assembly.
51
Cut out the body as shown. Use a neutral detergent to remove any dirt and oil.
Mask the windows from the inside with masking tape.
Paint the body with polycarbonate spray paints.
Spray Paint Making two holes on the front and
one hole on the rear for body posts.
5mm
5mm
Cut out for engine.
Hole for fuel tank.
ASSEMBLY OF THE BODY AND PAINTING
Body Reamer
( Not included)
Before cutting and making holes on the body,
put the unpainted body on the chassis
to confirm the mounting position and
location for holes and cutouts.
40865
40865
40865
40865
40853
* For other wheels please assembly as picture shown.
40865
37390
5x8x0.8mm
*Put the 5x8x0.8mm
washer behind the
2mm pin.
10803
