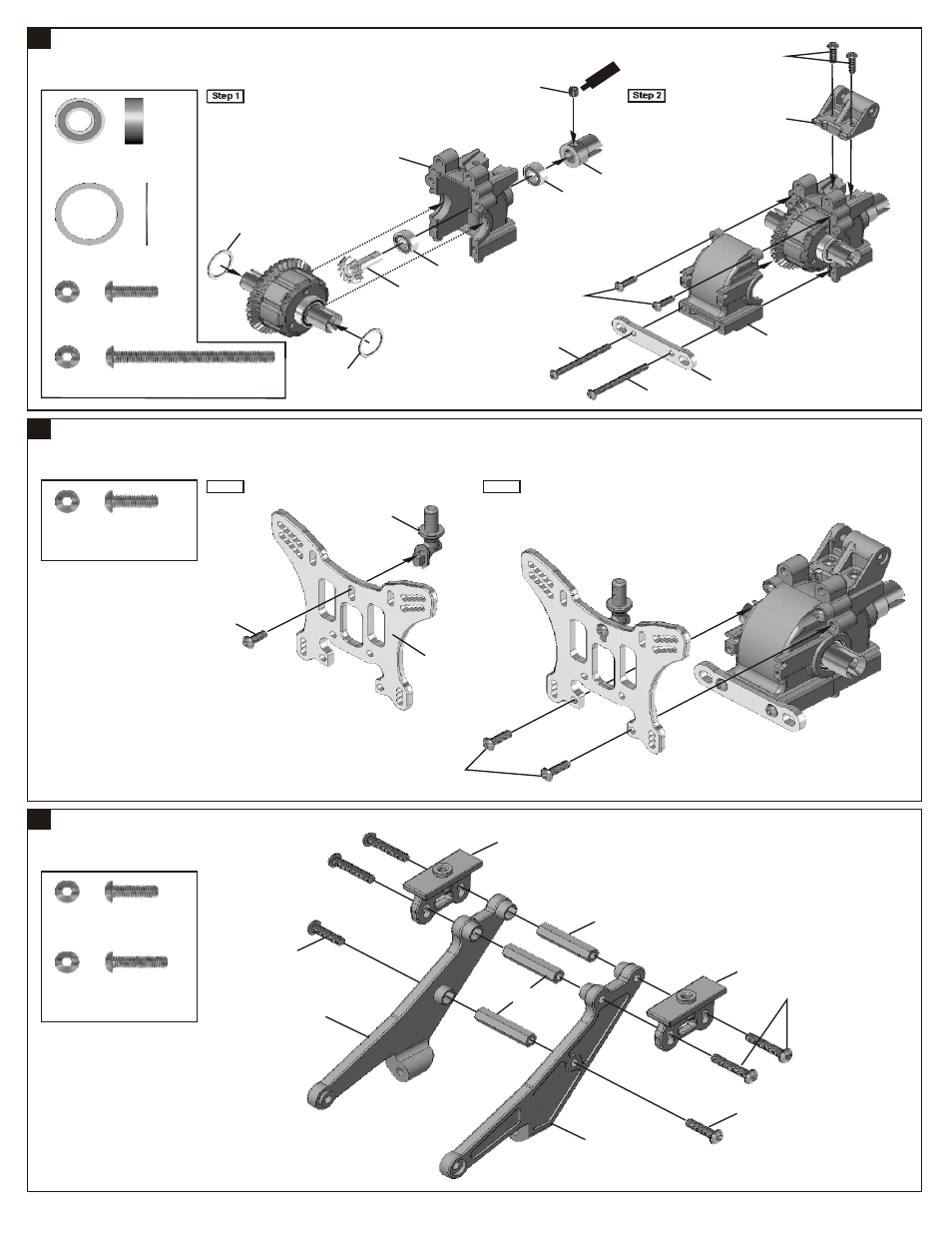

ASSEMBLY OF THE REAR GEAR CASE

ASSEMBLY OF THE REAR SHOCK STAY

ASSEMBLY OF THE WING STAY

Step 1

Step 2

Step 1

Step 2

3x10mm

3x12mm

38254

38254

40804

37430

40840

37430

40806

4x4mm

3x35mm

3x35mm

40815

3x10mm

40840

40834

3x10mm

40842

3x10mm

40873

3x10mm

40842

40842

40842

40842

40842

40842

3x10mm

37430
5x11mm Ball Bearing

.....x2

94003
3x10mm
Hex Screw

.....x4

94043
3x35mm Hex Screw

.....x2

38254
12x15x0.25mm Shim

.....x2

94003
3x10mm
Hex Screw

.....x3

94003
3x10mm
Hex Screw

.....x2

94004
3x12mm
Hex Screw

.....x4
