Assembly of the front bumper, Assembly of the rear bumper – OFNA Racing DM-1e Spec User Manual

Page 22

background image

44

43

45

Step 1

Step 2

40721

.....x2

36870
4x10mm
Set Screw

94026
4x12mm
Flat Head
Hex Screw

.....x2

4x10mm

40117

•Approx. 4 mm

•The 4x10mm set screw is used to adjust down stop.

Completely Finished

Tighten

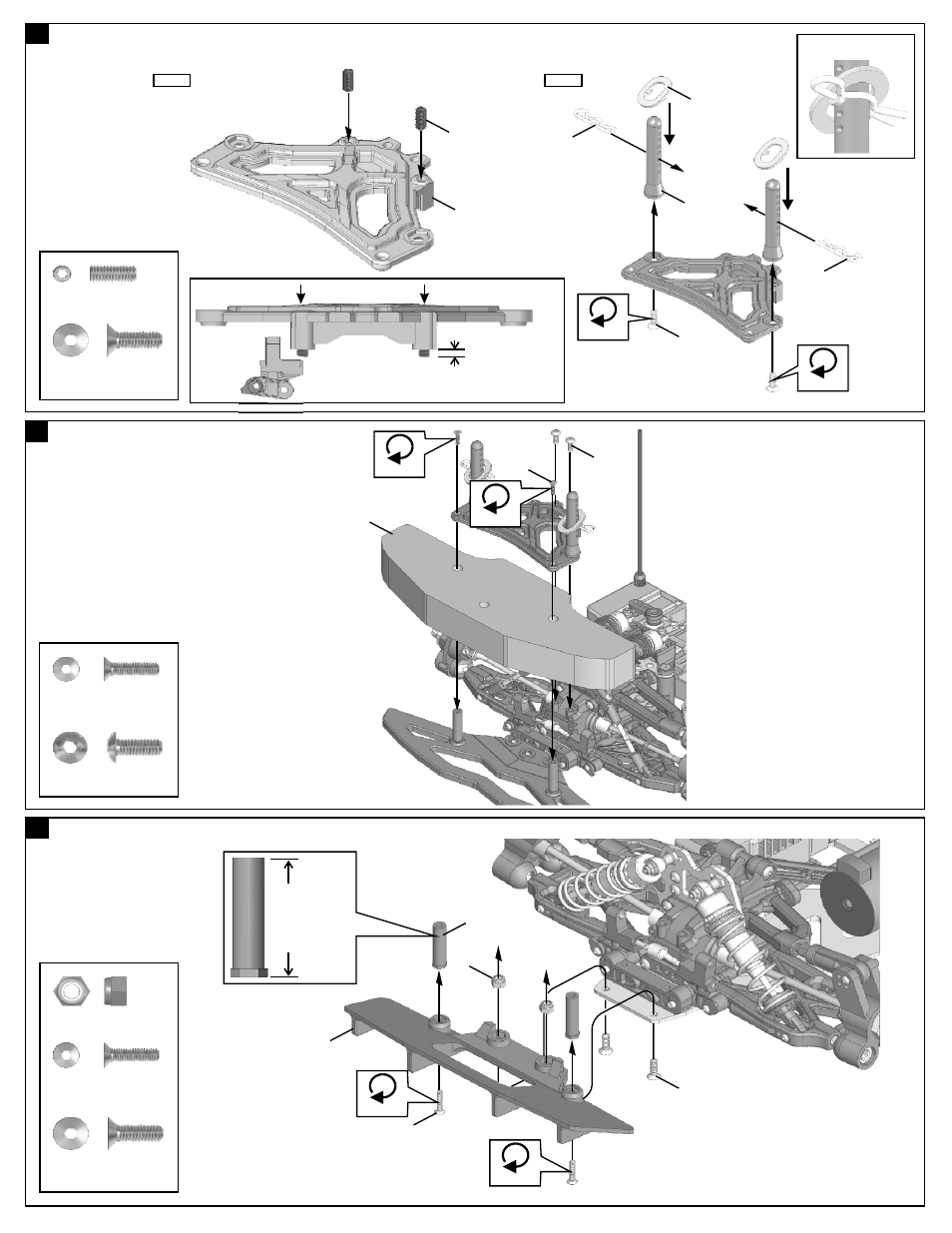

ASSEMBLY OF THE FRONT BUMPER

94009
4x10mm
Hex Screw

.....x2

.....x2

94020
3x12mm
Flat Head
Hex Screw

ASSEMBLY OF THE FRONT BUMPER

4x10mm

40725

3x12mm

ASSEMBLY OF THE REAR BUMPER

40721

4x12mm

40721

94026
4x12mm
Flat Head
Hex Screw

.....x2

.....x2

94020
3x12mm
Flat Head
Hex Screw

.....x2

94042
4mm
Nylon Nut

•Approx. 28.5 mm


1:1

3x12mm

4mm

Tighten

4x12mm

31159

31159

40117

Tighten

Tighten

Tighten

Tighten
