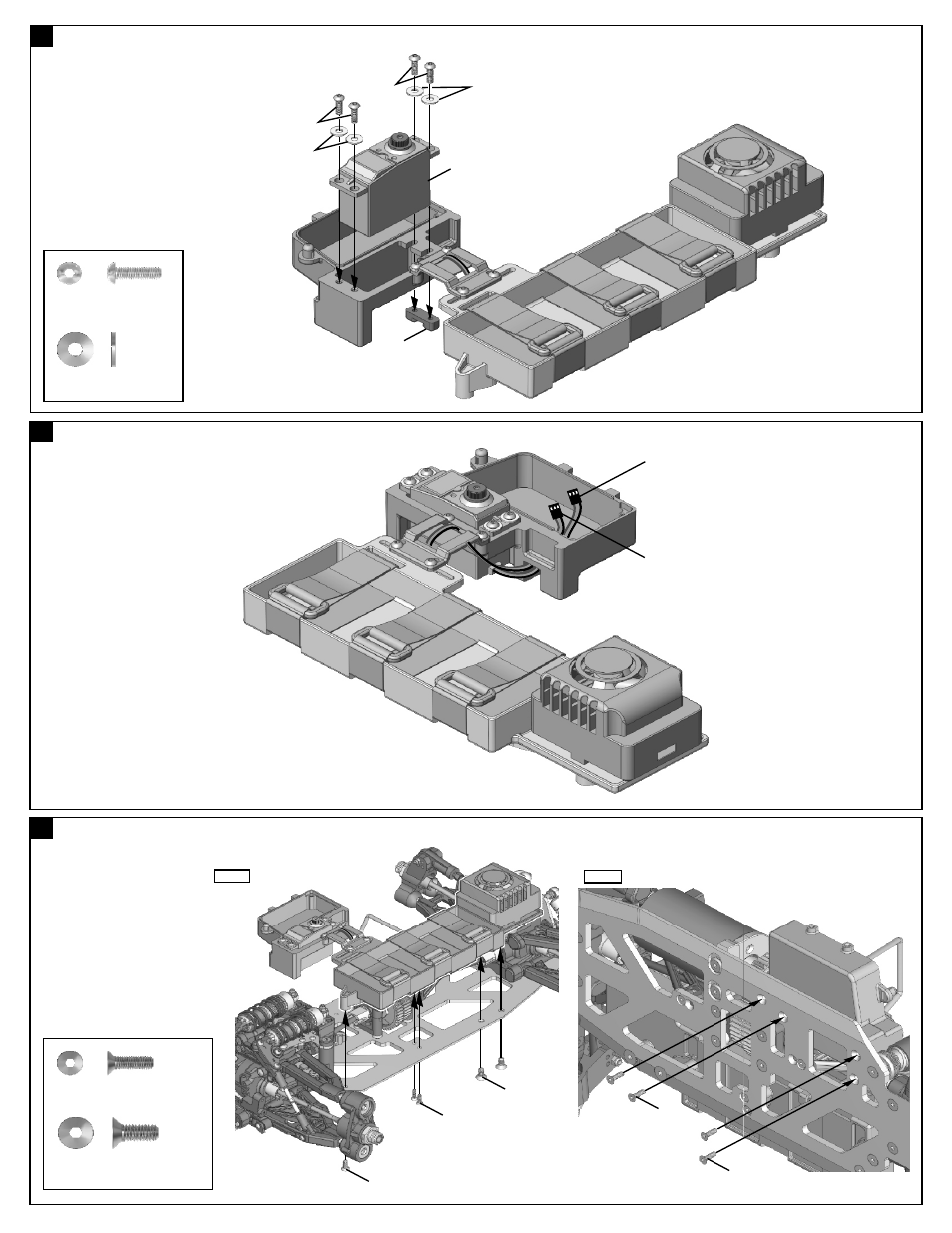

ASSEMBLY OF THE STEERING SERVO ONTO RADIO CASE

94040
3x8x0.8mm
Washer

.....x4

94003
3x10mm
Hex Screw

.....x4

3x10mm

3x8x0.8mm

30662B

3x10mm

3x8x0.8mm

ASSEMBLY OF THE STEERING SERVO WIRE INTO RADIO CASE

Electric Speed Control Wire

Steering Servo Wire

Steering Servo (Not Included)

ASSEMBLY OF THE RADIO CASE ONTO CHASSIS

3x10mm

4x10mm

3x10mm

4x12mm

Step 2

Step 1

94026
4x12mm
Flat Head Hex Screw

.....x1

94019
3x10mm
Flat Head Hex Screw

.....x6

3x10mm
