EXTREMELY IMPORTANT
ADJUST MOTOR AND SPUR GEAR MAINTENANCE
Step 2 Step 1
Step 3
Step 4
PUSH
PUSH
Tighten

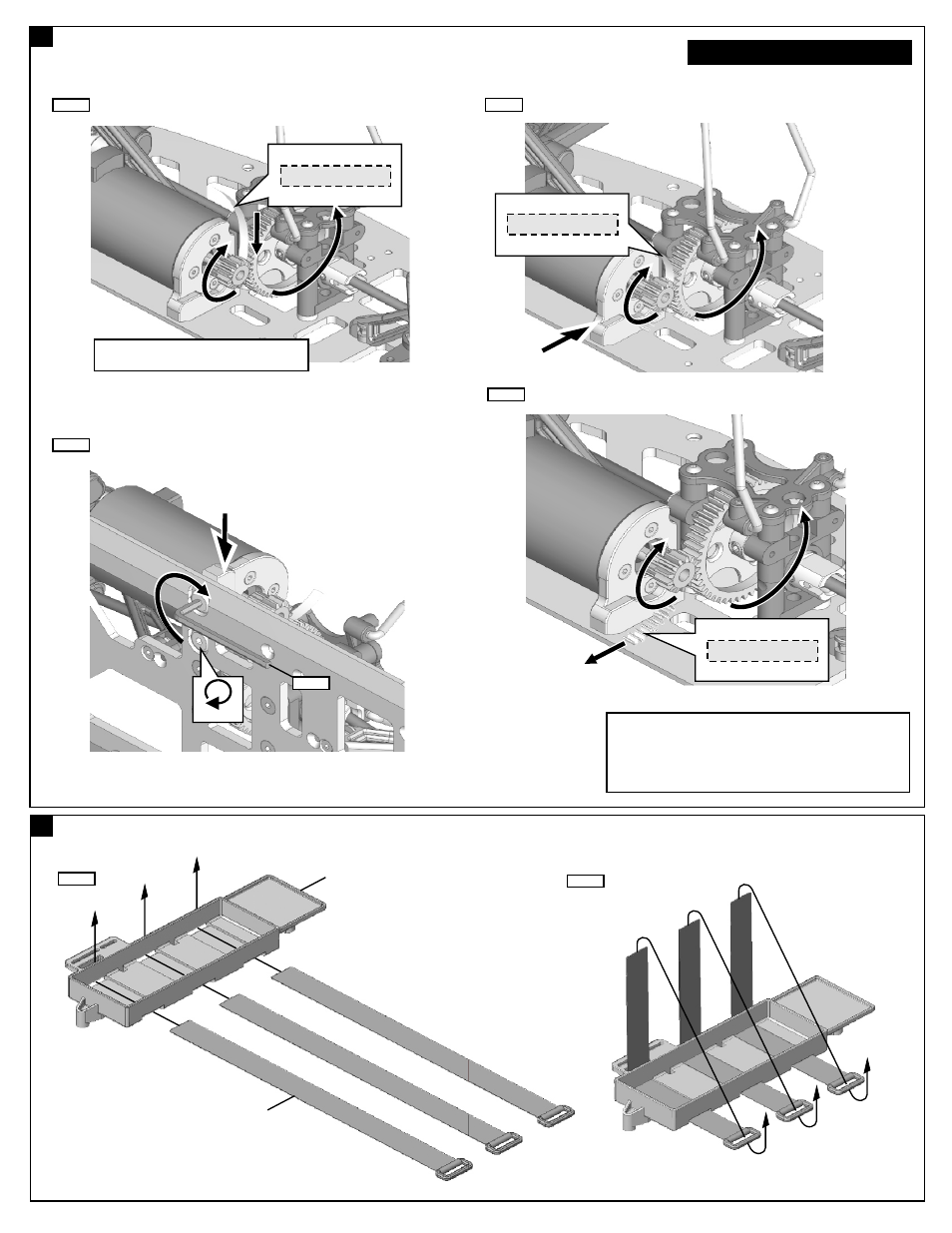

•Adjust the motor mount position to get proper gear mesh.
•To get a perfect gear mesh , place a piece of notebook paper
between the gears and tighten the motor mount screws.
•The spur gear may be damaged if the gear mesh is wrong.
3mm
Insert a notebook paper between spur gear
and motor gear to make correct gear mesh.
PULL OUT
ASSEMBLY OF THE VELCRO STRAP INTO BATTERY CASE
30662
30663
Step 1 Step 2
Notebook Paper
Notebook Paper
Notebook Paper
