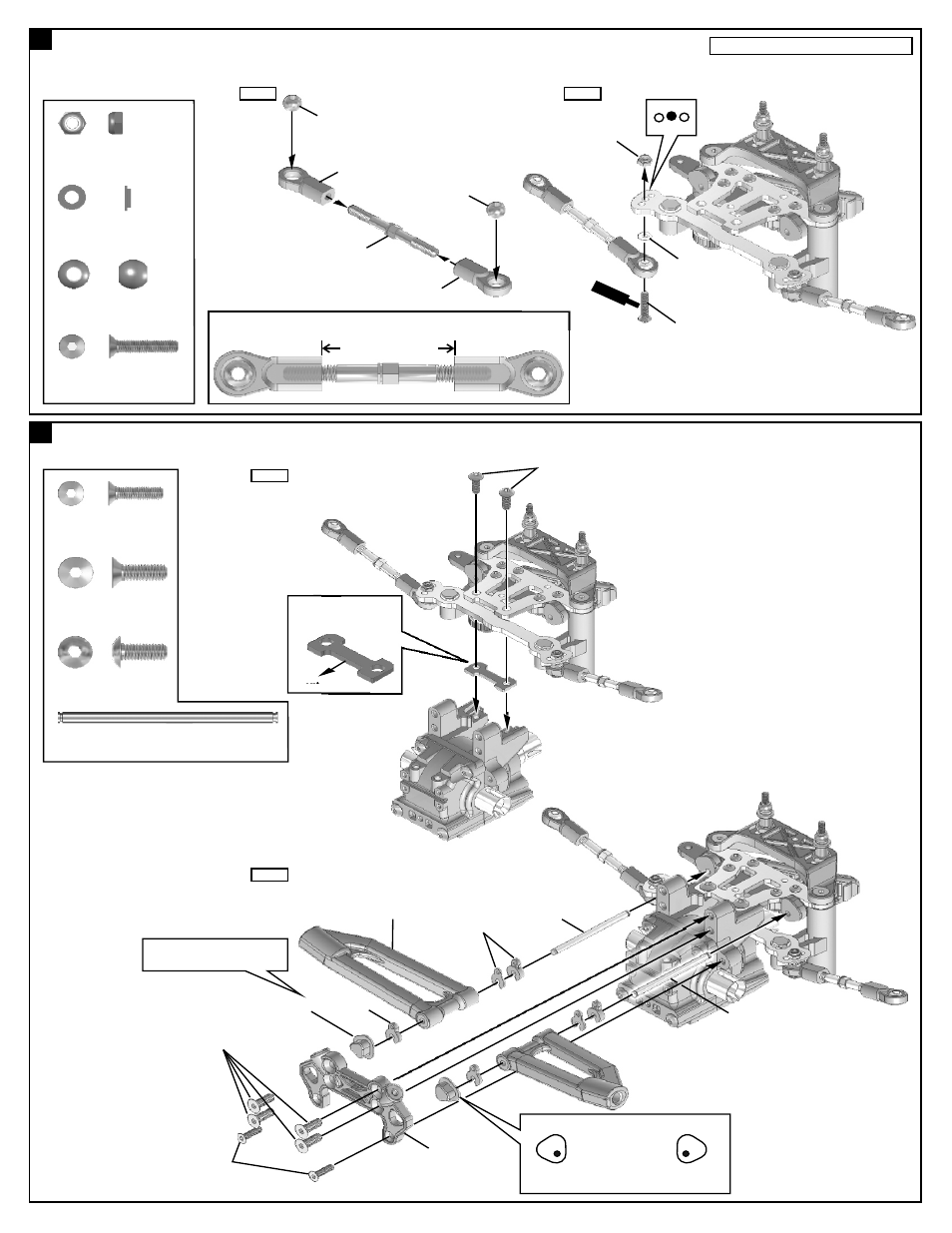

ASSEMBLY OF THE STEERING TIE-ROD

Step 1

Approx. 29.30 mm

1:1

Front

40533
Front Plate Bed

.....x4

40038
7mm Ball

.....x2

36700

40038

3x15mm

4x10mm

40548

36790

.....x2

40548
3mm
Nylon Nut
(Thin Type)

.....x2

40126
3x6mm
Flange Washer

40126

ASSEMBLY OF THE SERVO SAVER AND FRONT UPPER ARMS

.....x2

40525
3x48.1mm
Arm Shaft

40719

3x12mm

4x12mm

40716
(1mm and 3mm)

40716
(2mm)

40719

Step 2

40525

94020
3x12mm
Flat Head
Hex Screw

.....x2

94026
4x12mm
Flat Head
Hex Screw

.....x4

94009
4x10mm
Hex Screw

.....x2

*Insert the upper arm adjust
into shock stay.

40716

Step 1

Assemble both right and left side.

Step 2

•Set the left and right hand side upper arms
adjuster in the same direction.

Left

Right

Cem

ent

94021
3x15mm
Flat Head
Hex Screw
