31

30

29

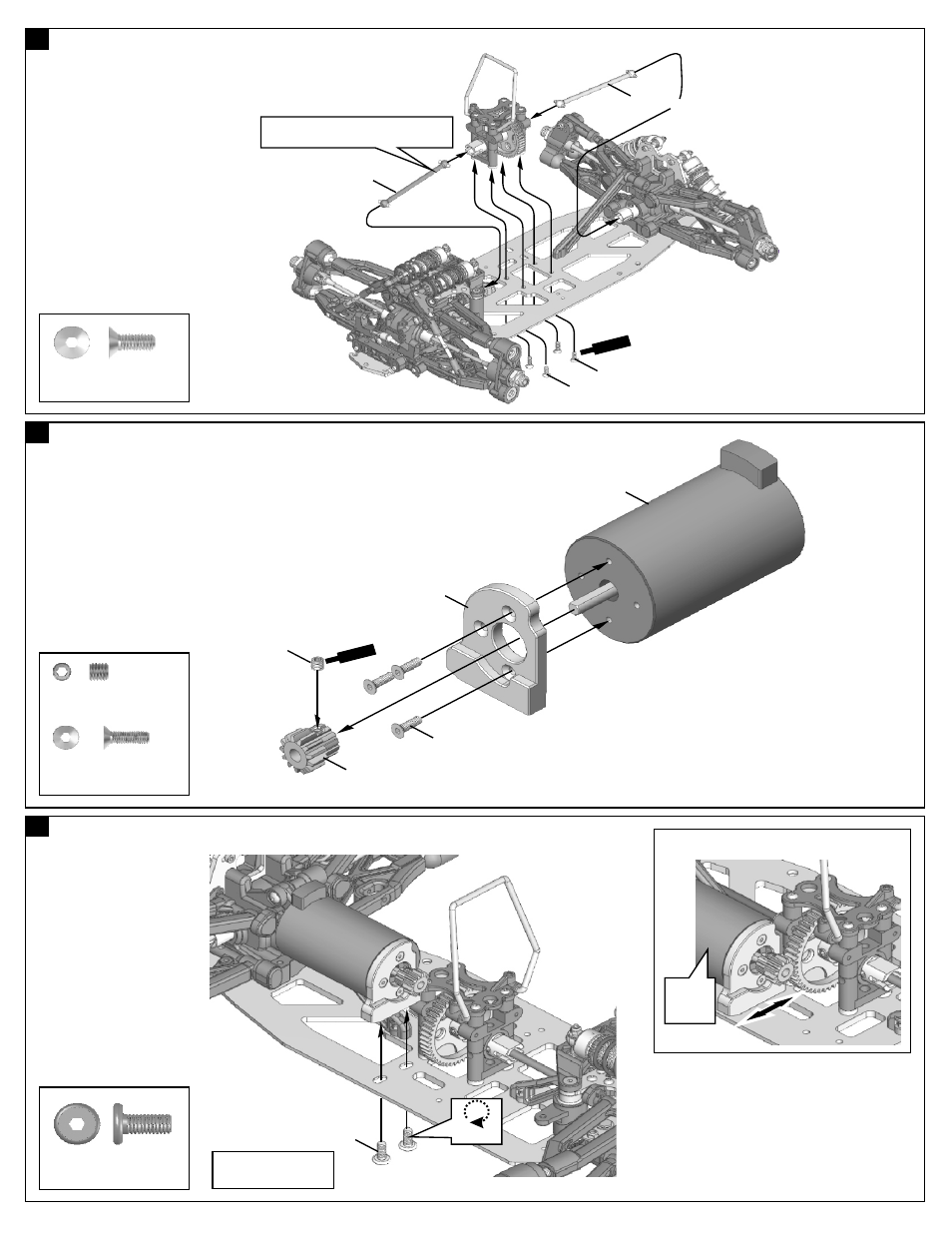

ASSEMBLY OF THE TWO SPEED TRANSMISSION ONTO THE CHASSIS

94026
4x12mm
Flat Head
Hex Screw

.....x4

• Insert drive shaft into cap joint before
center assembly onto chassis.

4x10mm

crew S

Cement

4x10mm

40762(90mm)

40762(97mm)

MOTOR INSTALLATION

.....x3

94019
3x10mm
Flat Head
Hex Screw

ASSEMBLY OF THE MOTOR MOUNT ONTO CHASSIS

10114
5mm
Engine Mount Screw

.....x2

10114

Do Not

Over Tighten

Tighten the 10114 screw
temporary.

Ensure

Free

Movement

Step detail

3x10mm

4x4mm

41202

Motor(Not Included)

30664-13t (stock)
30665-14t
30666-15t
30667-16t
30668-17t

.....x1

94034
4x4mm
Set Screw

Screw

C ment

e
