Page 11: 11 ¡g

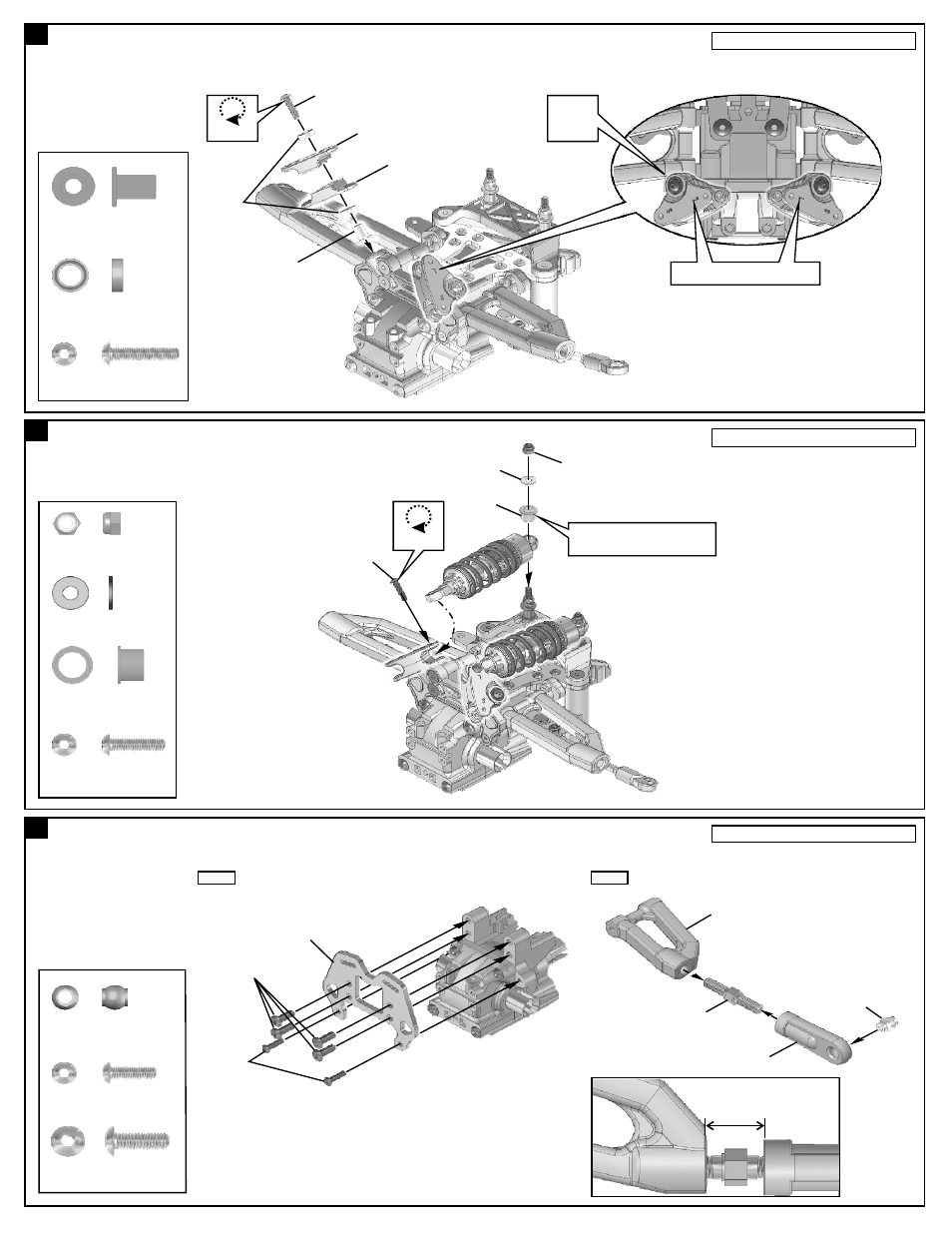

ASSEMBLY OF THE FRONT SHOCK STAY

3x15mm

36742

35958

40719(A)

40719(B)

•Notice"L"make are for inside.

ASSEMBLY OF THE FRONT SHOCKS ONTO SHOCK STAY

94041
3mm
Nylon Nut

94040
3x8mm
Washer

40643
Shock Cap
Washer

.....x2

40643

3x8mm

3mm

3x12mm

ASSEMBLY OF THE REAR SHOCK STAY AND UPPER ARMS

.....x2

36850
7mm
Ball

.....x2

.....x4

35958
5x8x2.5mm
Ball Bearing

36742
Shock Cap
Bushing

94005
3x15mm
Hex Screw

.....x2

94004
3x12mm
Hex Screw

.....x2

94010
4x12mm
Hex Screw

.....x4

•Take the shock cap washer
from the shock plastic tree.

Ensure

Free

Movement

Do Not
Over Tighten

Step 2

¡G

36850

36861

40537

40065

Approx. 12.5 mm

Step 1

Assemble both right and left sides.

3x10mm

4x12mm

40750

94003
3x10mm
Hex Screw

.....x2
