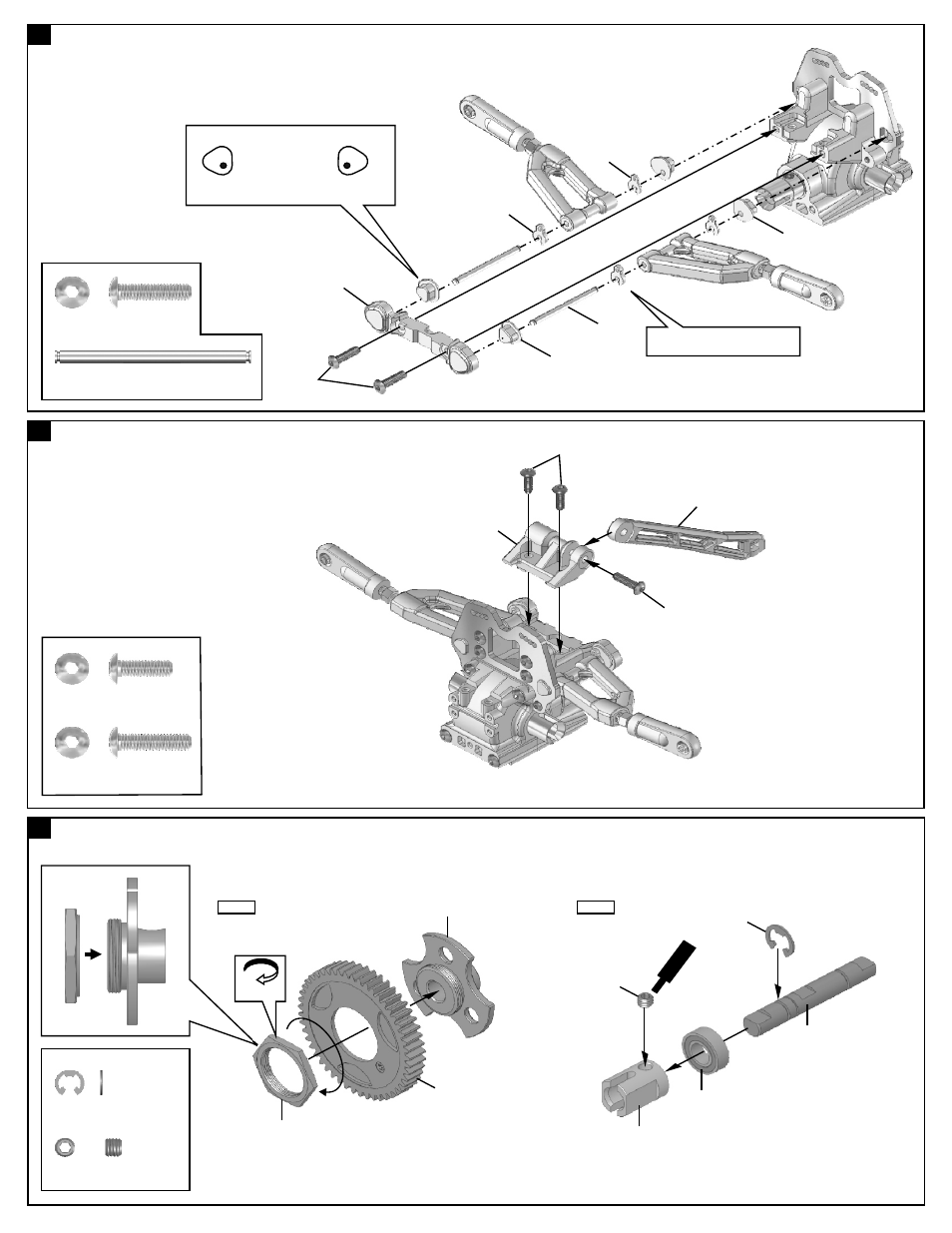

ASSEMBLY OF THE REAR BRACE

15

ASSEMBLY OF THE REAR UPPER ARMS

40716(2mm)

40716(1mm)

40546

*Insert the caster angle adjuster
onto arm shaft.

40719

40719

40719

4x16mm

4x12mm

40539

.....x2

94011
4x16mm
Hex Screw

.....x2

40546 3x42.7mm
Arm Shaft

•Set the left and right hand side upper arms
adjuster in the same direction.

Left

Right

.....x1

94011
4x15mm
Hex Screw

.....x2

94010
4x12mm
Hex Screw

16

40539

4x15mm

ASSEMBLY OF THE ONE SPEED TRANSMISSION

Step 1

Step 2

35247 (47t)
35248 (48t)
35249 (49t) Stock

35219

40760

5X4mm

40120

36053

40759

6mm

94036
5x4mm
Set Screw

.....x1

36743
6mm E-Ring

.....x1

S

cr

ew

C

e

n

t

m

e

Clockwise

Rotate
Direction
