Rane ECS v2 Hardware (ECB 6 and ECM 8) User Manual
Page 12
HW Manual-12
AMX AX 232 to ECB 62 - Euroblock to DB-9 male
PC to ECB 62 - DB-25 female to DB-9 male
PC to ECB 62 - DB-9 female to DB-9 male
Unbalanced source to balanced ECB 62 Input, 1-conductor cable with shield

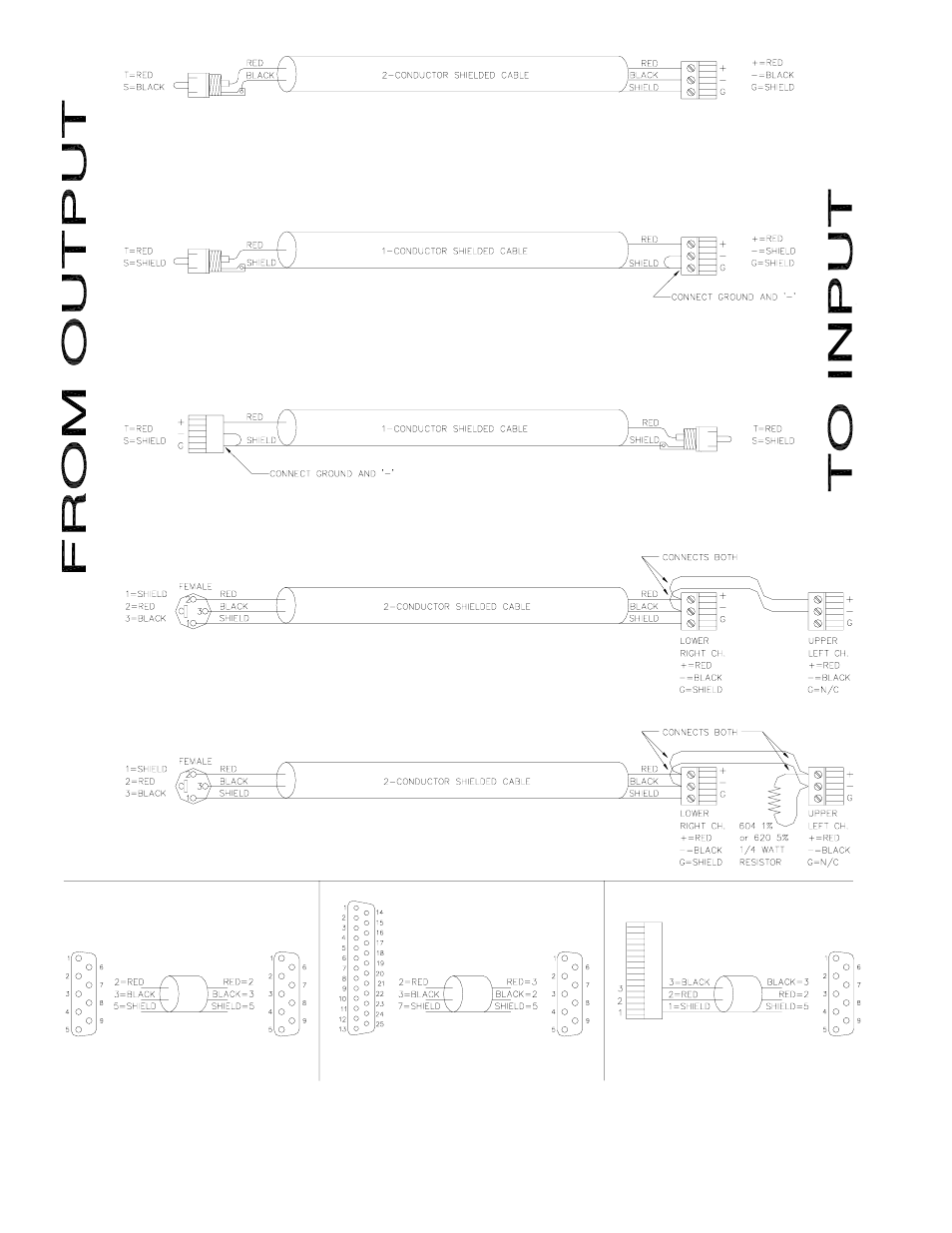

Figure 13. ECS cable wiring
Balanced mono source to a stereo ECB 62 with transformer type termination
Balanced mono source to a stereo ECB 62
Unbalanced source to balanced ECB 62 Input, 2-conductor cable with shield
Balanced ECB 62 Output to an unbalanced unit
