Operating Instructions
Using the supplied USB cables plug the ODM VIS 300 or VCM 410 and RP 460 into the USB
ports on the PC. Turn on the devices and run the IMS. Figure 7 illustrates the functions for each
item on the main screen.

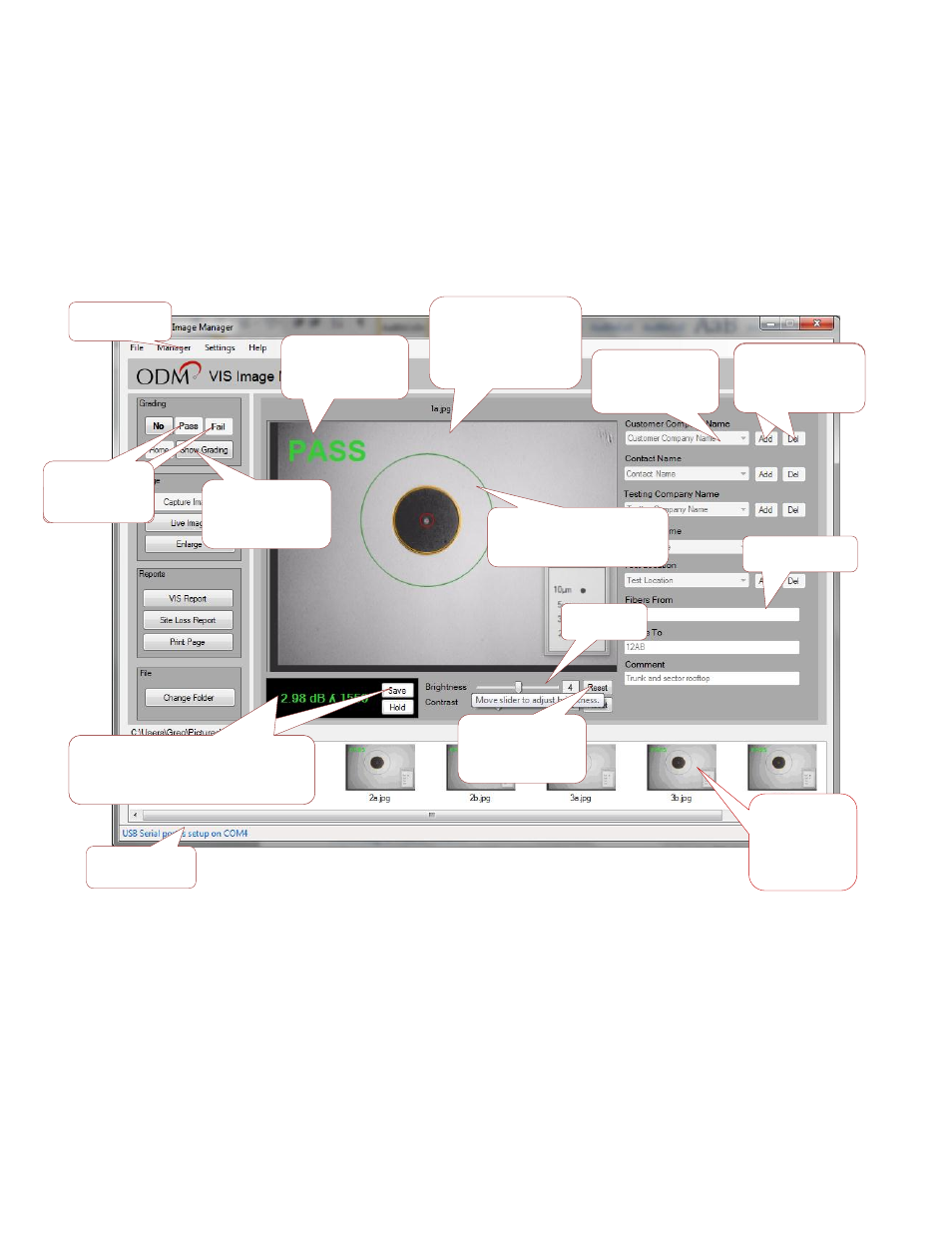

Figure 7: VIS Image Manager Functions
Choosing a Video Source
IMS automatically selects a VIS 300 or VCM 410 inspection scope attached to the PC. You can
change the scope selection by clicking Settings/Video Source/Camera xxx.
Tool Tips
Holding the cursor over a button will display a tool tip discribing its function. Some tips are also
displayed in the status bar at the bottom of the screen.
Add/Delete
Item Buttons
Drop-Down
List
Text Box
Slider
Reset Setting
to Default
Live or Saved
Image Display
Window
Saved
Endface
Images
Hide/Show
Grading
Circles
Status Bar
PASS/FAIL
Indicator
Pass/Fail
Buttons
Optical Power Meter RP-460
Control and Measurement
Optical Power Meter RP-460
Control and Measurement
Sample Obstruction
Overlay Circles
Add/Delete
Item Buttons
Menu Bar
