Optical Design Manufacturing VIS Image Manager Software Manual
Page 13
v1.3.6
Figure 14: Grading Circles and Pass or Fail Displayed

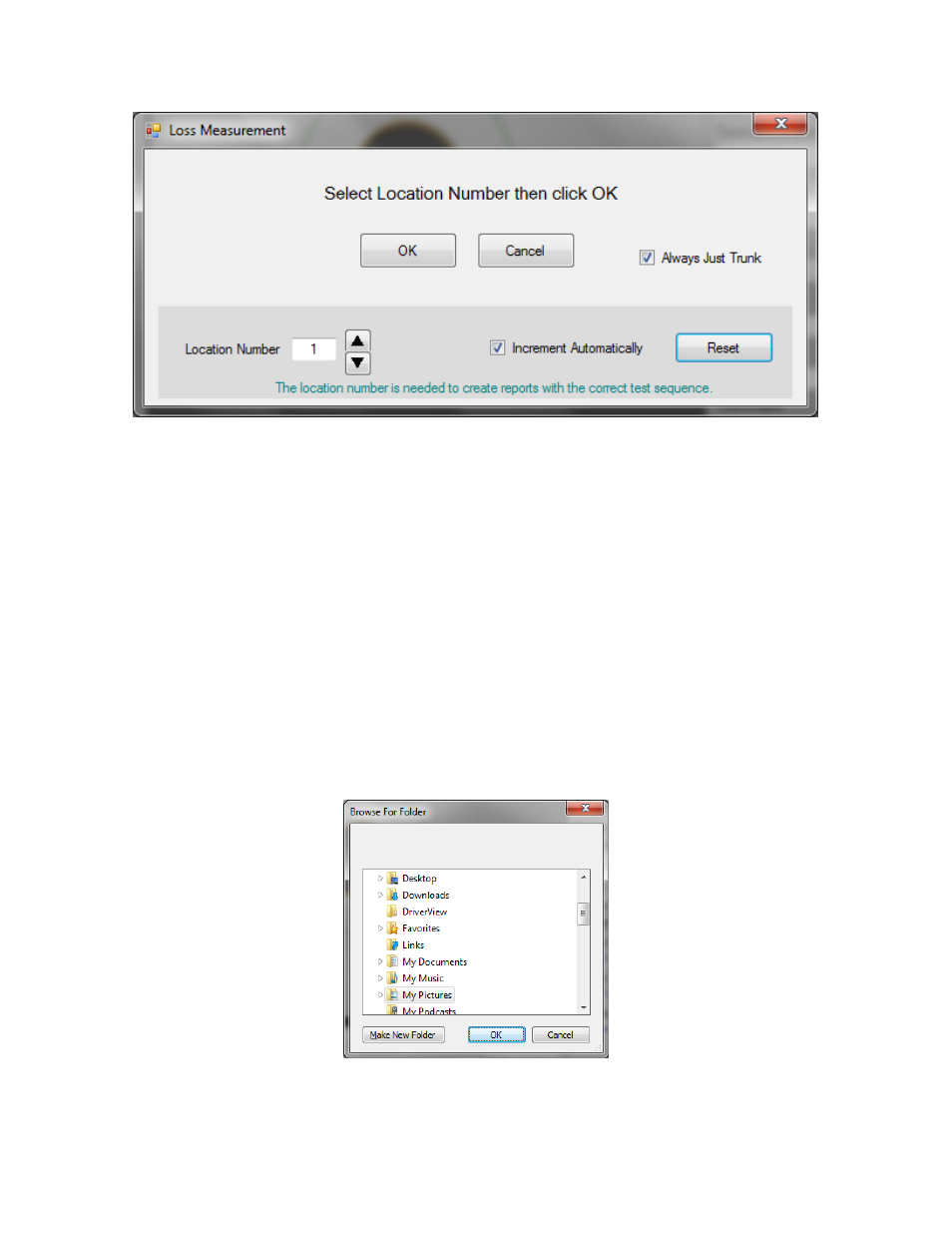

Location Number: Indicates the location you are making the measurement, for example location
1 of 12. It is important that you enter the correct location number, if you do not your reports will
not be accurate.
Increment Automatically: Check this if you want the location number to increment by one every
time you make a measurement and save it to an image file.
Reset: Resets the Location Number to 1.
Always Just Trunk: Check this if your measurements are always trunk and do not include the top
sector.
Change Folder
To change the folder where images are saved or create a new folder, click Change Folder.
Figure 15: Change Folder Window
