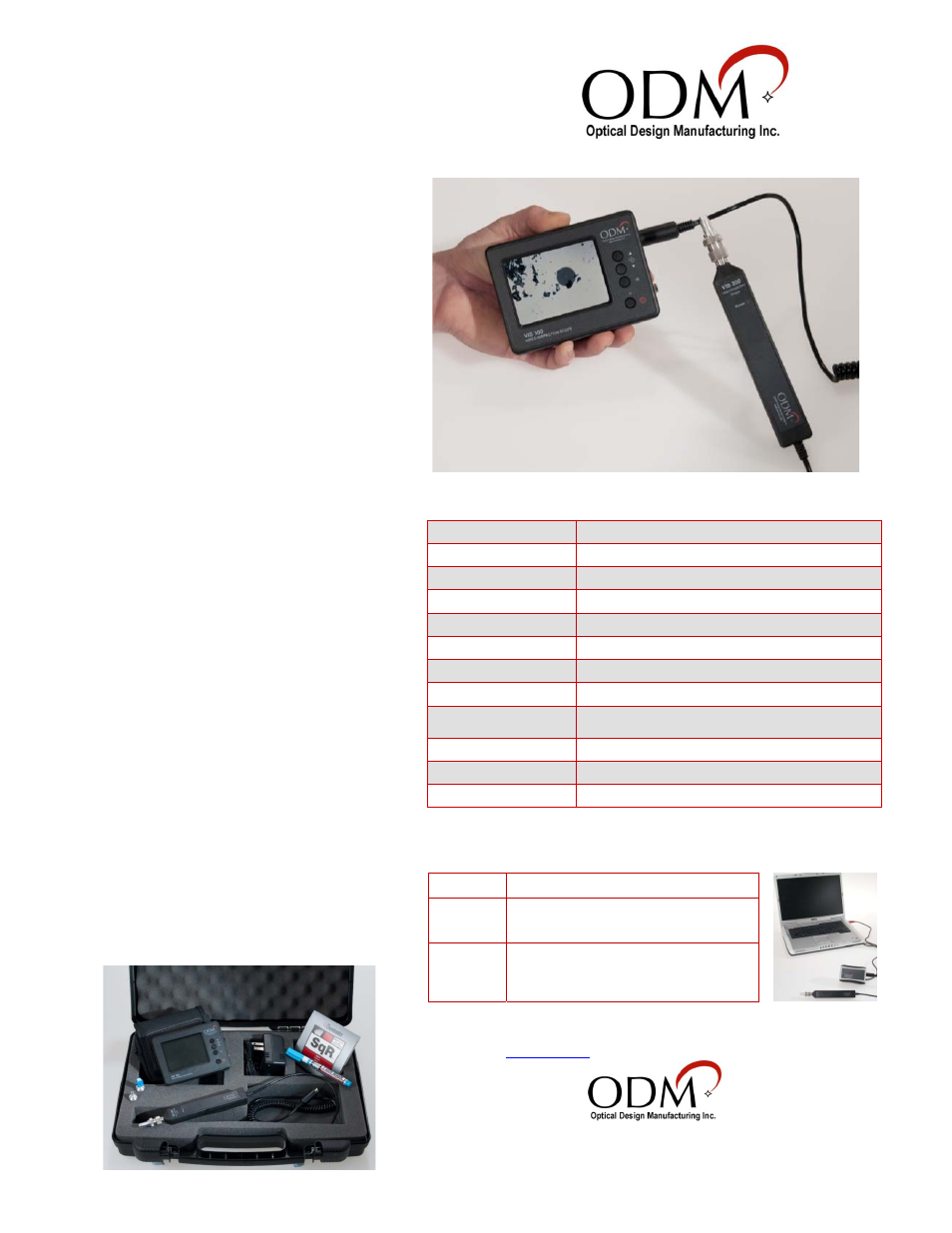

Chemtronics VIS 300 Video Inspection Scope VIS 300B Kit - Manual

VIS 300, A- 01-08
Video Inspection Scope
VIS 300
____________________________________________________________________________________
Features
♦ Unique external focus mechanism eliminates
need for “focus wheel”
♦ ¾ micron scratch resolution
♦ Thin (less than 1” dia.) ergonomic probe design
♦ Quick change adapter tips for all connector
styles
♦ 3.5 inch LCD Display
♦ FOV 630µm X 440µm
♦ Advanced LiIon Battery & smart technology AC
charger system
♦ Rugged and compact size
♦ Optional VCM 410 Video Capture Module for
digital archiving of the image
Description
The VIS 300 advances field connector inspection by a
unique focus system. This development virtually eliminates
the need to place the users hand in the same position each
time for effective focus control. To inspect the backplane
connector the user simply inserts the probe into the
connector adapter. To focus simply turn the entire probe ¼
to ½ turns for complete focus range. No longer is it
necessary for the user to keep one hand on the focus
wheel.
The VIS 300 includes a bright 3.5 inch LCD display
and precision optics to provide an unmatched FOV (field of
view) of 630µm by 440µm.
Extended use Lithium Ion batteries provide 8-10 hours
of continuous use. When charging is necessary the
included “smart AC charger” charges the battery in 3 hours
and allows the unit to continue to operate.
The VIS 300 comes with two user selected adapter
tips. Optional tips for most commonly used connectors are
available. The VIS 300 monitor is supplied in a padded
nylon case. Both the probe and monitor are transported in
a hard carry case that also includes the charger extra tips
and cleaning aids.
For digital archiving of the connector polish, ODM
offers the VCM 410 Video Capture Module. This accessory
allows quick storage of the image to any Windows based
computer.
Specifications
Ordering Information
Model Includes
VIS 300 MP
Monitor, monitor soft case, probe, two user selected
adapter tips, AC charger & basic cleaning kit
VCM 410 Video Capture Module, software and instructions
Please visit www.odm-inc.com for more information and a list of local stocking distributors.
143 Lake St, Suite 1E, Laconia, NH USA 03246 ◘ 603-524-8350
Fax - 603-524-8332 ◘ www.odm-inc.com
FOV (Field of View) FOV 630µm X 440µm
Resolution ¾ micron
Light Source Blue LED
Lighting Technique Coaxial
Display screen size 3.5 inch diagonal
Battery Life 8 to 10 hours continuous
Battery charge time Three hours
Size
Probe - 7”x 1”x .75” (180mm x 25mm x 19mm)
Monitor - 4.75” x 3.5” x 1.25 (120mm x 89mm x 32mm)
Weight – (monitor, probe & case) 1.2lb ( .54kg)
Operating Temp. 0º to 50 º C
Storage Temp. - 40 º to 70 º C
