VIS 400-HDP
Features
Ð Automatic PASS/FAIL analysis equipped
to meet IEC 61300-3-35, Ed. 1
Ð USB or WiFi streaming:
easily connect with laptops,
smartphones, and tablets
Ð Free ODM InSpec™ app for PC,
Android, and Apple devices
Ð Unique external focus system and
enhanced magnification produce
crystal clear high-definition images
Ð Voice command support for
hands-free imaging
FIBER INSPECTION SCOPE WITH USB AND WIFI
Description

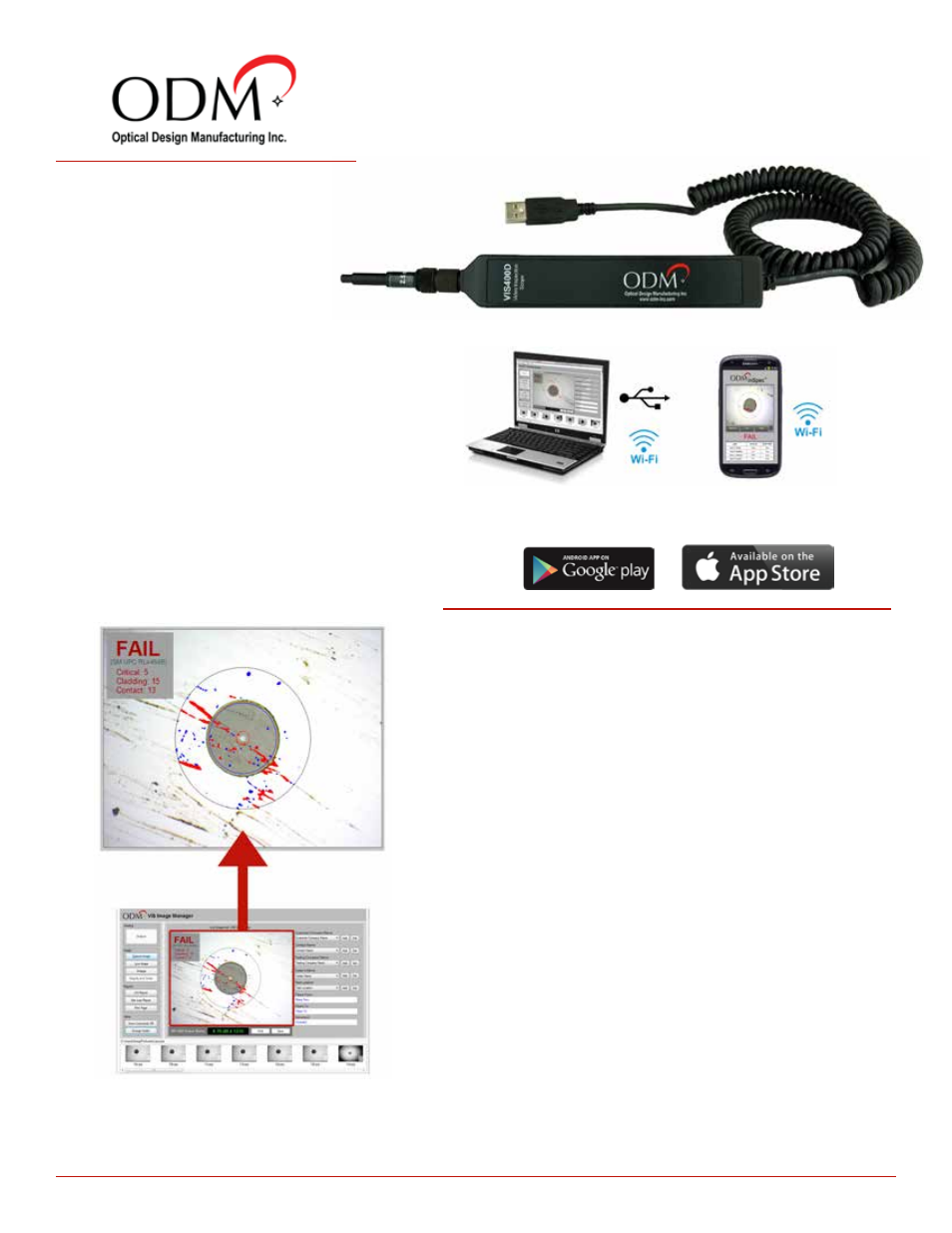

The VIS 400-HDP inspection scope allows test technicians to inspect and
grade fiber endfaces by offering the most detailed image possible. When
used in conjunction with ODM’s proprietary InSpec™ software the VIS 400
ensures compliance with the IEC 61300-3-35 standard.
Using the simple Insert Focus Analyze (IFA) method, ODM’s software
grades fiber ends based on the four critical zones outlined in the industry
standard. Tapping or mousing over debris allows technicians to see details
on each defect. The VIS 400’s high-definition camera allows the software
to distinguish defects as small as one micron, eliminating guesswork
when determining endface acceptability.
The VIS 400 provides a high-definition image with a 860µm x 640µm field
of view, allowing technicians to see debris outside IEC specified zones.
Debris on the periphery of the fiber end should be cleaned to avoid
migration during connector mating. The VIS 400 allows technicians to
ensure connectors are completely clean for the most reliable optical link.
With ODM’s optional Portable Access Device (PA 250), technicians can
stream live images of fiber ends from the VIS 400 to the InSpec™ app
on any Wi-Fi enabled PC, smartphone, or tablet. The InSpec™ app allows
users to inspect, grade, and archive images on their wireless device.
The VIS 400-HDP kit contains connector cleaning tools for up to 500
cleanings and adapter tips for all the most popular connectors (LC, SC,
1.25mm and 2.5mm Universal), all packaged in a durable carry case.
InSpec™ for Windows included. App for
Android & Apple devices available online.
