Site loss report – Chemtronics VIS 400-HDP Fiber Inspection Scope User Manual
Page 17
Optical Design Manufacturing VIS Image Manager Software Manual
Page 17
v1.3.6

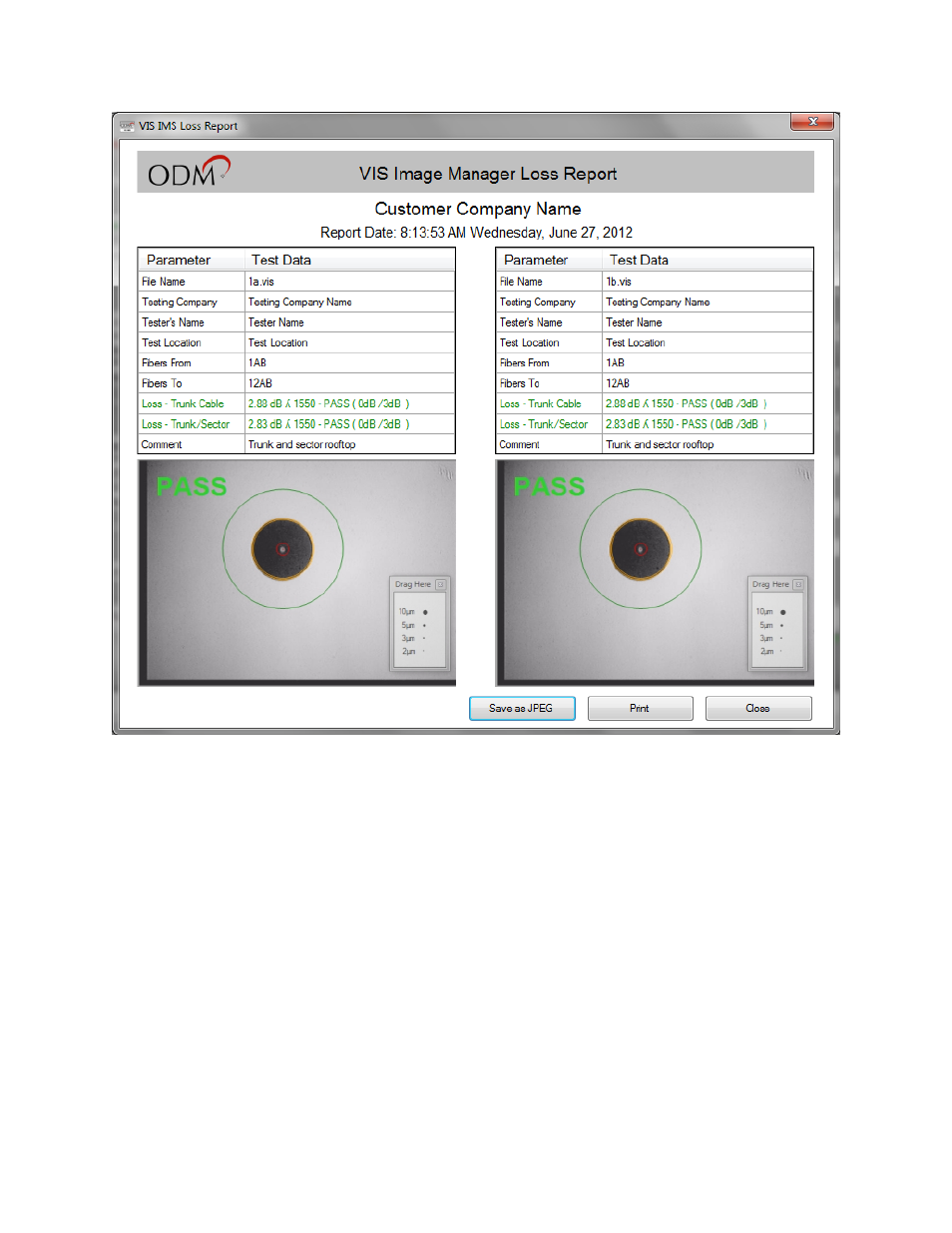

Figure 19: Loss Report Screen
Site Loss Report
If you have Microsoft Excel installed on your computer, clicking on the Site Loss Report
button will create a site loss report of all the optical power measurements made that are
associated with the endface images presently displayed in the selected folder.
