Optical Design Manufacturing VIS Image Manager Software Manual
Page 12
v1.3.6

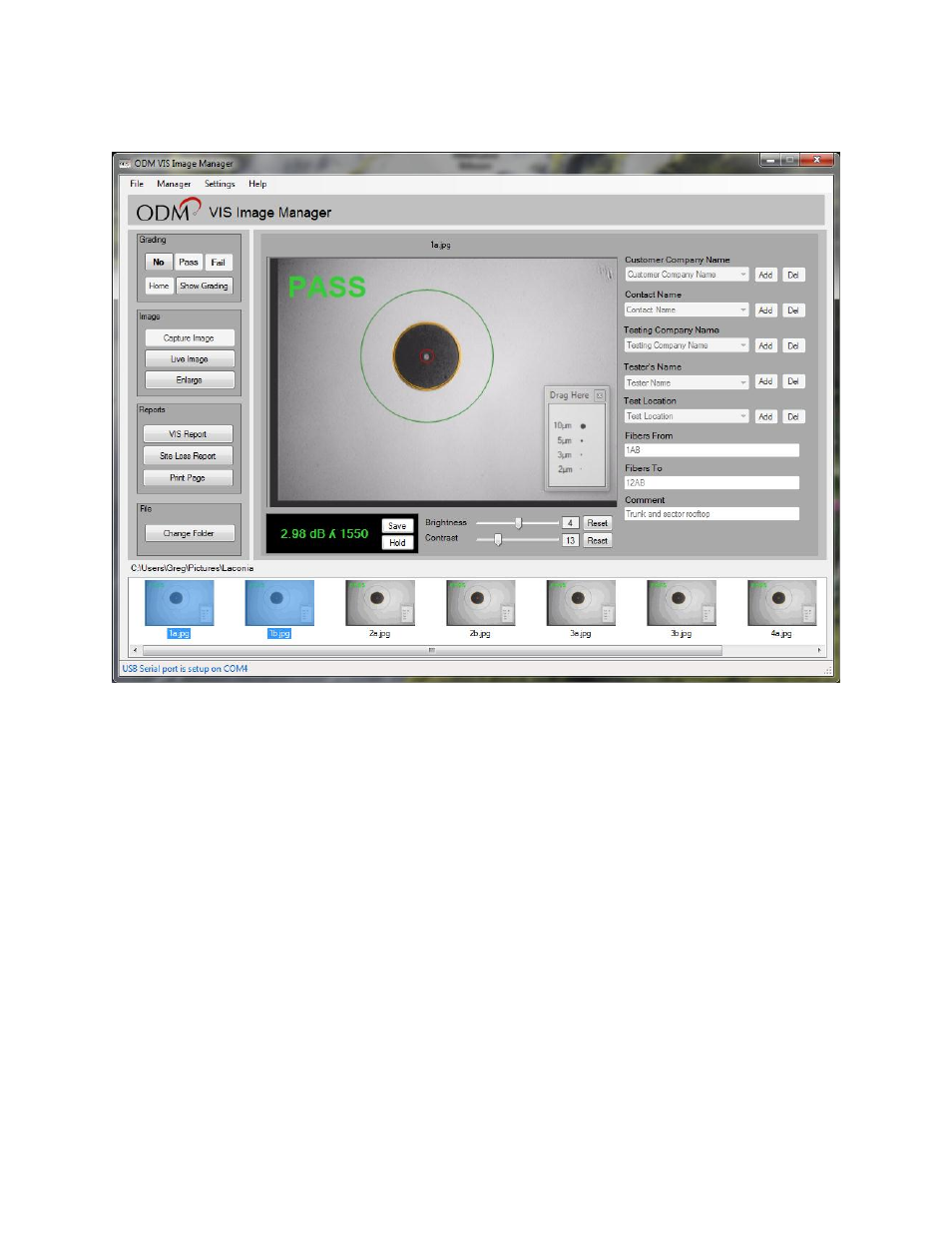

Figure 13: Two Fiber End Images Selected to Save Power Measurements to those Images
Loss Measurement Prompt
The Loss Measurement prompt assists you to save the power meter measurement for reports.
When you choose No, in Figure 14, you are indicating the measurement is just for the trunk
portion of the cable. If you choose Yes, you are indicating that the measurement includes the top
sector jumper.
