Optical Design Manufacturing VIS Image Manager Software Manual
Page 11
v1.3.6
Capture Image

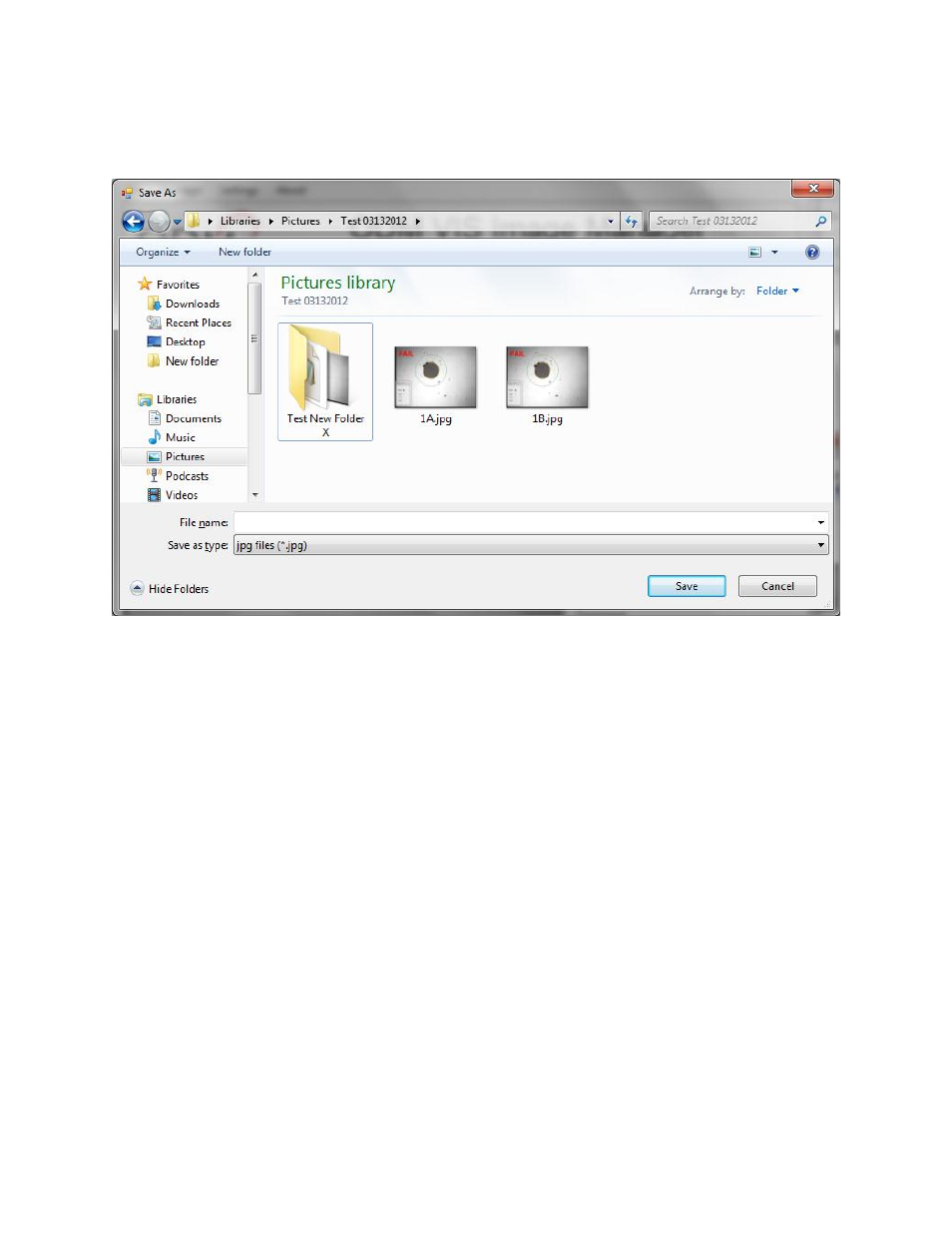

Figure 12: Capture Image File Screen
When a live image is displayed in the image window, the Capture Image button will be enabled.
Clicking on Capture Image will cause the Windows Save File window to open. Here you can
create a new folder to save the image or save it in an existing folder.
When an image is saved, the information on the left side of the main screen, e.g. Customer
Company Name, is saved as well.
Clicking on any of the saved images will load that image and the information about the image
into the image manager. If you want to return to a live image, click on the Live Image button.
OPM Hold/Read
Clicking the OPM Read/Hold button will freeze or resume reading of the ODM RP-460 power
meter.
OPM Save
To save the power meter measurement, first select one or two fiber end images and click OPM
Save. You will be prompted by the screen in Figure 14. (Hint: Press and hold the Shift key and
click the image if you want to select two images.)
