Chemtronics VIS 400-HDP Fiber Inspection Scope - Manual (Page 10)

Optical Design Manufacturing VIS Image Manager Software Manual
Page 10
v1.3.6
The grading circles can be resized by first clicking the fiber image and then using the mouse
wheel or pressing and holding the CTRL key and pressing the Up or Down arrows on the
keyboard.

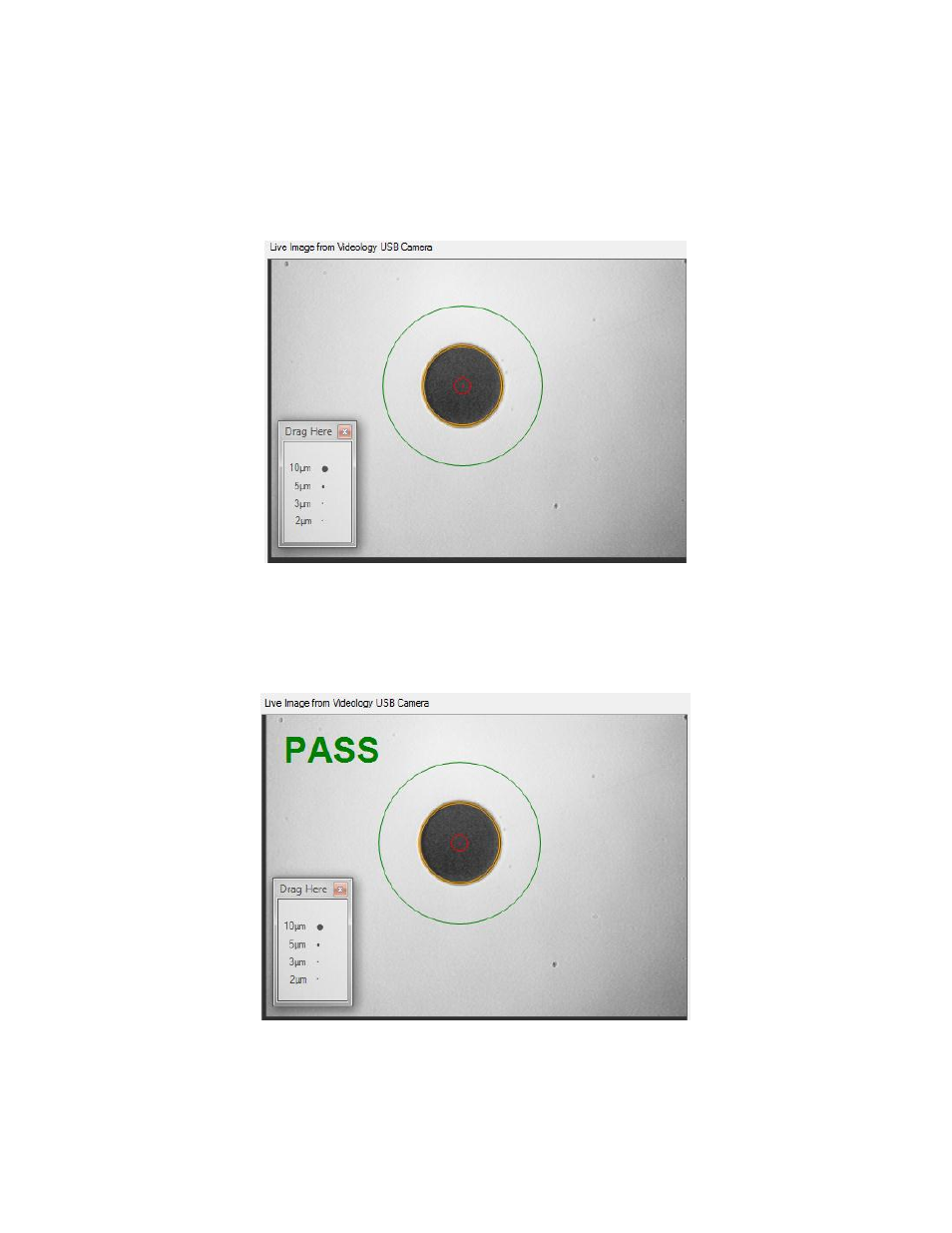

Figure 10: Grading Circles Displayed
Figure 11: Grading Circles and Pass or Fail Displayed
