2-20
Installation and Upgrade Guide for Cisco Unified MeetingPlace Audio Server 6.x
OL-13417-01
Chapter 2 Installing the Cisco Unified MeetingPlace 8100 Series Hardware
About Telephony Configurations for E1 and T1 PRI Cisco Unified MeetingPlace Systems

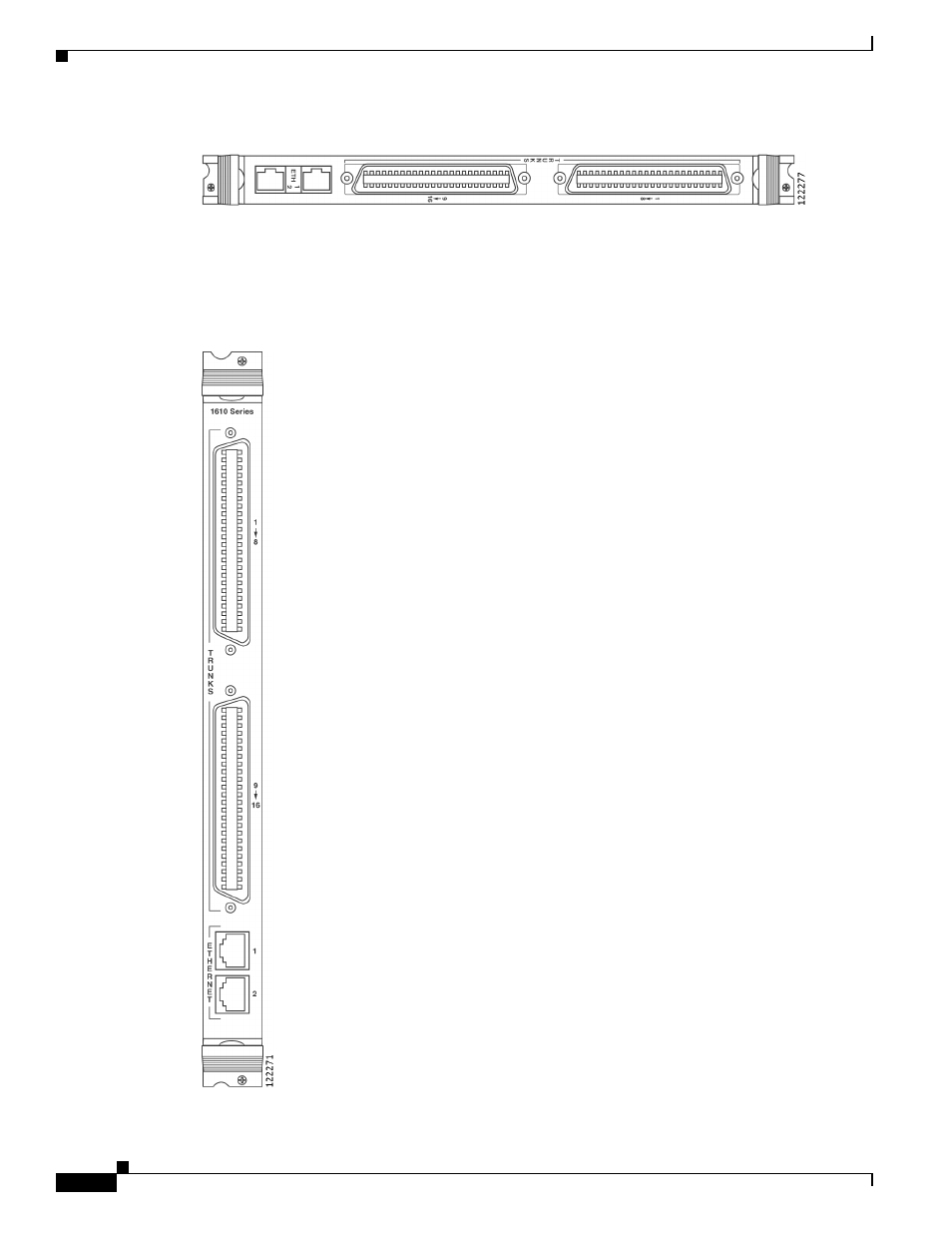

Figure 2-15 Multi Access Blade Transition Module (Cisco Unified MeetingPlace 8106)
For the Cisco Unified MeetingPlace 8112, the connector on the top of the Multi Access Blade transition
module is for spans 1 to 8 and the connector on the bottom of the Multi Access Blade transition module
is for spans 9 to 16. Place this first trunk card cable assembly into the connector on the top. See
Figure 2-16 .
Figure 2-16 Multi Access Blade Transition Module (Cisco Unified MeetingPlace 8112)
