Cisco 10720 Internet Router Setup Checklist
78-13101-02
Cisco 10720 Internet Router Setup Checklist

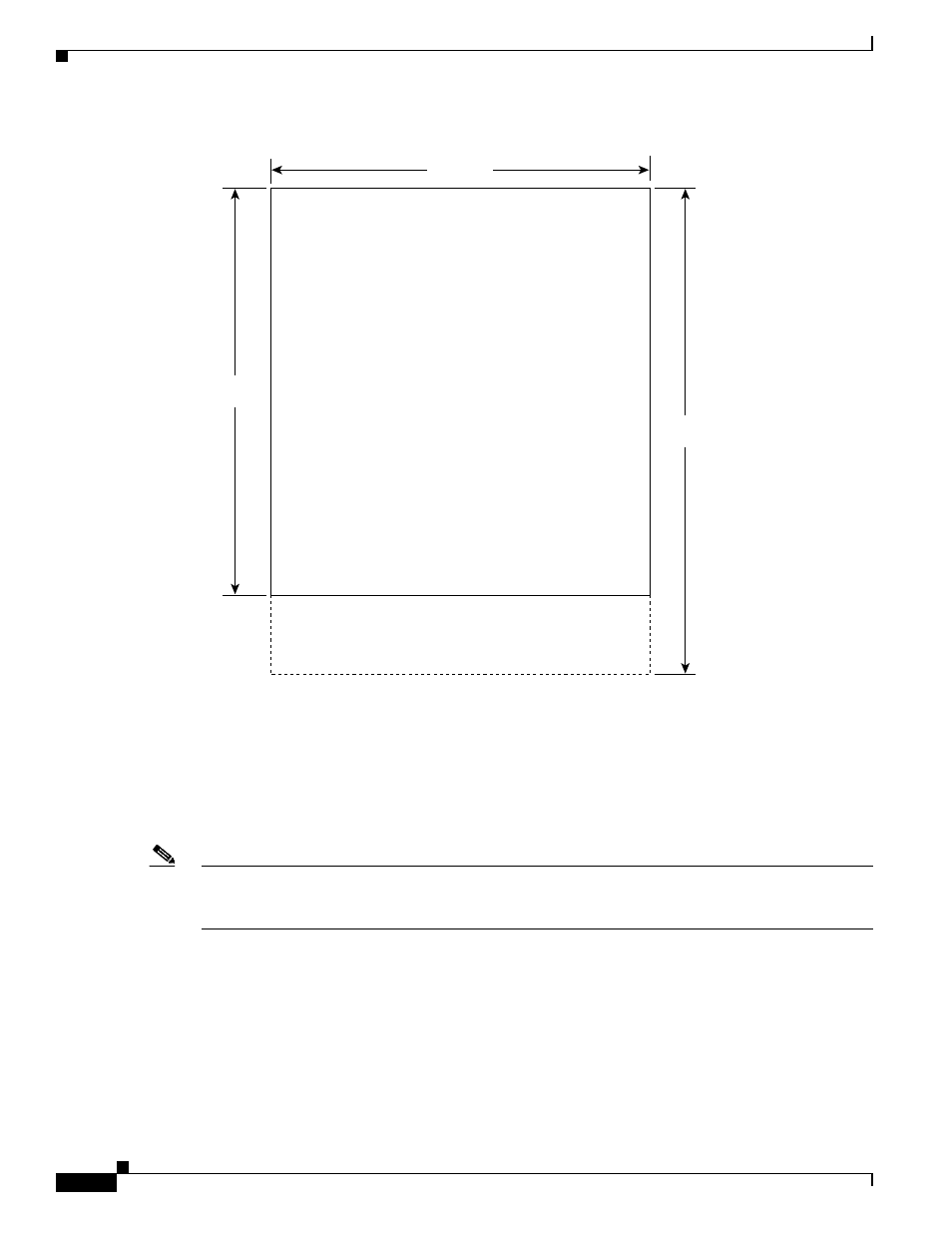

Figure 3 Cisco 10720 Internet Router Outer Dimensions (Top View
Cisco 10720 Internet Router Setup Checklist
Before you install your Cisco 10720 Internet Router, verify the following:
Note The “Environmental Safety Guidelines” section in Chapter 2 of the Cisco 10720 Internet Router
Installation and Configuration Guide provides important information on environmental considerations
and requirements.
Ensure that you have considered the following before you install the router:
• Fan assembly exhaust vents should not be blocked.
• The front of router should not be blocked. Air flow intake is located on the front of the router.
• 24 inches (61 cm) of clearance in front of the Cisco 10720 Internet Router may be needed for
working with line cards, power supplies, attaching network interface cards (NICs) or other
components.
• Location is temperature-controlled, air-conditioned and dust-free.
57878
18.25 in.
(46.36 cm)
21.80 in.
(55.37 cm)
17.50 in.
(44.45 cm)
Chassis
Cable management bracket
Height = 2 RU
