Wall Mounting the Router
78-13101-02
Rack Mounting the Router

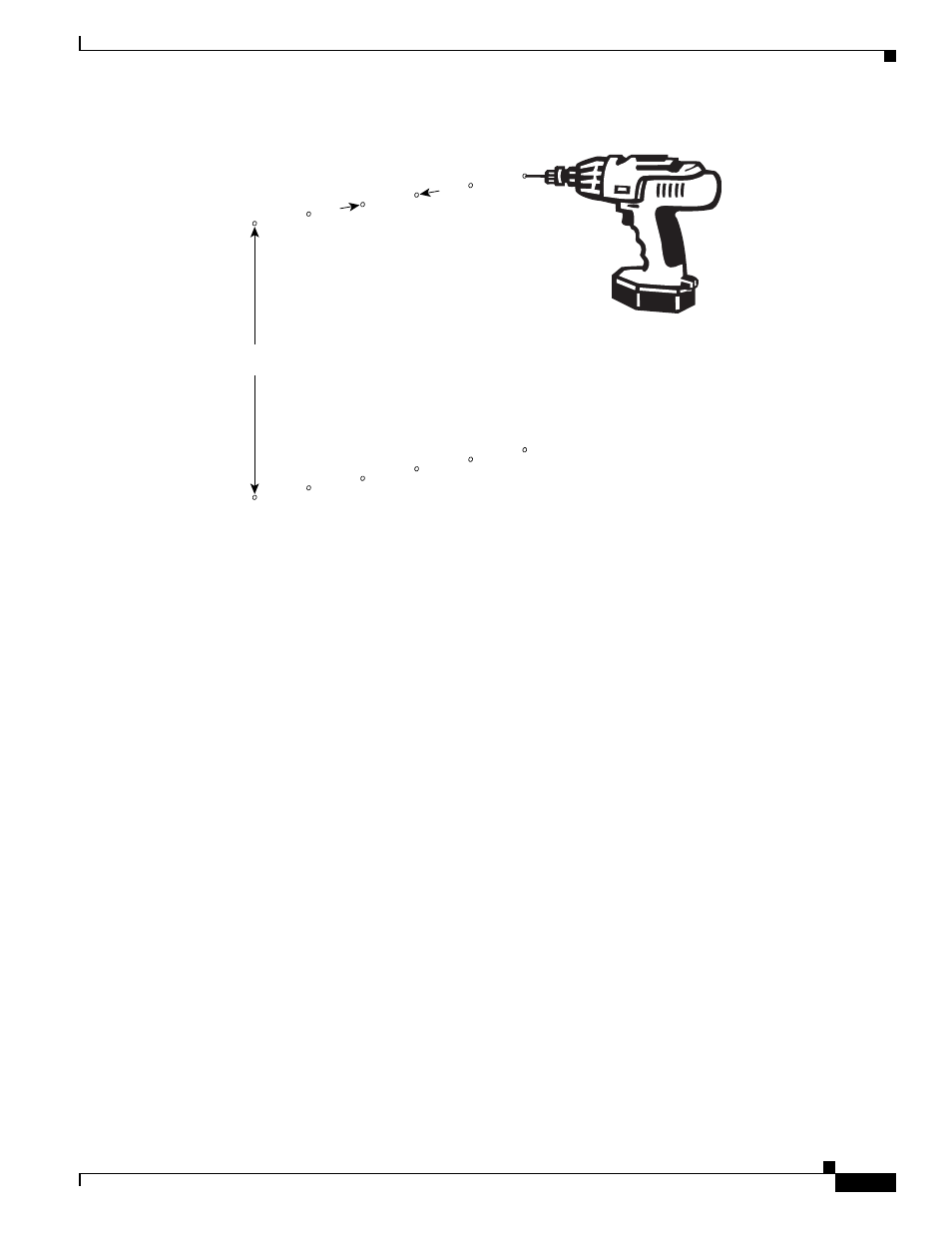

Figure 13 Predrilled 12 holes
Step 3 Attach an ESD-preventive wrist strap to your wrist and to the router chassis; or to a bare metal surface.
(See the
“Preventing Electrostatic Discharge” section on page 4 .)
Step 4 Attach the wall mount brackets to the side of the chassis using five screws on each side. (See Figure 14 .)
57851
3.23 in.
(8.2 cm)
18.35 in.
(46.6 cm)
