Wall Mounting the Router
78-13101-02
Rack Mounting the Router

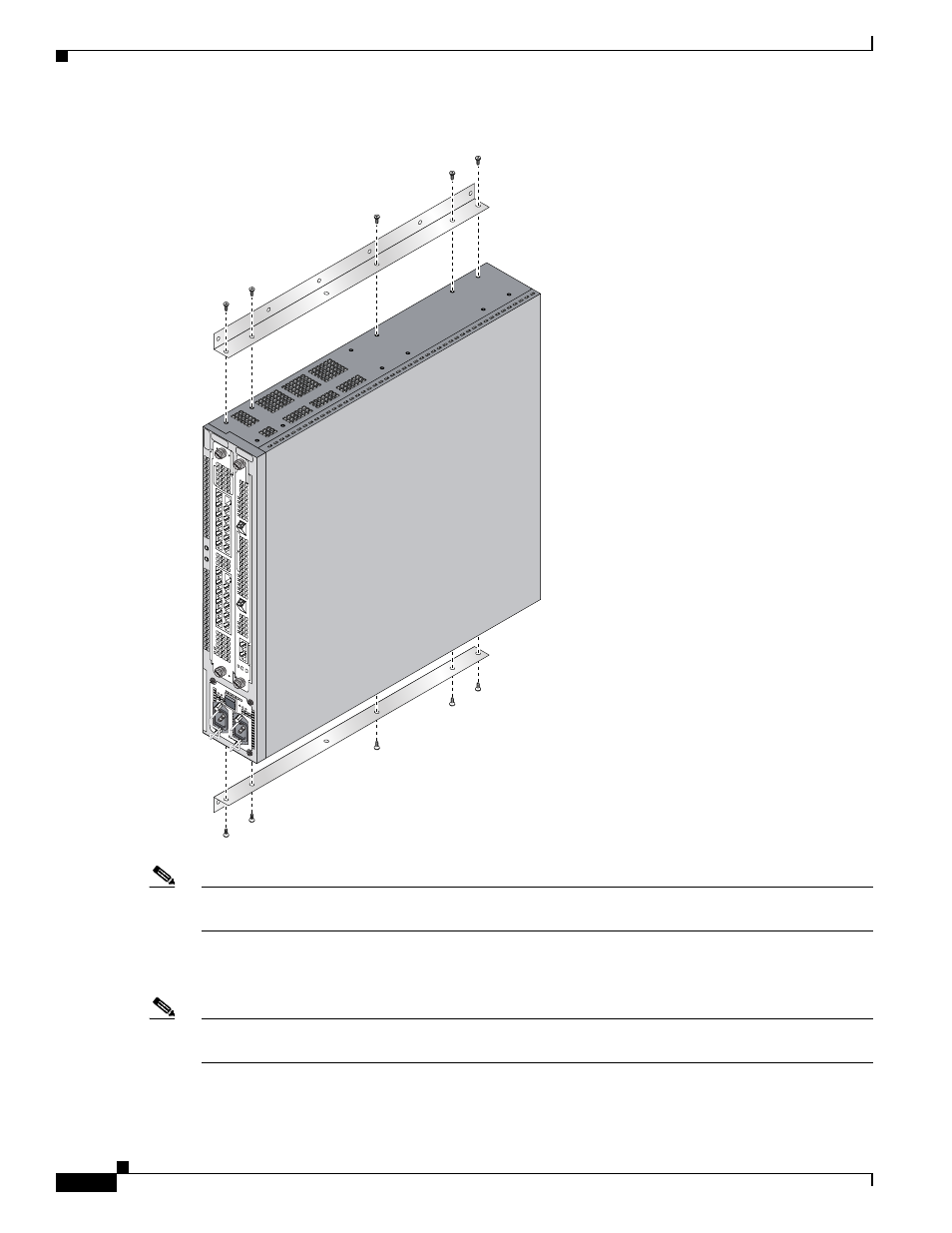

Figure 14 Attaching Wall Mount Brackets to Router Chassis
Note The Cisco 10720 Internet Router must be mounted with the right side down (horizontal) when it is
mounted on the wall. The right side of the router is the side where the power supply is located.
Step 5 Match the holes in the wall mount brackets to the predrilled holes on the mounting surface and attach
the brackets using the twelve 1 1/4-inch screws to the wall. (See
Figure 15 .)
Note When mounted on the wall, make sure the power receptacles are at the bottom of the router. (See
Figure 15 .)
IN
O
K D C
O T F
IN
O
K D C
O T F
57853
