SRAM Write Cycle
Parameter
Description
25 ns
35 ns
45 ns
Unit
Min
Max
Min
Max
Min
Max
Cypress
Parameter
Alt
t
WC
t
AVAV
Write Cycle Time
25
35
45
ns
t
PWE
t
WLWH,
t
WLEH
Write Pulse Width
20
25
30
ns
t
SCE
t
ELWH,
t
ELEH
Chip Enable To End of Write
20
25
30
ns
t
SD
t
DVWH,
t
DVEH
Data Setup to End of Write
10
12
15
ns
t
HD
t
WHDX,
t
EHDX
Data Hold After End of Write
0
0
0
ns
t
AW
t
AVWH,
t
AVEH
Address Setup to End of Write
20
25
30
ns
t
SA
t
AVWL,
t
AVEL
Address Setup to Start of Write
0
0
0
ns
t
HA
t
WHAX,
t
EHAX
Address Hold After End of Write
0
0
0
ns
t
HZWE
t
WLQZ
Write Enable to Output Disable
10
13
15
ns
t
LZWE
[6]
t
WHQX
Output Active After End of Write
5
5
5
ns

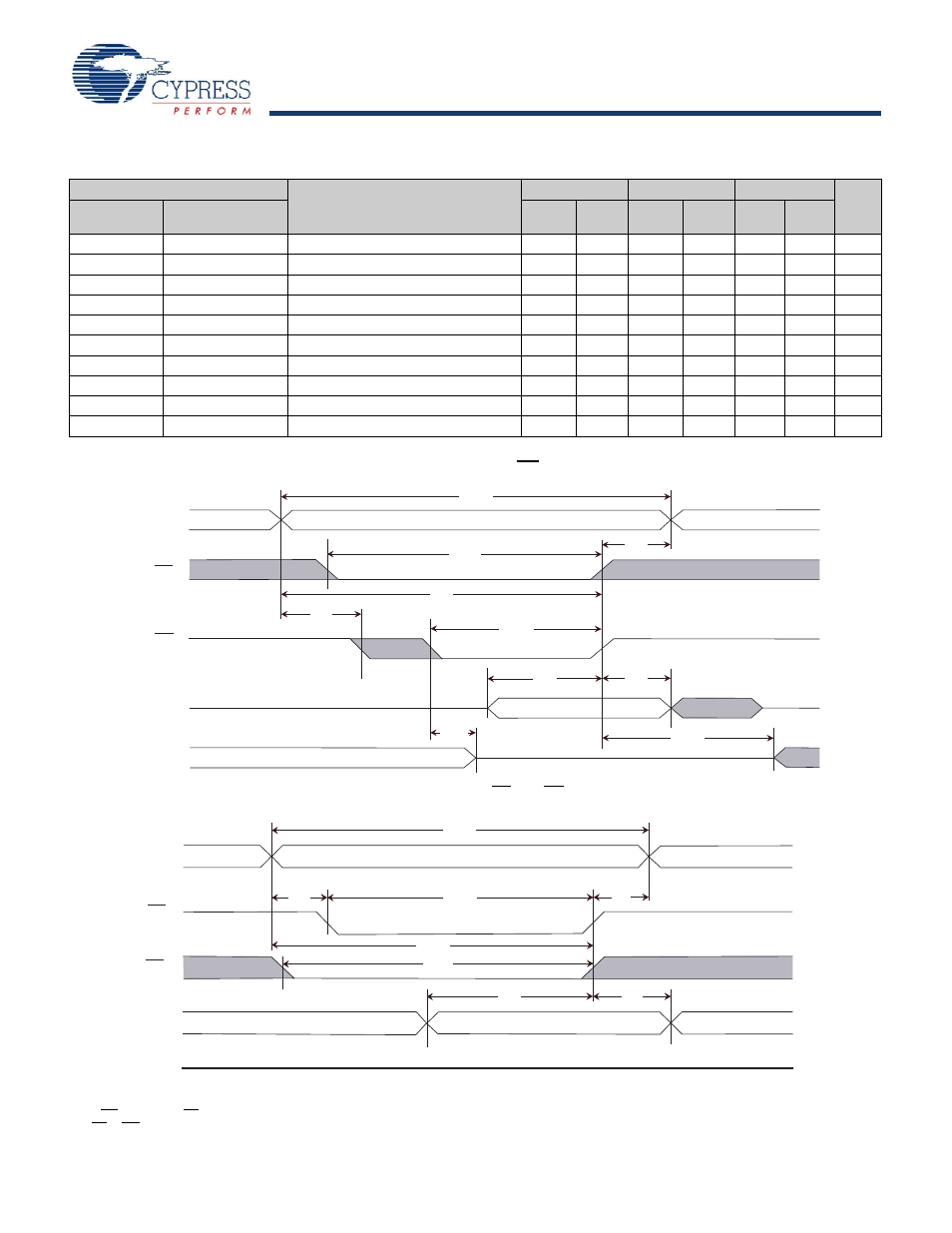

Switching Waveforms
Figure 7. SRAM Write Cycle 1: WE Controlled
Figure 8. SRAM Write Cycle 2: CE and OE Controlled
t
WC
t
SCE
t
HA
t
AW
t
SA
t
PWE
t
SD
t
HD
t
HZWE
t
LZWE
ADDRESS
CE
WE
DATA IN
DATA OUT
DATA VALID
HIGH IMPEDANCE
PREVIOUS DATA
t
WC
ADDRESS
t
SA
t
SCE
t
HA
t
AW
t
PWE
t
SD
t
HD
CE
WE
DATA IN
DATA OUT
HIGH IMPEDANCE
DATA VALID
Notes
7. If WE is Low when CE goes Low, the outputs remain in the high impedance state.
8. CE or WE must be greater than V
IH
during address transitions.
