At the back of the cabinet, pull back on the mounting-bracket flange until the top

mounting hook is in the top square hole, and then push down on the flange until the
mounting hooks seat in the square holes and the push button pops out and clicks.

Repeat steps 1 through = for the slide assembly on the other side of the rack.

Ensure that the rails are mounted at the same vertical position on both sides of the
rack.

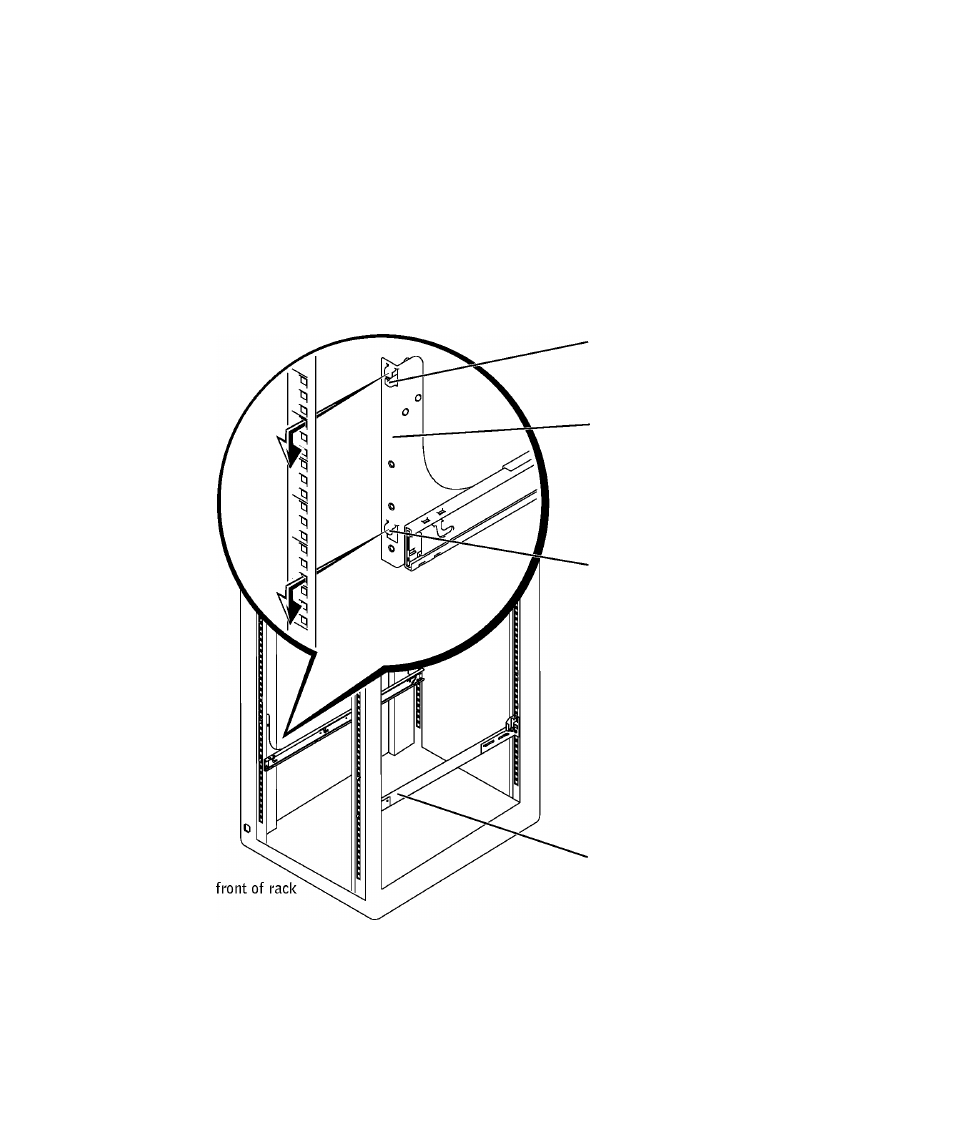

Figure 1-5. Installing the RapidRails Slide Assemblies

push button

■ slide-assembly

mounting-bracket

flange

■ mounting hooks

slide assemblies (2)

R a c k I n s t a l l a t i o n G u i d e |

1 - 9
