44
Duct Adapter Sizes
Table
MODEL LOCATION ROUND OPENING SIZE FLANGE SIZE
DUCT SIZE WIDTH HEIGHT WIDTH HEIGHT
D025 INLET 7.938 10.500 11.125 11.625 13.625
D025 OUTLET 7.938 10.000 11.125 11.625 13.625
D050,D088
1WG75/100
& 100
INLET 9.938 18.500 11.125 21.625 13.625
D050,D088 OUTLET 9.938 10.000 11.125 11.625 13.625
D088 DUAL OUTLET 7.938 10.000 11.125 11.625 13.625
D0200 INLET 11.938 18.875 14.983 21.625 17.625
D0200 OUTLET 11.928 11.625 14.983 13.625 17.625
D0200 DUAL OUTLET 9.938 11.625 14.983 13.625 17.625
Dimensions in inches

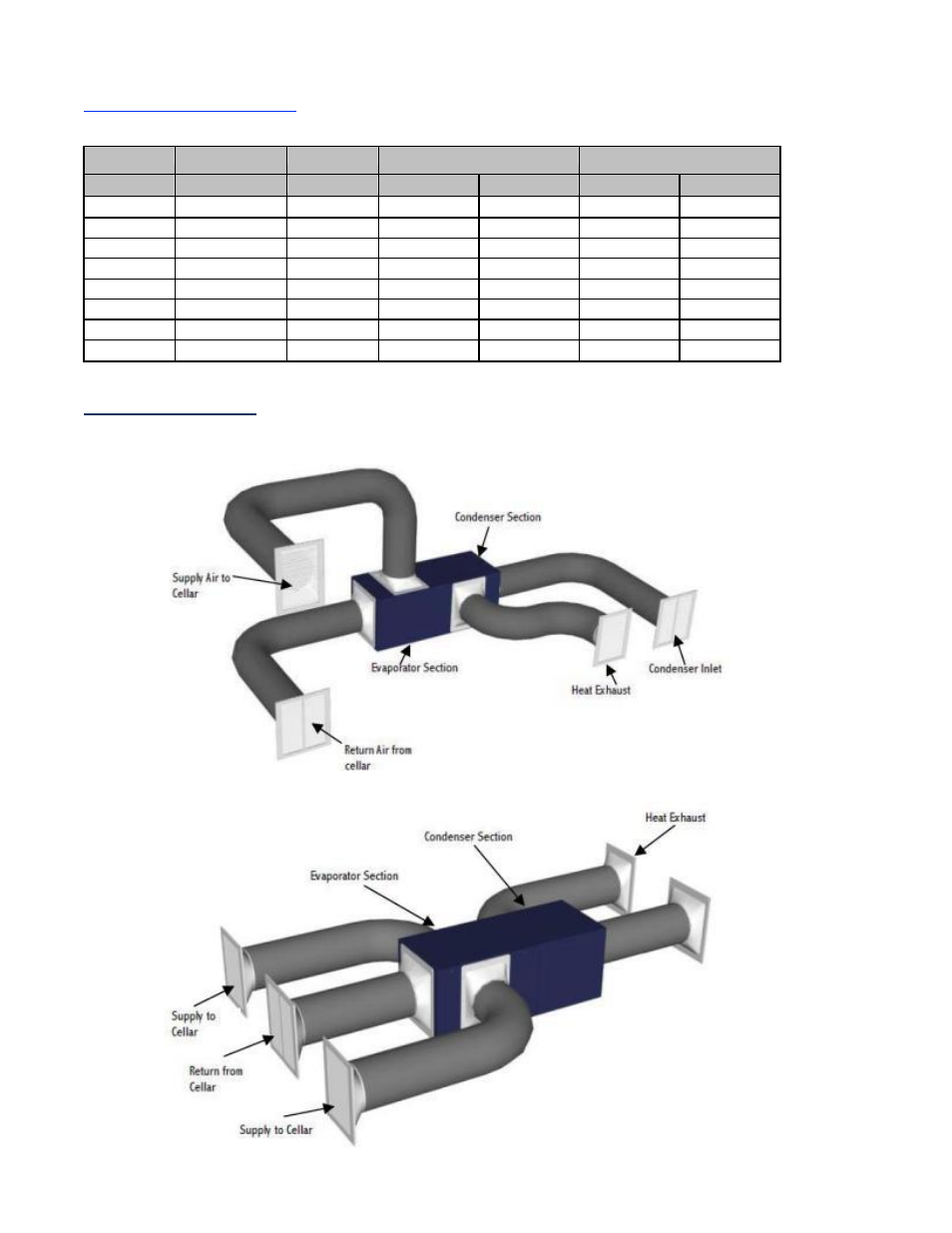

Ducting Options
Single Outlet Duct Installation
