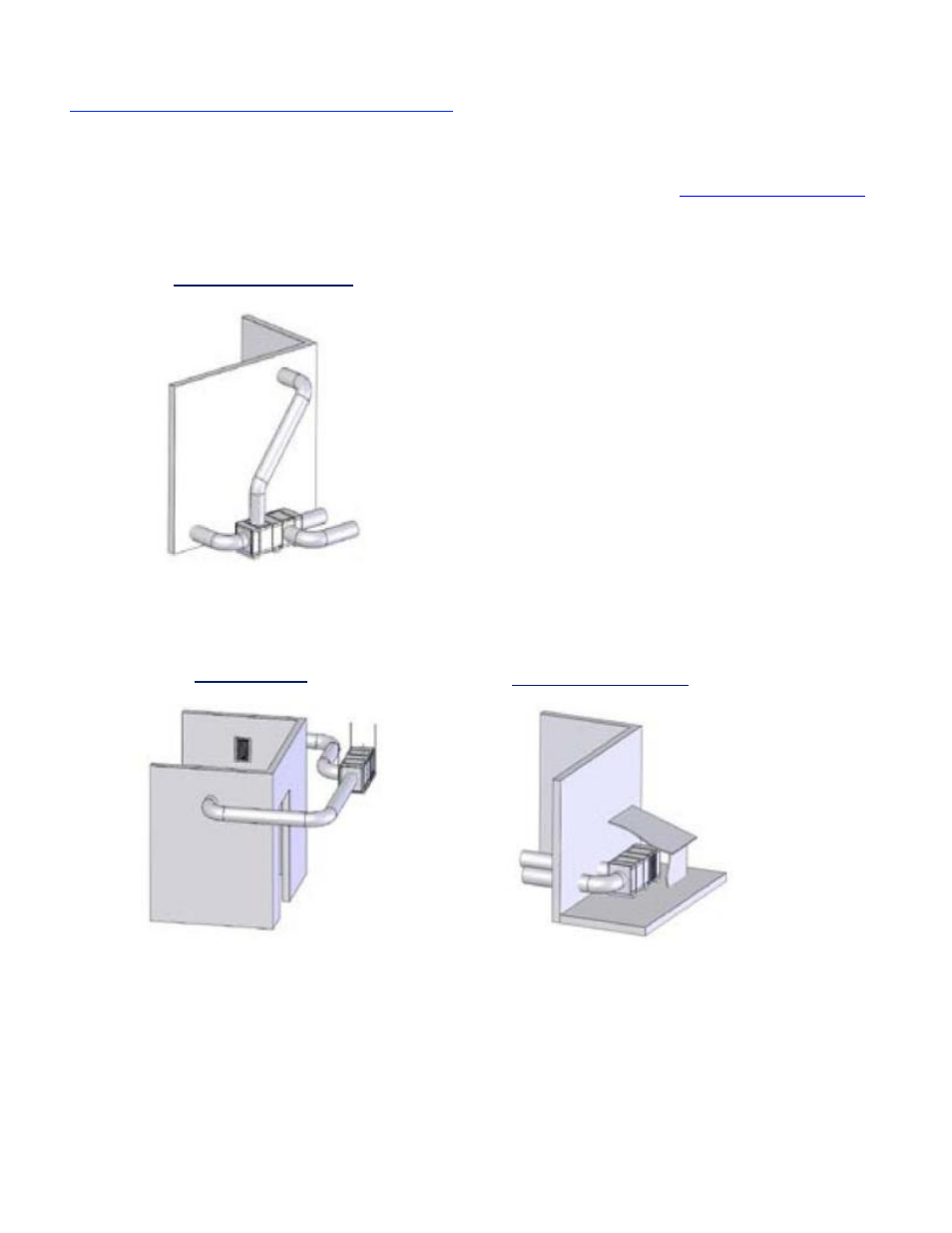

Typical Mounting Arrangements
The following illustrations are suggested mounting arrangements. These illustrations are not intended to be
complete and detailed installation drawings. For questions or help regarding installation, call customer
service at 1- 315-452-7400, toll free 800-825-3268, fax 1-315-452-7420 or email
[email protected]
a sketch of the proposed area where the unit is to be installed
Fig.
Remote Mount on Floor
Condenser inlet and
exhaust
– to outside
Ceiling Mounts Outside Remote Mount
