31

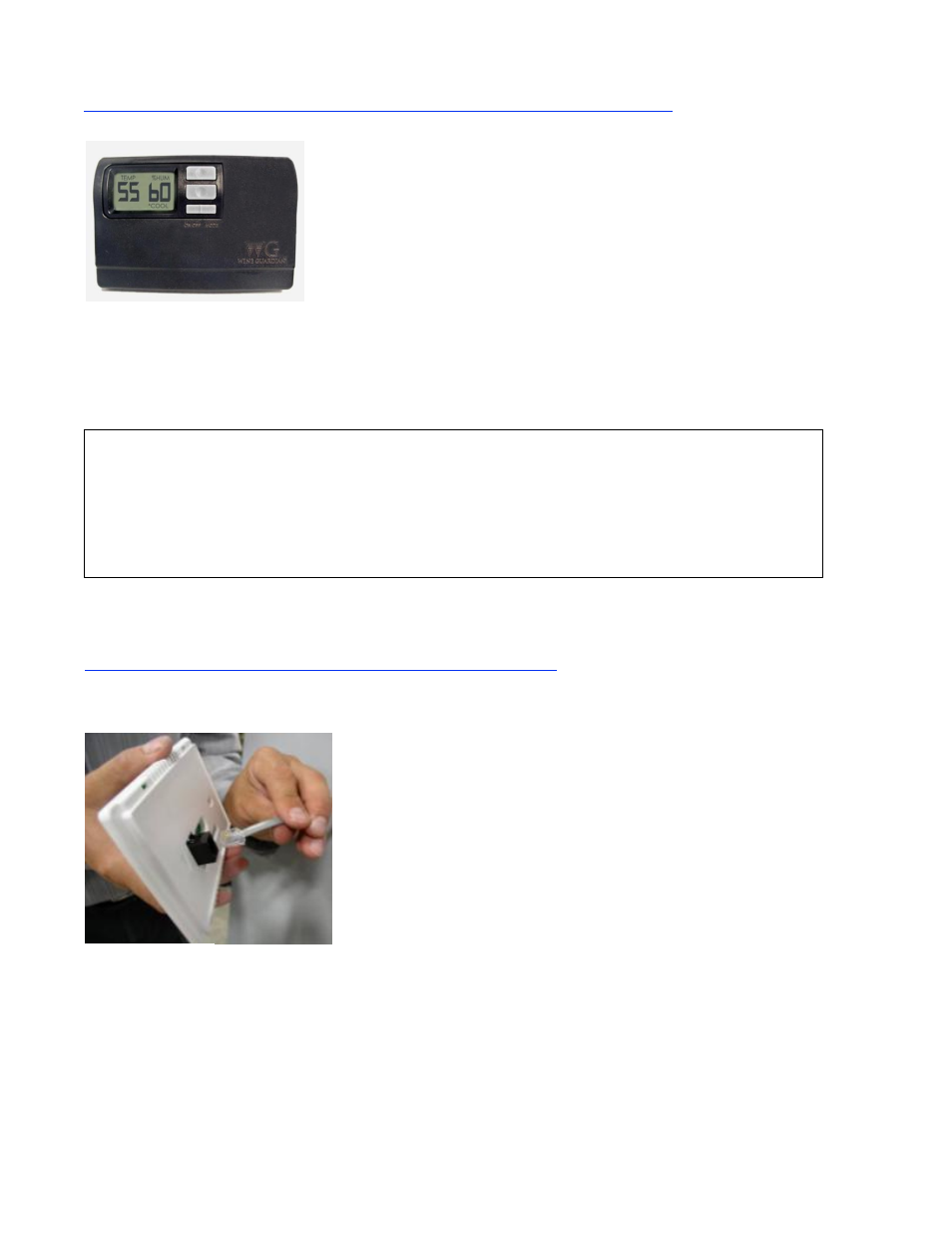

Installing the Thermostat and Communication Cable
The Wine Guardian Remote Interface Controller is a combination
temperature and humidity controller with single stage cooling,
heating and humidifier control. Each Wine Guardian unit is supplied
with a remote interface controller and 50 feet of communication
cable. It is wired at the factory for testing prior to shipment.
In most applications the remote interface controller will be mounted
within the wine cellar. The remote interface controller can also be
mounted directly outside of the wine cellar or in any other room of the home or building. When
mounted outside of the wine cellar, a remote sensor kit must be purchased and installed within the
wine cellar. See below for remote sensor installation details.
*** The remote interface controller is now only available in black ****
IMPORTANT
Wine Guardian units are supplied with 50 feet of Cat 3, 6-wire twisted pair communication cable
with RJ-11 connectors. Failure to use this type of communication cable WILL cause product
damage and WILL void any equipment warranty.
Installation instructions should be followed CAREFULLY as improper splicing and/or joining of
twisted pair cables can cause equipment failure .
1. Disconnect the communication cable from the side of
the Wine Guardian unit and the remote interface
controller.
a) Install the communication cable within the wall
and/or ceiling structure of the wine cellar to the
desired controller mounting location.
b) Mount the remote interface controller on a solid
surface away from doors, corners, air outlets, drafts or
heat generating equipment. Do not mount the remote
interface controller directly on an outside wall or wall
adjacent to a boiler room.
Fig. 1
Mounting the Remote Interface Controller
