2. Remove the back plate of the controller and mark
the mounting points at the desired location. (Fig. 2)
a) Mark the location of the communication
cable connection as this area will require
sufficient clearance for instance, a 1½ inch
hole in the wall for flush mounting of the back
plate. (Fig. 3)
3. Drill two one-eighth inch holes and insert anchors
(provided within the mounting surface. Anchors
may not be required if securing to a wall stud or
racking system.
4. Plug in the communication cable to the back of the
remote interface controller backing plate. (Fig.4)
a) Attach backing plate to wall using the two screws
provided with the system. (Fig.5)
5. Re-install plastic face plate on to backing plate.
6. Re-attach the communication cable to the side of
the Wine Guardian cooling unit. (Fig 6)

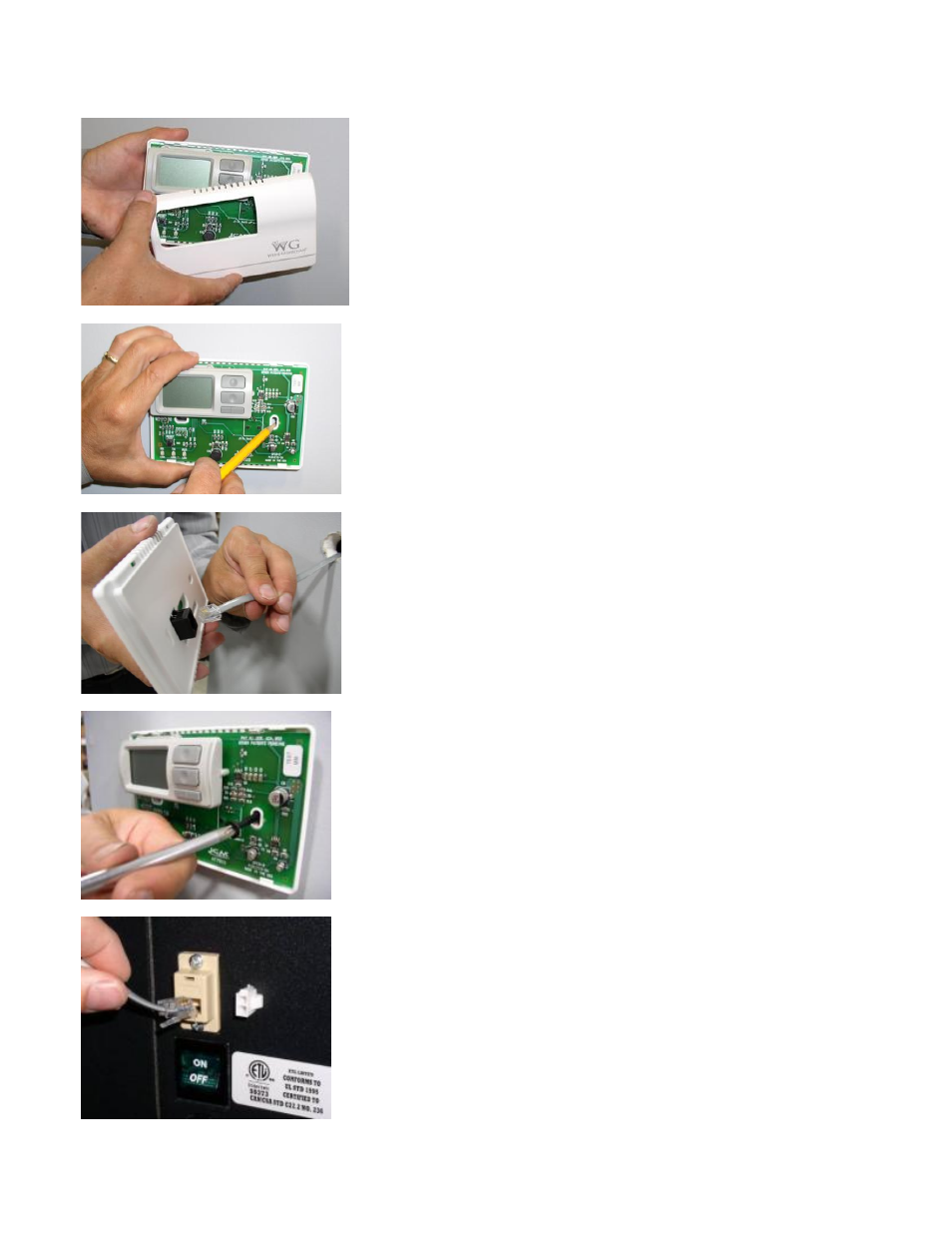

Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
