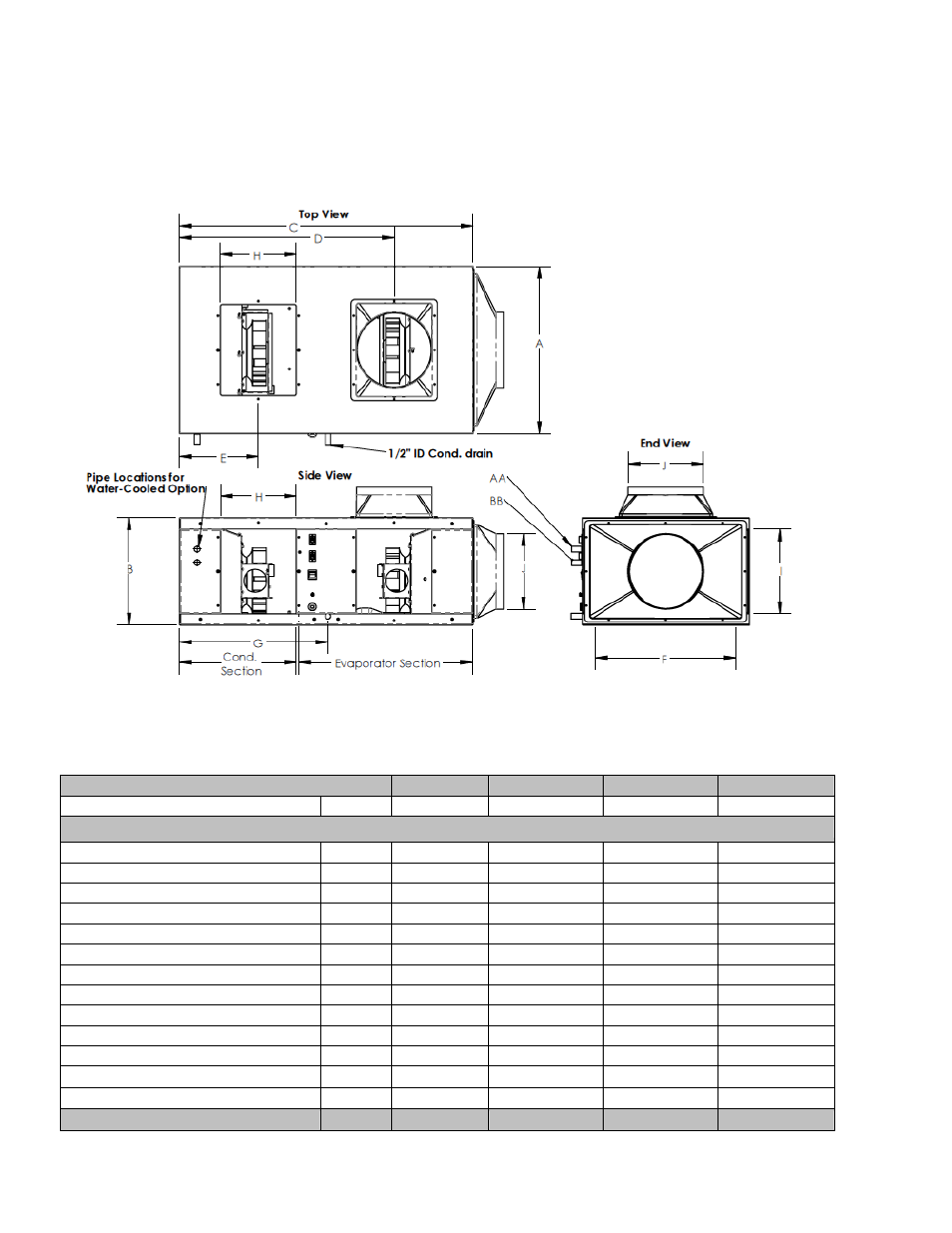

Wine Guardian dimensional data
Fig. 9
Table 1
Wine Guardian Dimensional Data
Model Number
D025
D050
D088
D200
Dimensions - Nominal - add 0.375" for each grille
A
– Depth
Inches
14
22
22
22.38
B
– Height
Inches
14
14
14
18
C
– Width
Inches
32.63
32.63
32.63
49.50
D
– Evap. discharge location
Inches
23.38
23.38
23.38
37.19
E
– Cond. discharge location
Inches
9.25
9.25
9.25
12.31
F
– Inlet opening width
Inches
10
10
10
18.88
G
– Drain outlet location
Inches
16.31
16.31
16.31
28.75
H
– Discharge opening width
Inches
10
10
10
11.63
I
– Inlet opening Height
Inches
12
12
12
15
J
– Duct opening
Inches
8
10
10
12
AA
– Water out (O.D)
Inches
0.625
0.625
0.625
0.625
BB
– Water in (O.D)
Inches
0.625
0.625
0.625
0.625
Weight
lbs
80
125
130
200
