Welch Allyn Mobile Acuity LT - Installation Guide - Manual (Page 3)

3

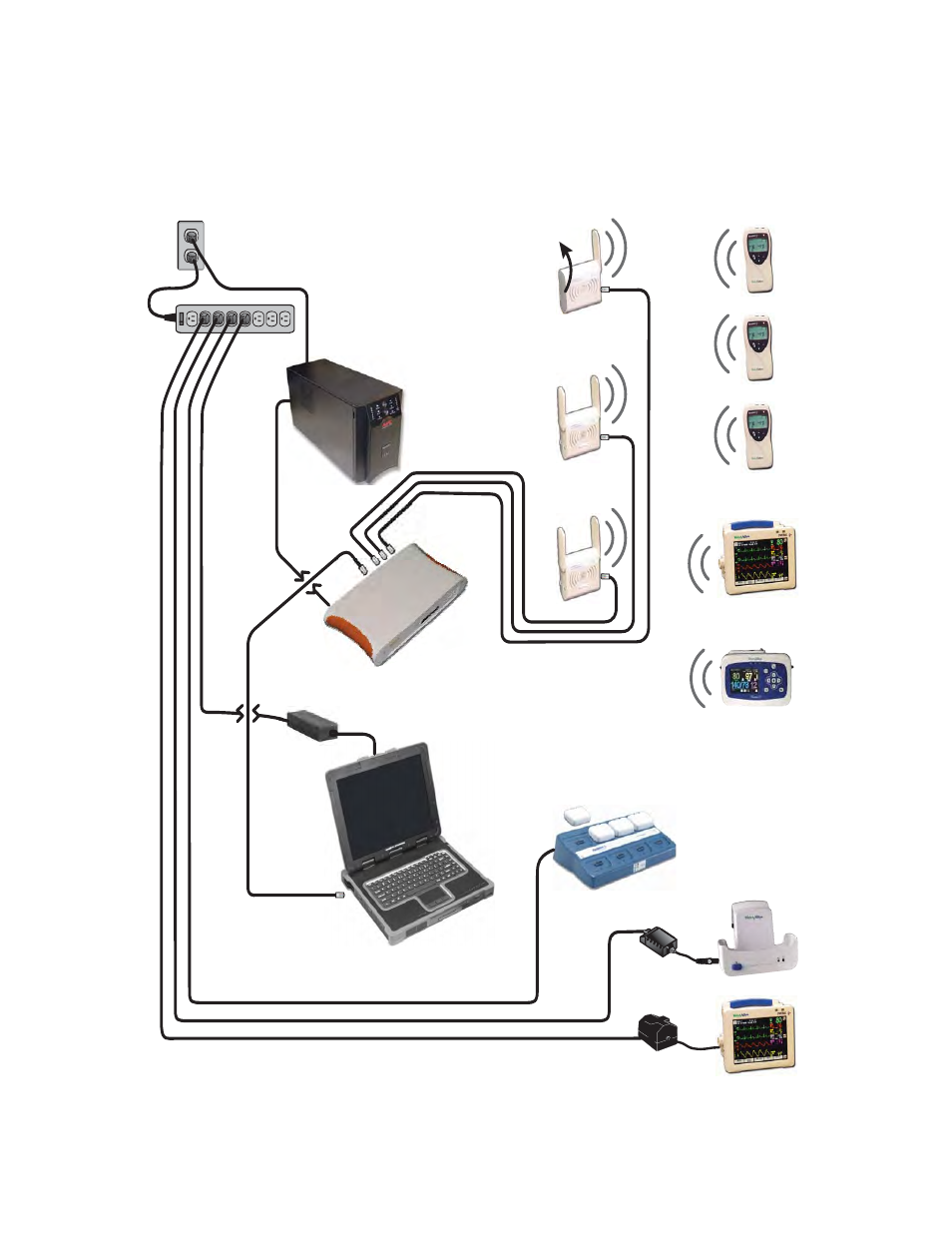

1. Locate AC power source, and set up and connect equipment
AC power
source
Wireless controller
Laptop computer
Micropaq
monitors
Battery charger for Micropaq monitor
Wireless
Propaq CS
monitor
Laptop
power
supply
10-foot data
cable to
controller port 7
Propaq LT
monitor
Charging cradle for
Propaq LT monitor
Access points (APs)
50-foot data cables to
controller ports 0-2
Place 6 to 40 feet
apart. Place patient
monitors no more
than 40 feet from an
AP.
Battery charger for Wireless Propaq CS monitor
Uninterruptible
power supply
(UPS)
