990229 REV C 5

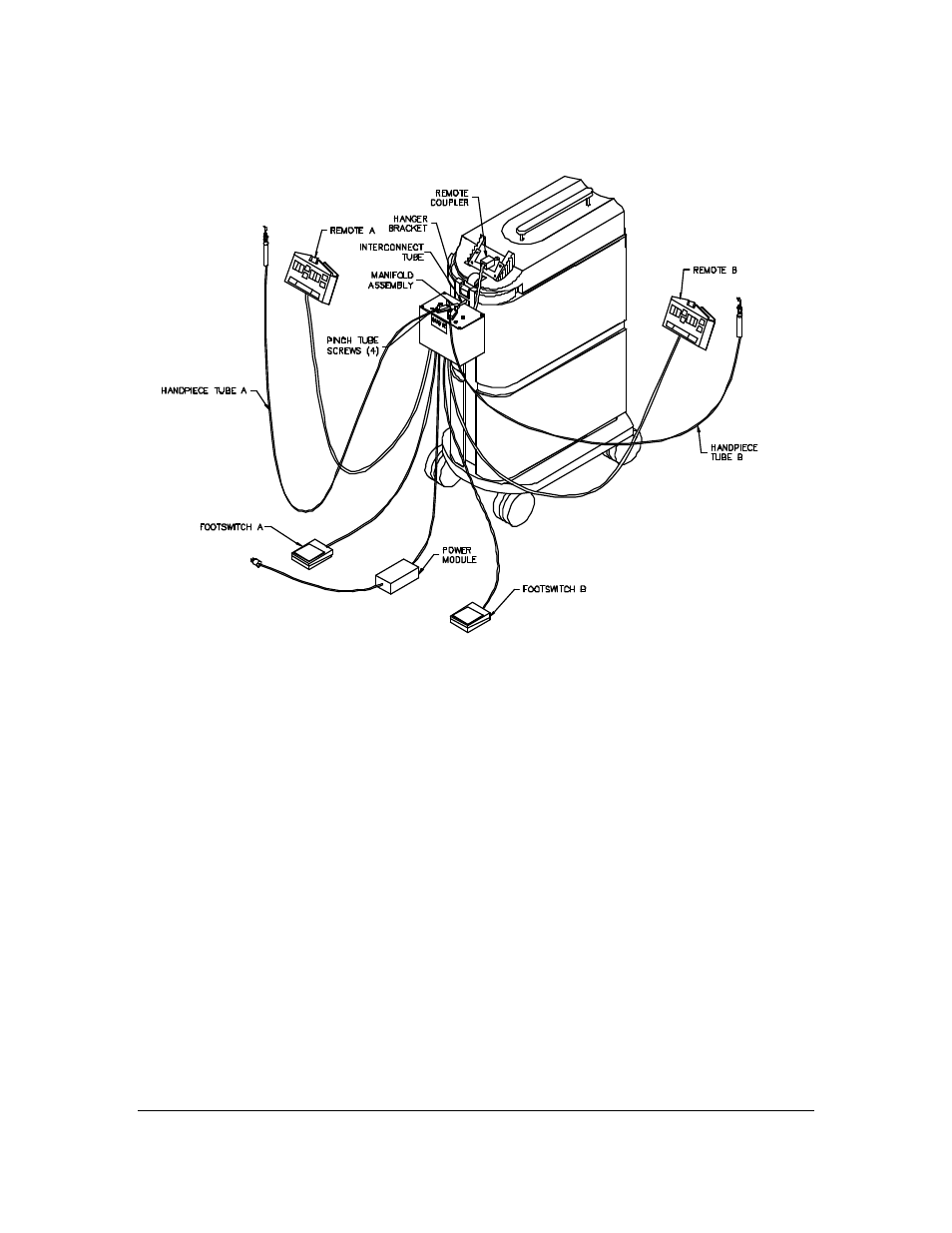

Figure 1
Installation Drawing (front-mount position)
Functional Description
Pinch Tube Screws - Access is provided to the pinch tubes by removing the pinch
tube screws, then removing the pinch tube top block.
Hanger Bracket - Mounts over the accessory drawer in the Mach 5/5+ to position
the Multi-Operatory unit in front of the Mach 5/5+.
Footswitch - Connects into the bottom of the Multi-Operatory Accessory and runs
to each of the operatories to initiate air/powder flow.
Remote - Connects to the back of the Multi-Operatory Accessory and runs to each
of the operatories to control the Mach 5/5+ when active.
