Mounting – Welch Allyn Insight Instruments Solarc Light Source - User Manual User Manual
Page 10
6
UI-20002 6/2002
Mounting

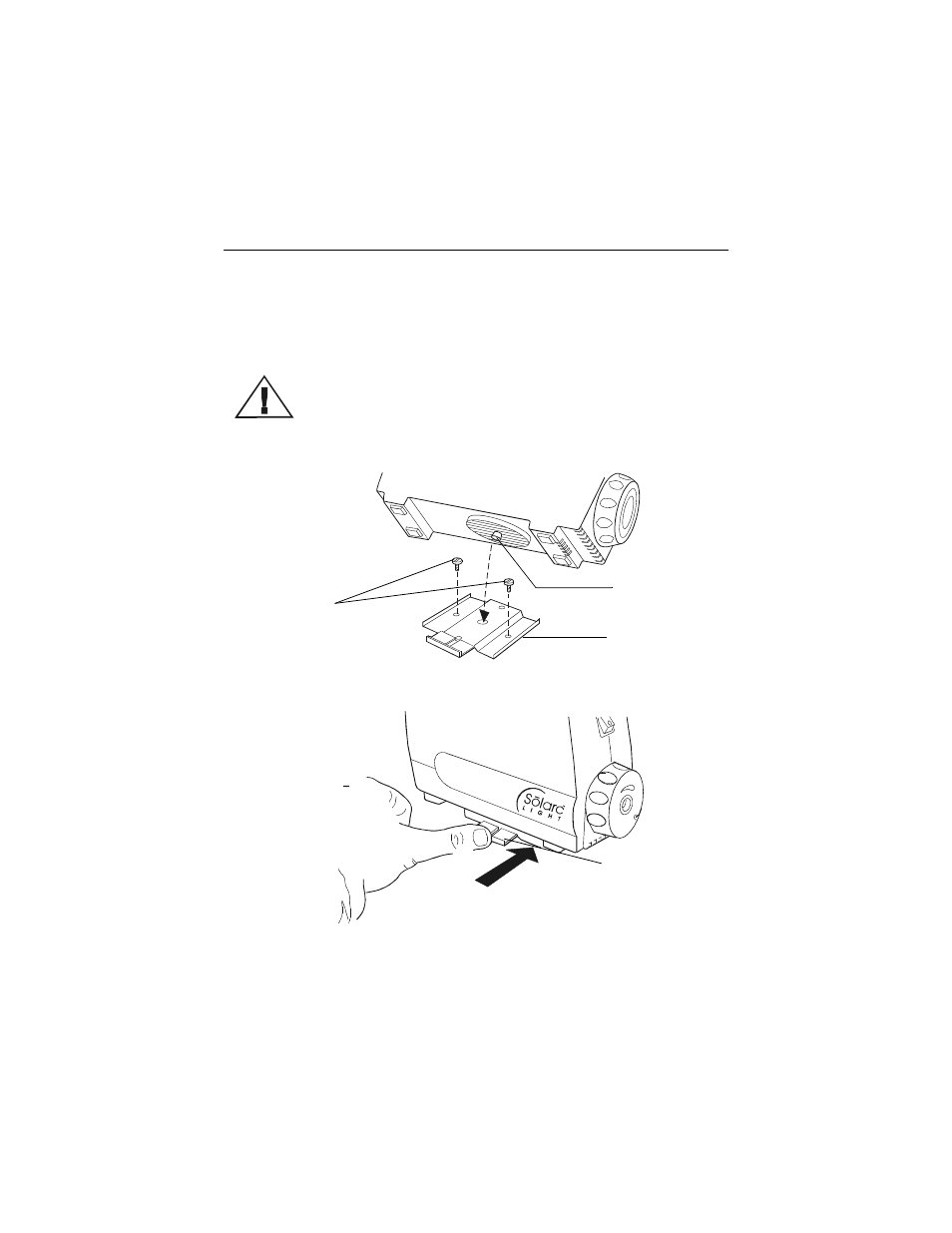

Secure bracket to a flat surface with screws provided. Align mounting
post on Light Source with mounting hole on bracket (View A). Slide
mounting lock until it clicks into place (View B). Light Source is now
securely mounted to table.
CAUTION: Do not cover or drape, Light Source generates
heat. For proper ventilation, maintain a clearance of 3
inches (7.62 cm) around the unit, especially around the fan.
VIEW A
Supplied Screws
Mounting Post
Mounting
Bracket
VIEW B
Mounting
Lock
