p.9

SYMPTOM

Lamp is not illuminating
and fan is not operating…

SYMPTOM

Lamp is not illuminating
and fan is operating.

PROBABLE CAUSE

Power cord not securely
connected to light source or
AC source.

AC source is not active.

Power cord is damaged (may
cause intermittent operation.

Light source power switch is
not turned on.

Bottom cover is not properly
installed.

One or both fuses have blown.

PROBABLE CAUSE

Lamp was not given adequate
time to "cool down" before
restarting.

Light Source has overheated.

Lamp has burned out.

SOLUTION

Check for secure connections.

Use another power source or
restore power to the current source.

Replace power cord.

Turn switch to the "I" position.

Remove bottom cover and reinstall
ensuring that the lip on the cover
fits into the front of the housing
and that the thumbscrew is fully
tightened.

Replace both fuses in accordance
with instructions in this manual.
If fuses continue to blow, return
unit to service center.

SOLUTION

Turn unit off and wait 20 seconds
before turning back on.

Verify environmental temperature
does not exceed specifications
and allow to cool down for 10
minutes. Check to ensure vents
and fan exhaust are not
obstructed.

Replace lamp in accordance
with instructions in this manual.
Use only Everest VIT replacement
lamp part number SPL-240.

TROUBLESHOOTING GUIDE

p.2

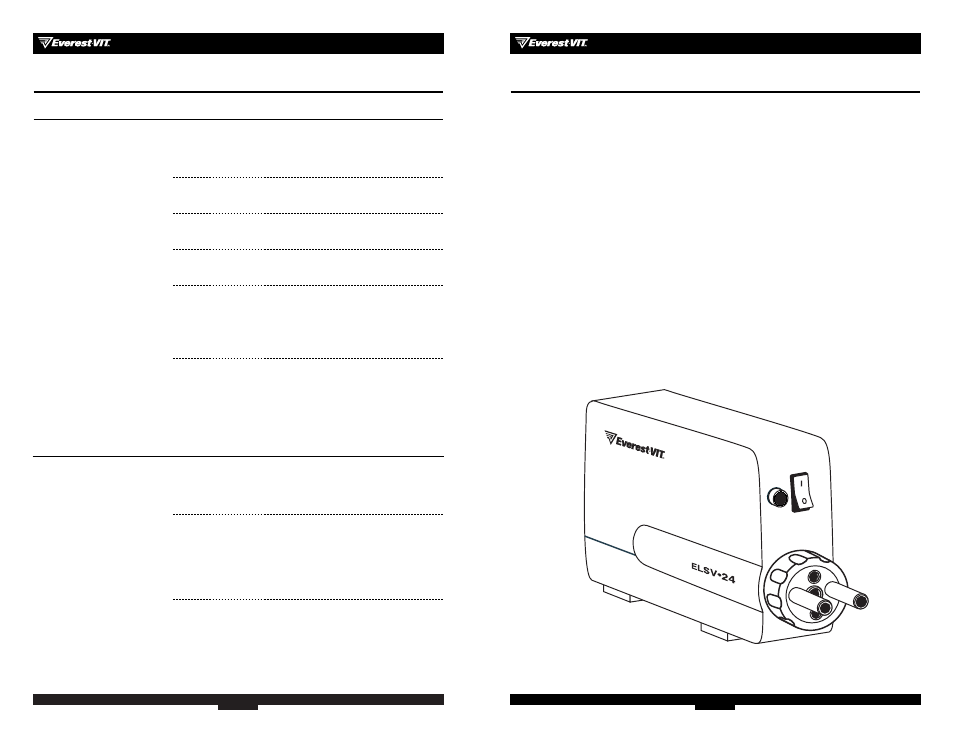

SYSTEM DESCRIPTION

The ELSV-24 Light Source provides high quality, white light for industrial borescope
and fiberscope inspections. It incorporates a patented and field-proven lamp
technology that has much greater efficiency than halogen or xenon lamps when
transferring light into a small fiber bundle, such as that found in borescopes and
fiberscopes. This greater efficiency allows the lamp to run at only 24W, which then
enables a small and lightweight light source design. You will also notice that the
ELSV-24 housing never gets very hot, so it is favored from a safety perspective as well.

For user convenience, the ELSV-24 is equipped with a video channel and multi-standard
light guide turret. The special video connector makes camera set-up and operation
easy by accepting the single power-video cable that is included with our BCAM
1000 c-mount borescope camera. This cable provides power to the camera and
carries the video signal from the camera back to the light source. The light source
has a video output on the back which can then be connected to a monitor or VCR
for image display and/or recording. The multi-standard light guide turret makes the
light source compatible with the four most common light guide fittings: ACMI, Wolf,
Olympus and Storz.

STD

ACMI

W

S

O
