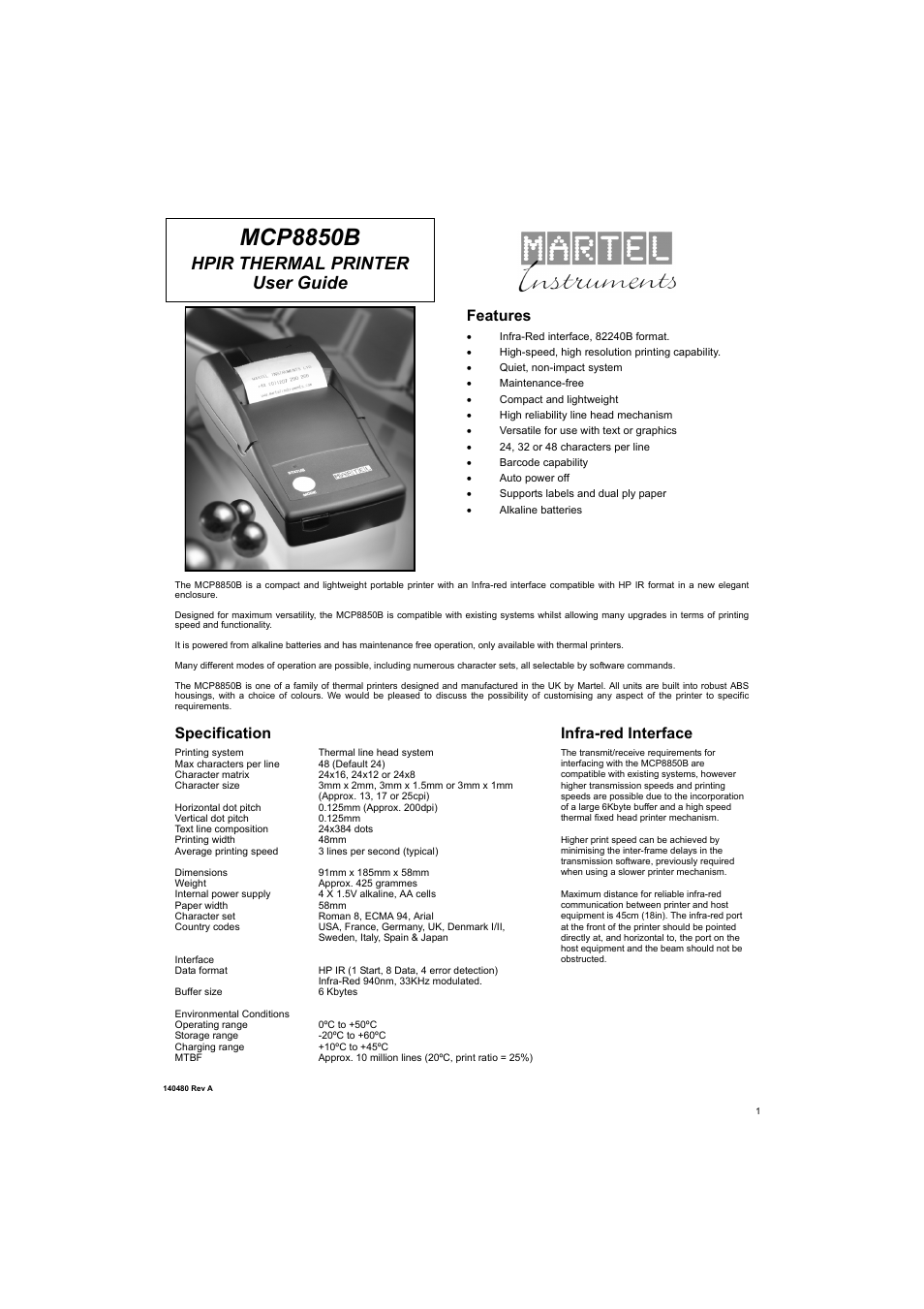

- HPIR THERMAL PRINTER
- User Guide
- The MCP8850B is a compact and lightweight portable printer with an Infra-red interface compatible with HP IR format in a new elegant enclosure.
- Designed for maximum versatility, the MCP8850B is compatible with existing systems whilst allowing many upgrades in terms of printing speed and functionality.
- It is powered from alkaline batteries and has maintenance free operation, only available with thermal printers.
- Many different modes of operation are possible, including numerous character sets, all selectable by software commands.
- The MCP8850B is one of a family of thermal printers designed and manufactured in the UK by Martel. All units are built into robu...
- Specification
- Infra-red Interface
- Printing system Thermal line head system
- Max characters per line 48 (Default 24)
- Character matrix 24x16, 24x12 or 24x8
- Character size 3mm x 2mm, 3mm x 1.5mm or 3mm x 1mm
- (Approx. 13, 17 or 25cpi)
- Horizontal dot pitch 0.125mm (Approx. 200dpi)
- Vertical dot pitch 0.125mm
- Text line composition 24x384 dots
- Printing width 48mm
- Average printing speed 3 lines per second (typical)
- Dimensions 91mm x 185mm x 58mm
- Weight Approx. 425 grammes
- Internal power supply 4 X 1.5V alkaline, AA cells
- Paper width 58mm
- Character set Roman 8, ECMA 94, Arial
- Country codes USA, France, Germany, UK, Denmark I/II,
- Sweden, Italy, Spain & Japan
- Interface
- Data format HP IR (1 Start, 8 Data, 4 error detection)
- Infra-Red 940nm, 33KHz modulated.
- Buffer size 6 Kbytes
- Environmental Conditions
- Operating range 0ºC to +50ºC
- Storage range -20ºC to +60ºC
- Charging range +10ºC to +45ºC
- MTBF Approx. 10 million lines (20ºC, print ratio = 25%)
- The transmit/receive requirements for interfacing with the MCP8850B are compatible with existing systems, however higher transmi...
- Higher print speed can be achieved by minimising the inter-frame delays in the transmission software, previously required when using a slower printer mechanism.
- Maximum distance for reliable infra-red communication between printer and host equipment is 45cm (18in). The infra-red port at t...
- 0
- Character font
- 1
- (see below)
- 2
- Print density
- 3
- (see below)
- 4
- Double height
- Cancelled
- Set
- 5
- Double width
- Cancelled
- Set
- 6
- Undefined
- 7
- Underline
- Cancelled
- Set
- Arial 24 chars/line
- 0
- 0
- Light 1 (Default)
- 0
- 0
- Arial 48 chars/line
- 0
- 1
- 2
- 0
- 1
- Arial 32 chars/line
- 1
- 0
- 3 (Label Default)
- 1
- 0
- Reserved
- 1
- 1
- Dark 4
- 1
- 1
- Control Codes and Escape Sequences
- Horizontal tab
- HT
- 9
- 09
- Line feed
- LF
- 10
- 0A
- Form feed
- FF
- 12
- 0C
- Carriage return
- CR
- 13
- 0D
- Cancel
- CAN
- 24
- 18
- Double width on
- SO
- 14
- 0E
- Double width off
- Si
- 15
- 0F
- Set print mode
- ESC NULL ! n
- 27 0 33 n
- 1B 00 21 n
- Set barcode start position
- ESC NULL $ n1 n2
- 27 0 36 n1 n2
- 1B 00 24 n1 n2
- Set bit image (8 pin single density)
- ESC NULL * 0 n1 n2 [d]
- 27 0 42 0 n1 n2 [d]
- 1B 00 2A 00 n1 n2 [d]
- Set bit image (8 pin double density)
- ESC NULL * 1 n1 n2 [d]
- 27 0 42 1 n1 n2 [d]
- 1B 00 2A 01 n1 n2 [d]
- Set bit image (24 pin single density)
- ESC NULL * 32 n1 n2 [d]
- 27 0 42 32 n1 n2 [d]
- 1B 00 2A 20 n1 n2 [d]
- Set bit image (24 pin double density)
- ESC NULL * 33 n1 n2 [d]
- 27 0 42 33 n1 n2 [d]
- 1B 00 2A 21 n1 n2 [d]
- Underline on
- ESC NULL - 1
- 27 0 45 1
- 1B 00 2D 01
- Underline off
- ESC NULL - 0
- 27 0 45 0
- 1B 00 2D 00
- Reset
- ESC NULL @
- 27 0 64
- 1B 00 40
- Set page length
- ESC NULL C n
- 27 0 67 n
- 1B 00 43 n
- Set horizontal tabs
- ESC NULL D n
- 27 0 68 n
- 1B 00 44 n
- Set bit image
- ESC NULL K n1 n2 [d]
- 27 0 75 n1 n2 [d]
- 1B 00 4B n1 n2 [d]
- Country select
- ESC NULL R n
- 27 0 82 n
- 1B 00 52 n
- Double width on
- ESC NULL W 1
- 27 0 87 1
- 1B 00 57 01
- Double width off
- ESC NULL W 0
- 27 0 87 0
- 1B 00 57 00
- Compressed bit image graphics
- ESC NULL Z n1 [d1] … n24 [d24]
- 27 0 90 n1 [d1] … n24 [d24]
- 1B 00 5A n1 [d1] … n24 [d24]
- Print & feed paper
- ESC NULL d n
- 27 0 100 n
- 1B 00 64 n
- Label advance
- ESC NULL f
- 27 0 102
- 1B 00 66
- Reversed on
- ESC NULL i 1
- 27 0 105 1
- 1B 00 69 01
- Reversed off
- ESC NULL i 0
- 27 0 105 0
- 1B 00 69 00
- Double height on
- ESC NULL w 1
- 27 0 119 1
- 1B 00 77 01
- Double height off
- ESC NULL w 0
- 27 0 119 0
- 1B 00 77 00
- Inverse on
- ESC NULL { 1
- 27 0 123 1
- 1B 00 7B 01
- Inverse off
- ESC NULL { 0
- 27 0 123 0
- 1B 00 7B 00
- Graphics
- ESC n [d]
- 27 n [d]
- 1B n [d]
- Roman 8 character set
- ESC <248>
- 27 248
- 1B F8
- ECMA 94 character set
- ESC <249>
- 27 249
- 1B F9
- Underline off
- ESC <250>
- 27 250
- 1B FA
- Underline on
- ESC <251>
- 27 251
- 1B FB
- Normal width on
- ESC <252>
- 27 252
- 1B FC
- Double width on
- ESC <253>
- 27 253
- 1B FD
- Self test
- ESC <254>
- 27 254
- 1B FE
- Reset
- ESC <255>
- 27 255
- 1B FF
- Set barcode height (1 < n < 255)
- GS h n
- 29 104 n
- 1D 68 n
- Print UPC-A barcode
- GS k 0 [d] NULL
- 29 107 0 [d] 0
- 1D 6B 00 [d] 00
- Print UCP-E barcode
- GS k 1 [d] NULL
- 29 107 1 [d] 0
- 1D 6B 01 [d] 00
- Print EAN13 barcode
- GS k 2 [d] NULL
- 29 107 2 [d] 0
- 1D 6B 02 [d] 00
- Print EAN8 barcode
- GS k 3 [d] NULL
- 29 107 3 [d] 0
- 1D 6B 02 [d] 00
- Print Code 39 barcode
- GS k 4 [d] NULL
- 29 107 4 [d] 0
- 1D 6B 04 [d] 00
- Print 2 of 5 barcode
- GS k 5 [d] NULL
- 29 107 5 [d] 0
- 1D 6B 05 [d] 00
- Print Codabar barcode
- GS k 6 [d] NULL
- 29 107 6 [d] 0
- 1D 6B 06 [d] 00
- Print CODE128 barcode
- GS k 7 n [d]
- 29 107 7 n [d]
- 1D 6B 07 n [d]
- Set barcode magnification (2 < n < 4)
- GS w n
- 29 119 n
- 1D 77 n
- USA
- ESC NULL R 0
- 27 0 82 0
- 1B 00 52 00
- France
- ESC NULL R 1
- 27 0 82 1
- 1B 00 52 01
- Germany
- ESC NULL R 2
- 27 0 82 2
- 1B 00 52 02
- UK
- ESC NULL R 3
- 27 0 82 3
- 1B 00 52 03
- Denmark I
- ESC NULL R 4
- 27 0 82 4
- 1B 00 52 04
- Sweden
- ESC NULL R 5
- 27 0 82 5
- 1B 00 52 05
- Italy
- ESC NULL R 6
- 27 0 82 6
- 1B 00 52 06
- Spain
- ESC NULL R 7
- 27 0 82 7
- 1B 00 52 07
- Japan
- ESC NULL R 8
- 27 0 82 8
- 1B 00 52 08
- Norway
- ESC NULL R 9
- 27 0 82 9
- 1B 00 52 09
- Denmark II
- ESC NULL R 10
- 27 0 82 10
- 1B 00 52 0A
- Website: www.martelinstruments.com

- The manufacturer reserves the right to alter specifications without prior notice
- IMPRIMANTE THERMIQUE HPIR
- Guide d’utilisation
- Le système MCP8850B est une imprimante portable, compacte et légère pourvue d’une interface infrarouge compatible avec le format IR HP. Il est présenté dans un boîtier élégant.
- Conçu pour offrir une polyvalence maximum, le MCP8850B est compatible avec les systèmes existants tout en permettant d’effectuer de nombreuses mises à niveau de la vitesse d’impression et des fonctionnalités.
- Le système est alimenté par des piles alcalines et fonctionne sans nécessiter de maintenance, ce qui n’est offert que par les imprimantes thermiques.
- De nombreux modes de fonctionnement différents sont possibles ; ceci comprend de multiples jeux de caractères qui sont tous sélectionnables avec des commandes logicielles.
- Le MCP8850B fait partie de la famille d’imprimantes thermiques conçues et fabriquées au RU par Martel. Toutes les unités sont pr...
- Spécifications
- Interface infrarouge
- Système d’impression Système à tête de ligne thermique
- Nombre max. de caractères
- par ligne 48 (24 par défaut)
- Matrice de caractères 24 x 16, 24 x 12 ou 24 x 8
- Taille des caractères 3 mm x 2 mm, 3 mm x 1,5 mm ou 3 mm x 1 mm
- (approx. 13, 17 ou 25 cpi)
- Taille de pixel horizontale 0,125 mm (approx. 200 dpi)
- Taille de pixel verticale 0,125 mm
- Composition des lignes de texte 24 x 384 points
- Largeur d’impression 48 mm
- Vitesse moyenne d’impression 3 lignes par seconde (typique)
- Dimensions 91 mm x 185 mm x 58 mm
- Poids Approx. 425 grammes
- Alimentation interne 4 piles AA alcalines de 1,5 V
- Largeur du papier 58 mm
- Jeux de caractères Romain 8, ECMA 94, Arial
- Codes de pays États-Unis, France, Allemagne, RU, Danemark I/II,
- Suède, Italie, Espagne et Japon
- Interface
- Format des données IR HP (1 démarrage, 8 données, 4 détection des erreurs)
- Infrarouge 940 nm, modulé 33KHz.
- Taille du tampon 6 Ko
- Conditions environnementales
- Plage de fonctionnement 0 à +50 ºC
- Plage de rangement -20 à +60 ºC
- Plage de charge +10 à +45 ºC
- MTBF Environ 10 millions de lignes (20 ºC, rapport d’impression de 25 %)
- Les exigences d’émission/de réception de l’interface avec le MCP8850B sont compatibles avec les systèmes existants ; cependant, ...
- Les impressions à grande vitesse sont possibles en minimisant les délais interimage, indispensables dans le logiciel de transmission, lorsqu’un mécanisme d’impression plus lent est utilisé.
- La distance maximum pour que la communication infrarouge entre l’imprimante et l’équipement hôte soit fiable est de 45 cm (18 po...
- 0
- Police de caractères
- 1
- (voir ci-dessous)
- 2
- Densité d’impression
- 3
- (voir ci-dessous)
- 4
- Hauteur double
- Annulée
- Réglée
- 5
- Largeur double
- Annulée
- Réglée
- 6
- Non définie
- 7
- Souligner
- Annulée
- Réglée
- Arial 24 car./ligne
- 0
- 0
- Claire 1 (défaut)
- 0
- 0
- Arial 48 car./ligne
- 0
- 1
- 2
- 0
- 1
- Arial 32 car./ligne
- 1
- 0
- 3 (étiquette par défaut)
- 1
- 0
- Réservé
- 1
- 1
- Sombre 4
- 1
- 1
- Codes de contrôle et séquences d’échappement
- Tabulation horizontale
- HT
- 9
- 09
- Changement de ligne
- LF
- 10
- 0A
- Changement de page
- FF
- 12
- 0C
- Retour de chariot
- CR
- 13
- 0D
- Annuler
- CAN
- 24
- 18
- Largeur double activée
- SO
- 14
- 0E
- Largeur double désactivée
- Si
- 15
- 0F
- Régler le mode d’impression
- ESC NULL ! n
- 27 0 33 n
- 1B 00 21 n
- Régler la position de démarrage du code-barres
- ESC NULL $ n1 n2
- 27 0 36 n1 n2
- 1B 00 24 n1 n2
- Régler l’image bit (8 picots, simple densité)
- ESC NULL * 0 n1 n2 [d]
- 27 0 42 0 n1 n2 [d]
- 1B 00 2A 00 n1 n2 [d]
- Régler l’image bit (8 picots, double densité)
- ESC NULL * 1 n1 n2 [d]
- 27 0 42 1 n1 n2 [d]
- 1B 00 2A 01 n1 n2 [d]
- Régler l’image bit (24 picots, simple densité)
- ESC NULL * 32 n1 n2 [d]
- 27 0 42 32 n1 n2 [d]
- 1B 00 2A 20 n1 n2 [d]
- Régler l’image bit (24 picots, double densité)
- ESC NULL * 33 n1 n2 [d]
- 27 0 42 33 n1 n2 [d]
- 1B 00 2A 21 n1 n2 [d]
- Impression en souligné activée
- ESC NULL - 1
- 27 0 45 1
- 1B 00 2D 01
- Impression en souligné désactivée
- ESC NULL - 0
- 27 0 45 0
- 1B 00 2D 00
- Réinitialiser
- ESC NULL @
- 27 0 64
- 1B 00 40
- Régler la longueur de page
- ESC NULL C n
- 27 0 67 n
- 1B 00 43 n
- Régler les tabulations horizontales
- ESC NULL D n
- 27 0 68 n
- 1B 00 44 n
- Régler l’image bit
- ESC NULL K n1 n2 [d]
- 27 0 75 n1 n2 [d]
- 1B 00 4B n1 n2 [d]
- Sélection du pays
- ESC NULL R n
- 27 0 82 n
- 1B 00 52 n
- Double largeur activée
- ESC NULL W 1
- 27 0 87 1
- 1B 00 57 01
- Double largeur désactivée
- ESC NULL W 0
- 27 0 87 0
- 1B 00 57 00
- Graphiques d’image bit comprimés
- ESC NULL Z n1 [d1] … n24 [d24]
- 27 0 90 n1 [d1] … n24 [d24]
- 1B 00 5A n1 [d1] … n24 [d24]
- Impression et alimentation papier
- ESC NULL d n
- 27 0 100 n
- 1B 00 64 n
- Avance de l’étiquette
- ESC NULL f
- 27 0 102
- 1B 00 66
- Renversement activé
- ESC NULL i 1
- 27 0 105 1
- 1B 00 69 01
- Renversement désactivé
- ESC NULL i 0
- 27 0 105 0
- 1B 00 69 00
- Hauteur double activée
- ESC NULL w 1
- 27 0 119 1
- 1B 00 77 01
- Hauteur double désactivée
- ESC NULL w 0
- 27 0 119 0
- 1B 00 77 00
- Inversion activée
- ESC NULL { 1
- 27 0 123 1
- 1B 00 7B 01
- Inversion désactivée
- ESC NULL { 0
- 27 0 123 0
- 1B 00 7B 00
- Graphiques
- ESC n [d]
- 27 n [d]
- 1B n [d]
- Jeu de 8 caractères Romain
- ESC <248>
- 27 248
- 1B F8
- Jeu de 94 caractères ECMA
- ESC <249>
- 27 249
- 1B F9
- Impression en souligné désactivée
- ESC <250>
- 27 250
- 1B FA
- Impression en souligné activée
- ESC <251>
- 27 251
- 1B FB
- Largeur normale activée
- ESC <252>
- 27 252
- 1B FC
- Largeur double activée
- ESC <253>
- 27 253
- 1B FD
- Auto-test
- ESC <254>
- 27 254
- 1B FE
- Réinitialiser
- ESC <255>
- 27 255
- 1B FF
- Régler la hauteur du code-barres (1 < n < 255)
- GS h n
- 29 104 n
- 1D 68 n
- Imprimer le code-barres UPC-A
- GS k 0 [d] NULL
- 29 107 0 [d] 0
- 1D 6B 00 [d] 00
- Imprimer le code-barres UPC-E
- GS k 1 [d] NULL
- 29 107 1 [d] 0
- 1D 6B 01 [d] 00
- Imprimer le code-barres EAN13
- GS k 2 [d] NULL
- 29 107 2 [d] 0
- 1D 6B 02 [d] 00
- Imprimer le code-barres EAN8
- GS k 3 [d] NULL
- 29 107 3 [d] 0
- 1D 6B 02 [d] 00
- Imprimer le code-barres Code 39
- GS k 4 [d] NULL
- 29 107 4 [d] 0
- 1D 6B 04 [d] 00
- Imprimer le code-barres 2 de 5
- GS k 5 [d] NULL
- 29 107 5 [d] 0
- 1D 6B 05 [d] 00
- Imprimer le code-barres Codabar
- GS k 6 [d] NULL
- 29 107 6 [d] 0
- 1D 6B 06 [d] 00
- Imprimer le code-barres CODE128
- GS k 7 n [d]
- 29 107 7 n [d]
- 1D 6B 07 n [d]
- Régler l’agrandissement du code-barres (2 < n < 4)
- GS w n
- 29 119 n
- 1D 77 n
- États-Unis
- ESC NULL R 0
- 27 0 82 0
- 1B 00 52 00
- France
- ESC NULL R 1
- 27 0 82 1
- 1B 00 52 01
- Allemagne
- ESC NULL R 2
- 27 0 82 2
- 1B 00 52 02
- RU
- ESC NULL R 3
- 27 0 82 3
- 1B 00 52 03
- Danemark I
- ESC NULL R 4
- 27 0 82 4
- 1B 00 52 04
- Suède
- ESC NULL R 5
- 27 0 82 5
- 1B 00 52 05
- Italie
- ESC NULL R 6
- 27 0 82 6
- 1B 00 52 06
- Espagne
- ESC NULL R 7
- 27 0 82 7
- 1B 00 52 07
- Japon
- ESC NULL R 8
- 27 0 82 8
- 1B 00 52 08
- Norvège
- ESC NULL R 9
- 27 0 82 9
- 1B 00 52 09
- Danemark II
- ESC NULL R 10
- 27 0 82 10
- 1B 00 52 0A
- Site Web : www.martelinstruments.com
- Le fabricant se réserve le droit de modifier les spécifications sans avis préalable
- STAMPANTE TERMICA HPIR
- Manuale utente
- La MCP8850B è una stampante portatile compatta e leggera con interfaccia ad infrarossi compatibile con formati IR HP in un nuovo elegante involucro.
- Progettata per il massimo della versatilità, la stampante MCP8850B è compatibile con i sistemi esistenti pur consentendo molti aggiornamenti in termini di velocità di stampa e funzionalità.
- È alimentata da una batteria alcalina ed ha una funzionalità che non necessita di manutenzione, disponibile solo con stampanti termiche.
- Sono possibili molte modalità di funzionamento, inclusa l’impostazione di numerosi caratteri, tutti selezionabili attraverso comandi del software.
- La MCP8850B fa parte di una famiglia di stampanti termiche progettate e prodotte nel Regno Unito da Martel. Tutte le unità sono ...
- Specifiche
- Interfaccia ad infrarossi
- Sistema di stampa Sistema a testina lineare termico
- Caratteri massimi per riga 48 (predefinito 24)
- Matrice dei caratteri 24x16, 24x12 o 24x8
- Dimensione dei caratteri 3 mm x 2 mm, 3 mm x 1,5 mm o 3 mm x 1 mm
- (circa 13, 17 o 25 cpi)
- Distanza orizzontale dei punti 0,125 mm (circa 200 dpi)
- Distanza verticale dei punti 0,125 mm
- Composizione delle righe
- di testo 24x384 punti
- Larghezza di stampa 48 mm
- Velocità media di stampa 3 righe al secondo (stampa tipica)
- Dimensioni 91 mm x 185 mm x 58 mm
- Peso Circa 425 grammi
- Alimentazione interna 4 X 1,5 V alcaline, cellule AA
- Larghezza carta 58 mm
- Set di caratteri Roman 8, ECMA 94, Arial
- Codici dei Paesi USA, Francia, Germania, Regno Unito, Danimarca I/II,
- Svezia, Italia, Spagna e Giappone
- Interfaccia
- Formato dati IR HP (1 Avvio, 8 Dati, 4 rilevamento errori)
- Infrarossi 940 nm, modulati 33 KHz.
- Dimensioni buffer 6 Kbyte
- Condizioni ambientali
- Condizioni operative da 0 ˚C a +50 ˚C
- Limiti di conservazione da -20 ˚C a +60 ˚C
- Limiti di ricarica da +10 ˚C a +45 ˚C
- MTBF Circa 10 milioni di righe (20 ˚C, rapporto di stampa = 25%)
- I requisiti di trasmissione/ricezione per interfacciare la stampante MCP8850B sono compatibili con i sistemi esistenti, pur esse...
- Una velocità di stampa superiore si può ottenere con la riduzione al minimo dei ritardi di inter-frame nel software di trasmissione, richiesti in precedenza per utilizzare un meccanismo di stampa più lento.
- La distanza massima per una comunicazione ad infrarossi affidabile tra la stampante e l’apparecchiatura principale è di 45 cm (1...
- 0
- Tipo di carattere
- 1
- (vedere sotto)
- 2
- Densità di stampa
- 3
- (vedere sotto)
- 4
- Altezza doppia
- Annullato
- Imposta
- 5
- Larghezza doppia
- Annullato
- Imposta
- 6
- Indefinito
- 7
- Sottolineato
- Annullato
- Imposta
- Arial 24 caratteri/riga
- 0
- 0
- Chiaro 1 (predefinito)
- 0
- 0
- Arial 48 caratteri/riga
- 0
- 1
- 2
- 0
- 1
- Arial 32 caratteri/riga
- 1
- 0
- 3 (predefinito etichetta)
- 1
- 0
- Riservato
- 1
- 1
- Scuro 4
- 1
- 1
- Codici di controllo e sequenze di escape
- Tabulazione orizzontale
- HT
- 9
- 09
- Avanzamento di riga
- LF
- 10
- 0A
- Avanzamento modulo
- FF
- 12
- 0C
- Ritorno carrello
- CR
- 13
- 0D
- Annulla
- CAN
- 24
- 18
- Larghezza doppia attivata
- SO
- 14
- 0E
- Larghezza doppia disattivata
- Si
- 15
- 0F
- Imposta modalità di stampa
- ESC NULL ! n
- 27 0 33 n
- 1B 00 21 n
- Imposta posizione di avvio codice a barre
- ESC NULL $ n1 n2
- 27 0 36 n1 n2
- 1B 00 24 n1 n2
- Imposta immagine a punti (densità singola a 8 pin)
- ESC NULL * 0 n1 n2 [d]
- 27 0 42 0 n1 n2 [d]
- 1B 00 2A 00 n1 n2 [d]
- Imposta immagine a punti (densità doppia a 8 pin)
- ESC NULL * 1 n1 n2 [d]
- 27 0 42 1 n1 n2 [d]
- 1B 00 2A 01 n1 n2 [d]
- Imposta immagine a punti (densità singola a 24 pin)
- ESC NULL * 32 n1 n2 [d]
- 27 0 42 32 n1 n2 [d]
- 1B 00 2A 20 n1 n2 [d]
- Imposta immagine a punti (densità doppia a 24 pin)
- ESC NULL * 33 n1 n2 [d]
- 27 0 42 33 n1 n2 [d]
- 1B 00 2A 21 n1 n2 [d]
- Sottolineatura attivata
- ESC NULL - 1
- 27 0 45 1
- 1B 00 2D 01
- Sottolineatura disattivata
- ESC NULL - 0
- 27 0 45 0
- 1B 00 2D 00
- Ripristina
- ESC NULL @
- 27 0 64
- 1B 00 40
- Imposta lunghezza pagina
- ESC NULL C n
- 27 0 67 n
- 1B 00 43 n
- Imposta tabulazioni orizzontali
- ESC NULL D n
- 27 0 68 n
- 1B 00 44 n
- Imposta immagine a punti
- ESC NULL K n1 n2 [d]
- 27 0 75 n1 n2 [d]
- 1B 00 4B n1 n2 [d]
- Selezione del Paese
- ESC NULL R n
- 27 0 82 n
- 1B 00 52 n
- Larghezza doppia attivata
- ESC NULL W 1
- 27 0 87 1
- 1B 00 57 01
- Larghezza doppia disattivata
- ESC NULL W 0
- 27 0 87 0
- 1B 00 57 00
- Grafica di immagini a punti compresse
- ESC NULL Z n1 [d1] … n24 [d24]
- 27 0 90 n1 [d1] … n24 [d24]
- 1B 00 5A n1 [d1] … n24 [d24]
- Stampa e alimenta carta
- ESC NULL d n
- 27 0 100 n
- 1B 00 64 n
- Avanzamento etichette
- ESC NULL f
- 27 0 102
- 1B 00 66
- In negativo attivata
- ESC NULL i 1
- 27 0 105 1
- 1B 00 69 01
- In negativo disattivata
- ESC NULL i 0
- 27 0 105 0
- 1B 00 69 00
- Doppia altezza attivata
- ESC NULL w 1
- 27 0 119 1
- 1B 00 77 01
- Doppia altezza disattivata
- ESC NULL w 0
- 27 0 119 0
- 1B 00 77 00
- Capovolto attivato
- ESC NULL { 1
- 27 0 123 1
- 1B 00 7B 01
- Capovolto disattivato
- ESC NULL { 0
- 27 0 123 0
- 1B 00 7B 00
- Grafica
- ESC n [d]
- 27 n [d]
- 1B n [d]
- Set di caratteri Roman 8
- ESC <248>
- 27 248
- 1B F8
- Set di caratteri ECMA 94
- ESC <249>
- 27 249
- 1B F9
- Sottolineatura disattivata
- ESC <250>
- 27 250
- 1B FA
- Sottolineatura attivata
- ESC <251>
- 27 251
- 1B FB
- Larghezza normale attivata
- ESC <252>
- 27 252
- 1B FC
- Larghezza doppia attivata
- ESC <253>
- 27 253
- 1B FD
- Test automatico
- ESC <254>
- 27 254
- 1B FE
- Ripristina
- ESC <255>
- 27 255
- 1B FF
- Imposta altezza codice a barre (1 < n < 255)
- GS h n
- 29 104 n
- 1D 68 n
- Stampa codice a barre UPC-A
- GS k 0 [d] NULL
- 29 107 0 [d] 0
- 1D 6B 00 [d] 00
- Stampa codice a barre UPC-E
- GS k 1 [d] NULL
- 29 107 1 [d] 0
- 1D 6B 01 [d] 00
- Stampa codice a barre EAN13
- GS k 2 [d] NULL
- 29 107 2 [d] 0
- 1D 6B 02 [d] 00
- Stampa codice a barre EAN8
- GS k 3 [d] NULL
- 29 107 3 [d] 0
- 1D 6B 02 [d] 00
- Stampa codice a barre Code 39
- GS k 4 [d] NULL
- 29 107 4 [d] 0
- 1D 6B 04 [d] 00
- Stampa codice a barre 2 di 5
- GS k 5 [d] NULL
- 29 107 5 [d] 0
- 1D 6B 05 [d] 00
- Stampa codice a barre Codabar
- GS k 6 [d] NULL
- 29 107 6 [d] 0
- 1D 6B 06 [d] 00
- Stampa codice a barre CODE128
- GS k 7 n [d]
- 29 107 7 n [d]
- 1D 6B 07 n [d]
- Imposta ingrandimento codice a barre (2 < n < 4)
- GS w n
- 29 119 n
- 1D 77 n
- USA
- ESC NULL R 0
- 27 0 82 0
- 1B 00 52 00
- Francia
- ESC NULL R 1
- 27 0 82 1
- 1B 00 52 01
- Germania
- ESC NULL R 2
- 27 0 82 2
- 1B 00 52 02
- Regno Unito
- ESC NULL R 3
- 27 0 82 3
- 1B 00 52 03
- Danimarca I
- ESC NULL R 4
- 27 0 82 4
- 1B 00 52 04
- Svezia
- ESC NULL R 5
- 27 0 82 5
- 1B 00 52 05
- Italia
- ESC NULL R 6
- 27 0 82 6
- 1B 00 52 06
- Spagna
- ESC NULL R 7
- 27 0 82 7
- 1B 00 52 07
- Giappone
- ESC NULL R 8
- 27 0 82 8
- 1B 00 52 08
- Norvegia
- ESC NULL R 9
- 27 0 82 9
- 1B 00 52 09
- Danimarca II
- ESC NULL R 10
- 27 0 82 10
- 1B 00 52 0A
- Sito web: www.martelinstruments.com
- Il produttore si riserva il diritto di modificare le specifiche senza preavviso
- HPIR THERMODRUCKER
- Bedienungsanleitung
- Bei dem MCP8850B handelt es sich um einen kompakten und leichten tragbaren Drucker mit einer Infrarot-Schnittstelle, die mit HP IR- Format kompatibel ist und sich in einem neuen eleganten Gehäuse befindet.
- Der auf maximale Vielseitigkeit ausgelegte MCP8850B ist mit vorhandenen Systemen kompatibel, erlaubt aber gleichzeitig Aktualisierungen in Bezug auf Druckgeschwindigkeit und Funktionalität.
- Er wird über Alkalibatterien betrieben und ist wartungsfrei, was nur bei Thermodruckern möglich ist.
- Es stehen verschiedene Betriebsmodi zur Verfügung sowie zahlreiche Zeichensätze, die alle über Softwarebefehle auswählbar sind.
- Der MCP8850B ist ein Drucker der Thermodrucker-Familie, die von Martel in GB entwickelt und hergestellt werden. Alle Geräte best...
- Technische Daten
- Infrarot-Schnittstelle
- Drucksystem Thermales Zeilenkopfsystem
- Höchstzahl von Zeichen
- pro Zeile 48 (Standard 24)
- Zeichenmatrix 24x16, 24x12 oder 24x8
- Zeichengröße 3 mm x 2 mm, 3 mm x 1,5 mm oder 3 mm x 1 mm
- (Ca. 13, 17 oder 25 cpi)
- Horizontaler Punktabstand 0,125 mm (Ca. 200 dpi)
- Vertikaler Punktabstand 0,125 mm
- Textzeilenzusammensetzung 24 x 384 Punkte
- Druckbreite 48 mm
- Durchschnittliche
- Druckgeschwindigkeit 3 Zeilen pro Sekunde (typisch)
- Abmessungen 91 mm x 185 mm x 58 mm
- Gewicht Ca. 425 g
- Interne Stromversorgung 4 X 1,5 V Alkali, AA-Zellen
- Papierbreite 58 mm
- Zeichensatz Roman 8, ECMA 94, Arial
- Ländercodes USA, Frankreich, Deutschland, GB, Dänemark I/II
- Schweden, Italien, Spanien u. Japan
- Schnittstelle
- Datenformat HP IR (1 Start, 8 Daten, 4 Fehlererkennung)
- Infrarot 940 nm, 33 kHz moduliert
- Puffergröße 6 Kbyte
- Umgebungsbedingungen
- Betriebsbereich 0 ºC bis +50 ºC
- Lagerbereich -20 ºC bis +60 ºC
- Ladebereich +10 ºC bis +45 ºC
- MTBF Ca. 10 Mio. Zeilen (20 ºC, Druckverhältnis = 25 %)
- Die Sende-/Empfangsanforderungen zur Kommunikation mit dem MCP8850B sind mit vorhandenen Systemen kompatibel, jedoch sind höhere...
- Die höhere Druckgeschwindigkeit wird durch Minimierung der Inter-Frame-Verzögerung in der Übertragungssoftware erzielt, die bisher beim Gebrauch eines langsameren Druckermechanismus notwendig war.
- Der maximale Abstand für zuverlässige Infrarot-Kommunikation zwischen Drucker und Hostgerät beträgt 45 cm (18 in.). Der Infrarot...
- 0
- Zeichenschriftart
- 1
- (siehe unten)
- 2
- Druckdichte
- 3
- (siehe unten)
- 4
- Doppelhöhe
- Abgebrochen
- Einstellen
- 5
- Doppelbreite
- Abgebrochen
- Einstellen
- 6
- Nicht definiert
- 7
- Unterstreichen
- Abgebrochen
- Einstellen
- Arial 24 Zeichen/Zeile
- 0
- 0
- Hell 1 (Standard)
- 0
- 0
- Arial 48 Zeichen/Zeile
- 0
- 1
- 2
- 0
- 1
- Arial 32 Zeichen/Zeile
- 1
- 0
- 3 (Etikett Standard)
- 1
- 0
- Reserviert
- 1
- 1
- Dunkel 4
- 1
- 1
- Steuercodes und Escape-Sequenzen
- Horizontale Tabellarisierung
- HT
- 9
- 09
- Zeilenvorschub
- LF
- 10
- 0A
- Seitenvorschub
- FF
- 12
- 0C
- Wagenrücklauf
- CR
- 13
- 0D
- Abbrechen
- CAN
- 24
- 18
- Doppelbreite ein
- SO
- 14
- 0E
- Doppelbreite aus
- Si
- 15
- 0F
- Druckmodus einstellen
- ESC NULL ! n
- 27 0 33 n
- 1B 00 21 n
- Barcode-Startposition einstellen
- ESC NULL $ n1 n2
- 27 0 36 n1 n2
- 1B 00 24 n1 n2
- Bitbild einstellen (8-Pin einfache Dichte)
- ESC NULL * 0 n1 n2 [d]
- 27 0 42 0 n1 n2 [d]
- 1B 00 2A 00 n1 n2 [d]
- Bitbild einstellen (8-Pin doppelte Dichte)
- ESC NULL * 1 n1 n2 [d]
- 27 0 42 1 n1 n2 [d]
- 1B 00 2A 01 n1 n2 [d]
- Bitbild einstellen (24-Pin einfache Dichte)
- ESC NULL * 32 n1 n2 [d]
- 27 0 42 32 n1 n2 [d]
- 1B 00 2A 20 n1 n2 [d]
- Bitbild einstellen (24-Pin doppelte Dichte)
- ESC NULL * 33 n1 n2 [d]
- 27 0 42 33 n1 n2 [d]
- 1B 00 2A 21 n1 n2 [d]
- Unterstreichen ein
- ESC NULL - 1
- 27 0 45 1
- 1B 00 2D 01
- Unterstreichen aus
- ESC NULL - 0
- 27 0 45 0
- 1B 00 2D 00
- Rücksetzen
- ESC NULL @
- 27 0 64
- 1B 00 40
- Seitenlänge einstellen
- ESC NULL C n
- 27 0 67 n
- 1B 00 43 n
- Horizontale Tabellarisierung einstellen
- ESC NULL D n
- 27 0 68 n
- 1B 00 44 n
- Bitbild einstellen
- ESC NULL K n1 n2 [d]
- 27 0 75 n1 n2 [d]
- 1B 00 4B n1 n2 [d]
- Land wählen
- ESC NULL R n
- 27 0 82 n
- 1B 00 52 n
- Doppelbreite ein
- ESC NULL W 1
- 27 0 87 1
- 1B 00 57 01
- Doppelbreite aus
- ESC NULL W 0
- 27 0 87 0
- 1B 00 57 00
- Komprimierte Bitbild-Grafik
- ESC NULL Z n1 [d1] … n24 [d24]
- 27 0 90 n1 [d1] … n24 [d24]
- 1B 00 5A n1 [d1] … n24 [d24]
- Drucken u. Papierzufuhr
- ESC NULL d n
- 27 0 100 n
- 1B 00 64 n
- Etikett vorrücken
- ESC NULL f
- 27 0 102
- 1B 00 66
- Rücklauf ein
- ESC NULL i 1
- 27 0 105 1
- 1B 00 69 01
- Rücklauf aus
- ESC NULL i 0
- 27 0 105 0
- 1B 00 69 00
- Doppelhöhe ein
- ESC NULL w 1
- 27 0 119 1
- 1B 00 77 01
- Doppelhöhe aus
- ESC NULL w 0
- 27 0 119 0
- 1B 00 77 00
- Invertierung ein
- ESC NULL { 1
- 27 0 123 1
- 1B 00 7B 01
- Invertierung aus
- ESC NULL { 0
- 27 0 123 0
- 1B 00 7B 00
- Grafik
- ESC n [d]
- 27 n [d]
- 1B n [d]
- Roman 8 Zeichensatz
- ESC <248>
- 27 248
- 1B F8
- ECMA 94 Zeichensatz
- ESC <249>
- 27 249
- 1B F9
- Unterstreichen aus
- ESC <250>
- 27 250
- 1B FA
- Unterstreichen ein
- ESC <251>
- 27 251
- 1B FB
- Normalbreite ein
- ESC <252>
- 27 252
- 1B FC
- Doppelbreite ein
- ESC <253>
- 27 253
- 1B FD
- Selbsttest
- ESC <254>
- 27 254
- 1B FE
- Rücksetzen
- ESC <255>
- 27 255
- 1B FF
- Barcodehöhe einstellen (1 < n < 255)
- GS h n
- 29 104 n
- 1D 68 n
- UPC-A Barcode drucken
- GS k 0 [d] NULL
- 29 107 0 [d] 0
- 1D 6B 00 [d] 00
- UPC-E Barcode drucken
- GS k 1 [d] NULL
- 29 107 1 [d] 0
- 1D 6B 01 [d] 00
- EAN13 Barcode drucken
- GS k 2 [d] NULL
- 29 107 2 [d] 0
- 1D 6B 02 [d] 00
- EAN8 Barcode drucken
- GS k 3 [d] NULL
- 29 107 3 [d] 0
- 1D 6B 02 [d] 00
- Code 39 Barcode drucken
- GS k 4 [d] NULL
- 29 107 4 [d] 0
- 1D 6B 04 [d] 00
- 2 von 5 Barcode drucken
- GS k 5 [d] NULL
- 29 107 5 [d] 0
- 1D 6B 05 [d] 00
- Coda-Barcode drucken
- GS k 6 [d] NULL
- 29 107 6 [d] 0
- 1D 6B 06 [d] 00
- CODE128 Barcode drucken
- GS k 7 n [d]
- 29 107 7 n [d]
- 1D 6B 07 n [d]
- Barcode-Vergrößerung einstellen (2 < n < 4)
- GS w n
- 29 119 n
- 1D 77 n
- USA
- ESC NULL R 0
- 27 0 82 0
- 1B 00 52 00
- Frankreich
- ESC NULL R 1
- 27 0 82 1
- 1B 00 52 01
- Deutschland
- ESC NULL R 2
- 27 0 82 2
- 1B 00 52 02
- GB
- ESC NULL R 3
- 27 0 82 3
- 1B 00 52 03
- Dänemark 1
- ESC NULL R 4
- 27 0 82 4
- 1B 00 52 04
- Schweden
- ESC NULL R 5
- 27 0 82 5
- 1B 00 52 05
- Italien
- ESC NULL R 6
- 27 0 82 6
- 1B 00 52 06
- Spanien
- ESC NULL R 7
- 27 0 82 7
- 1B 00 52 07
- Japan
- ESC NULL R 8
- 27 0 82 8
- 1B 00 52 08
- Norwegen
- ESC NULL R 9
- 27 0 82 9
- 1B 00 52 09
- Dänemark II
- ESC NULL R 10
- 27 0 82 10
- 1B 00 52 0A
- Website: www.martelinstruments.com
- Der Hersteller behält sich das Recht vor, die Spezifikationen unangekündigt zu ändern.
- IMPRESORA TÉRMICA HPIR
- Guía del usuario
- La MCP8850B es una impresora portátil compacta y ligera con una interfaz de infrarrojos compatible con el formato HP IR en una nueva carcasa elegante.
- Diseñada para obtener la máxima versatilidad, la MCP8850B es compatible con los sistemas existentes y permite muchas actualizaciones en términos de velocidad de impresión y funcionalidad.
- Se alimenta con baterías alcalinas y no necesita mantenimiento, solamente disponible con las impresoras térmicas.
- Tiene muchos modos diferentes de funcionamiento posibles, incluyendo numerosos conjuntos de caracteres, todos ellos seleccionables mediante comandos de software.
- La MCP8850B pertenece a una familia de impresoras térmicas diseñadas y fabricadas por Martel en el Reino Unido. Todas las unidad...
- Especificación
- Interfaz de infrarrojos
- Sistema de impresión Sistema térmico del cabezal de la línea
- Caracteres máx. por línea 48 (predeterminado: 24)
- Matriz de caracteres 24x16, 24x12 o 24x8
- Tamaño de caracteres 3mm x 2mm, 3mm x 1,5mm o 3mm x 1mm
- (Aprox. 13, 17 ó 25cpi)
- Ángulo de punto horizontal 0,125mm (Aprox. 200dpi)
- Ángulo de punto vertical 0,125mm
- Composición de la línea
- de texto 24x384 puntos
- Ancho de impresión 48mm
- Velocidad promedio
- de impresión 3 líneas por segundo (típico)
- Dimensiones 91mm x 185mm x 58mm
- Peso aprox. 425 gramos
- Fuente de alimentación
- interna 4 baterías alcalinas de 1,5V, tipo AA
- Ancho del papel 58mm
- Conjunto de caracteres Romano 8, ECMA 94, Arial
- Código de países EE.UU, Francia, Alemania, Reino Unido, Dinamarca I/II,
- Suecia, Italia, España y Japón
- Interfaz
- Formato de datos HP IR (1 Inicio, 8 Datos, 4 Detección de errores)
- Infrarrojos 940nm, modulado a 33KHz.
- Tamaño del búfer 6 Kbytes
- Condiciones medioambientales
- Rango de funcionamiento de 0 ºC a +50 ºC
- Rango de almacenamiento de -20 ºC a +60 ºC
- Rango de carga De +10 ºC a +45 ºC
- MTBF Aprox. 10 millones de líneas (20 ºC, proporción de impresión = 25%)
- Los requisitos de transmisión/recepción para conectar con la MCP8850B son compatibles con los sistemas existentes; sin embargo, ...
- Puede obtenerse una velocidad de impresión más alta minimizando los retrasos inter-trama en el software de transmisión, previamente requerido cuando se utiliza un mecanismo de impresora más lento.
- La distancia máxima para obtener una comunicación fiable de infrarrojos entre la impresora y el equipo principal es de 45 cm (18...
- 0
- Fuente del carácter
- 1
- (vea a continuación)
- 2
- Densidad de impresión
- 3
- (vea a continuación)
- 4
- Doble altura
- Cancelado
- Ajustado
- 5
- Doble ancho
- Cancelado
- Ajustado
- 6
- No definido
- 7
- Subrayar
- Cancelado
- Ajustado
- Arial 24 caract./línea
- 0
- 0
- Claro 1 (predeterminada)
- 0
- 0
- Arial 48 caract./línea
- 0
- 1
- 2
- 0
- 1
- Arial 32 caract./línea
- 1
- 0
- 3 (etiqueta predeterminada)
- 1
- 0
- Reservado
- 1
- 1
- Oscuro 4
- 1
- 1
- Códigos de control y secuencias de escape
- Tab. horizontal
- HT
- 9
- 09
- Avance de línea
- LF
- 10
- OA
- Alimentación del papel
- FF
- 12
- OC
- Retorno del carro
- CR
- 13
- OD
- Cancelar
- CAN
- 24
- 18
- Doble ancho activado
- SO
- 14
- OE
- Doble ancho desactivado
- Si
- 15
- OF
- Establecer modo de impresión
- ESC NULL ! n
- 27 0 33 n
- 1B 00 21 n
- Establecer posición de inicio del código de barras
- ESC NULL $ n1 n2
- 27 0 36 n1 n2
- 1B 00 24 n1 n2
- Establecer imagen de bitios (densidad única de 8 clavijas)
- ESC NULL * 0 n1 n2 [d]
- 27 0 42 0 n1 n2 [d]
- 1B 00 2A 00 n1 n2 [d]
- Establecer imagen de bitios (densidad doble de 8 clavijas)
- ESC NULL * 1 n1 n2 [d]
- 27 0 42 1 n1 n2 [d]
- 1B 00 2A 01 n1 n2 [d]
- Establecer imagen de bitios (densidad única de 24 clavijas)
- ESC NULL * 32 n1 n2 [d]
- 27 0 42 32 n1 n2 [d]
- 1B 00 2A 20 n1 n2 [d]
- Establecer imagen de bitios (densidad doble de 24 clavijas)
- ESC NULL * 33 n1 n2 [d]
- 27 0 42 33 n1 n2 [d]
- 1B 00 2A 21 n1 n2 [d]
- Subrayado activado
- ESC NULL - 1
- 27 0 45 1
- 1B 00 2D 01
- Subrayado desactivado
- ESC NULL - 0
- 27 0 45 0
- 1B 00 2D 00
- Restablecer
- ESC NULL @
- 27 0 64
- 1B 00 40
- Establecer largo de página
- ESC NULL C n
- 27 0 67 n
- 1B 00 43 n
- Establecer tab. horizontal
- ESC NULL D n
- 27 0 68 n
- 1B 00 44 n
- Establecer imagen de bitios
- ESC NULL K n1 n2 [d]
- 27 0 75 n1 n2 [d]
- 1B 00 4B n1 n2 [d]
- Selección de país
- ESC NULL R n
- 27 0 82 n
- 1B 00 52 n
- Doble ancho activado
- ESC NULL W 1
- 27 0 87 1
- 1B 00 57 01
- Doble ancho desactivado
- ESC NULL W 0
- 27 0 87 0
- 1B 00 57 00
- Gráficos de imagen de bitios comprimidos
- ESC NULL Z n1 [d1] … n24 [d24]
- 27 0 90 n1 [d1] … n24 [d24]
- 1B 00 5A n1 [d1] … n24 [d24]
- Imprimir y alimentar papel
- ESC NULL d n
- 27 0 100 n
- 1B 00 64 n
- Avance de etiqueta
- ESC NULL f
- 27 0 102
- 1B 00 66
- Invertido activado
- ESC NULL i 1
- 27 0 105 1
- 1B 00 69 01
- Invertido desactivado
- ESC NULL i 0
- 27 0 105 0
- 1B 00 69 00
- Altura doble activada
- ESC NULL w 1
- 27 0 119 1
- 1B 00 77 01
- Altura doble desactivada
- ESC NULL w 0
- 27 0 119 0
- 1B 00 77 00
- Invertir activado
- ESC NULL { 1
- 27 0 123 1
- 1B 00 7B 01
- Invertir desactivado
- ESC NULL { 0
- 27 0 123 0
- 1B 00 7B 00
- Gráficos
- ESC n [d]
- 27 n [d]
- 1B n [d]
- Conjunto de caracteres Romano 8
- ESC <248>
- 27 248
- 1B F8
- Conjunto de caracteres ECMA 94
- ESC <249>
- 27 249
- 1B F9
- Subrayado desactivado
- ESC <250>
- 27 250
- 1B FA
- Subrayado activado
- ESC <251>
- 27 251
- 1B FB
- Ancho normal activado
- ESC <252>
- 27 252
- 1B FC
- Doble ancho activado
- ESC <253>
- 27 253
- 1B FD
- Comprobación automática
- ESC <254>
- 27 254
- 1B FE
- Restablecer
- ESC <255>
- 27 255
- 1B FF
- Establecer altura del código de barras (1 < n < 255)
- GS h n
- 29 104 n
- 1D 68 n
- Imprimir código de barras UPC-A
- GS k 0 [d] NULL
- 29 107 0 [d] 0
- 1D 6B 00 [d] 00
- Imprimir código de barras UCP-E
- GS k 1 [d] NULL
- 29 107 1 [d] 0
- 1D 6B 01 [d] 00
- Imprimir código de barras EAN13
- GS k 2 [d] NULL
- 29 107 2 [d] 0
- 1D 6B 02 [d] 00
- Imprimir código de barras EAN8
- GS k 3 [d] NULL
- 29 107 3 [d] 0
- 1D 6B 02 [d] 00
- Imprimir código de barras Código 39
- GS k 4 [d] NULL
- 29 107 4 [d] 0
- 1D 6B 04 [d] 00
- Imprimir 2 códigos de barras de 5
- GS k 5 [d] NULL
- 29 107 5 [d] 0
- 1D 6B 05 [d] 00
- Imprimir código de barras Codabar
- GS k 6 [d] NULL
- 29 107 6 [d] 0
- 1D 6B 06 [d] 00
- Imprimir código de barras CODE 128
- GS k 7 n [d]
- 29 107 7 n [d]
- 1D 6B 07 n [d]
- Establecer ampliación del código de barras (2 < n < 4)
- GS w n
- 29 119 n
- 1D 77 n
- EE.UU.
- ESC NULL R 0
- 27 0 82 0
- 1B 00 52 00
- Francia
- ESC NULL R 1
- 27 0 82 1
- 1B 00 52 01
- Alemania
- ESC NULL R 2
- 27 0 82 2
- 1B 00 52 02
- Reino Unido
- ESC NULL R 3
- 27 0 82 3
- 1B 00 52 03
- Dinamarca I
- ESC NULL R 4
- 27 0 82 4
- 1B 00 52 04
- Suecia
- ESC NULL R 5
- 27 0 82 5
- 1B 00 52 05
- Italia
- ESC NULL R 6
- 27 0 82 6
- 1B 00 52 06
- España
- ESC NULL R 7
- 27 0 82 7
- 1B 00 52 07
- Japón
- ESC NULL R 8
- 27 0 82 8
- 1B 00 52 08
- Noruega
- ESC NULL R 9
- 27 0 82 9
- 1B 00 52 09
- Dinamarca II
- ESC NULL R 10
- 27 0 82 10
- 1B 00 52 0A
- Página web: www.martelinstruments.com
- El fabricante se reserva el derecho de alterar las especificaciones sin previo aviso
- IMPRESSORA TÉRMICA HPIR
- Guia do usuário
- A MCP8850B é uma impressora portátil e leve, com uma interface infra-vermelha compatível com o formato HP IR e uma caixa elegante.
- Projetada para ter uma versatilidade máxima, a MCP8850B é compatível com sistemas existentes, ao mesmo tempo em que permite várias atualizações em termos de velocidade de impressão e funcionalidade.
- É alimentada por pilhas alcalinas e sua operação não necessita de manutenção, característica exclusiva das impressoras térmicas.
- É possível imprimir usando vários modos de operação, incluindo conjuntos de caracteres selecionáveis através de comandos de software.
- A MCP8850B é uma das várias impressoras térmicas projetadas e fabricadas no Reino Unido pela Martel. Todas as unidades são acond...
- Especificações
- Interface de infra- vermelho
- Sistema de impressão Sistema de cabeçote térmico linear
- Nº máx. de caracteres
- por linha 48 (Padrão 24)
- Matriz de caracteres 24x16, 24x12 ou 24x8
- Tamanho do caractere 3 mm x 3 mm, 3mm x 1,5 mm ou 3 mm x 1 mm
- (Aprox. 13, 17 ou 25 cpi)
- Pontos por polegada -
- horizontal 0,125 mm (aprox. 200 dpi)
- Pontos por polegada -
- vertical 0,125 mm
- Composição da linha de texto 24x384 pontos
- Largura da impressão 48 mm
- Velocidade média
- de impressão 3 linhas por segundo (típico)
- Dimensões 91 mm x 185 mm x 58 mm
- Peso aproximado 425 gramas
- Alimentação elétrica interna 4 X pilhas alcalinas AA de 1,5 V
- Largura do papel 58 mm
- Conjunto de caracteres Roman 8, ECMA 94, Arial
- Códigos de países EUA, França, Alemanha, Reino Unido, Dinamarca I/II, Suécia, Itália, Espanha e Japão
- Interface
- Formato dos dados HP IR (1 bit de início, 8 bits de dados, 4 bits de detecção de erro)
- Infra-vermelho 940 nm, 33 KHz modulado.
- Tamanho do buffer 6 Kbytes
- Condições ambientais
- Temp. operacional 0 ˚C a +50 ˚C
- Temp. de armazenagem -20 ˚C a +60 ˚C
- Temp. de carga +10 ˚C a +45 ˚C
- MTBF Aprox. 10 milhões de linhas (20 ˚C, taxa de impressão = 25%)
- Os requisitos de transmissão e recebimento para interface com a MCP8850B são compatíveis com os sistemas existentes. Entretanto,...
- A velocidade mais alta de impressão pode ser obtida através da redução dos retardos entre quadros no software de transmissão, que costumava ser exigida pelos mecanismos de impressoras mais lentas.
- A distância máxima para a comunicação de infra-vermelho confiável entre impressora e equipamento host é 45 cm (18 pol.). A porta...
- 0
- Fonte do caractere
- 1
- (veja abaixo)
- 2
- Densidade da impressão
- 3
- (veja abaixo)
- 4
- Altura dupla
- Cancelado
- Configurado
- 5
- Largura dupla
- Cancelado
- Configurado
- 6
- Indefinida
- 7
- Sublinhado
- Cancelado
- Configurado
- Arial 24 caract/linha
- 0
- 0
- Claro 1 (Padrão)
- 0
- 0
- Arial 48 caract/linha
- 0
- 1
- 2
- 0
- 1
- Arial 32 caract/linha
- 1
- 0
- 3 (Padrão de etiqueta)
- 1
- 0
- Reservado
- 1
- 1
- Escuro 4
- 1
- 1
- Códigos de controle e seqüências de escape
- Tabulação horizontal
- HT
- 9
- 09
- Alimentação de linha
- LF
- 10
- 0A
- Alimentação de formulário
- FF
- 12
- 0C
- Retorno do carro
- CR
- 13
- 0D
- Cancelar
- CAN
- 24
- 18
- Largura dupla ativada
- SO
- 14
- 0E
- Largura dupla desativada
- Si
- 15
- 0F
- Configurar modo de impressão
- ESC NULL ! n
- 27 0 33 n
- 1B 00 21 n
- Configurar posição de início do código de barras
- ESC NULL $ n1 n2
- 27 0 36 n1 n2
- 1B 00 24 n1 n2
- Configurar imagem em bits (densidade única de 8 pinos)
- ESC NULL * 0 n1 n2 [d]
- 27 0 42 0 n1 n2 [d]
- 1B 00 2A 00 n1 n2 [d]
- Configurar imagem em bits (densidade dupla de 8 pinos)
- ESC NULL * 1 n1 n2 [d]
- 27 0 42 1 n1 n2 [d]
- 1B 00 2A 01 n1 n2 [d]
- Configurar imagem em bits (densidade única de 24 pinos)
- ESC NULL * 32 n1 n2 [d]
- 27 0 42 32 n1 n2 [d]
- 1B 00 2A 20 n1 n2 [d]
- Configurar imagem em bits (densidade dupla de 24 pinos)
- ESC NULL * 33 n1 n2 [d]
- 27 0 42 33 n1 n2 [d]
- 1B 00 2A 21 n1 n2 [d]
- Sublinhado ativado
- ESC NULL - 1
- 27 0 45 1
- 1B 00 2D 01
- Sublinhado desativado
- ESC NULL - 0
- 27 0 45 0
- 1B 00 2D 00
- Reconfigurar
- ESC NULL @
- 27 0 64
- 1B 00 40
- Configurar comprimento da página
- ESC NULL C n
- 27 0 67 n
- 1B 00 43 n
- Configurar tabulações horizontais
- ESC NULL D n
- 27 0 68 n
- 1B 00 44 n
- Configurar imagem em bits
- ESC NULL K n1 n2 [d]
- 27 0 75 n1 n2 [d]
- 1B 00 4B n1 n2 [d]
- Selecionar país
- ESC NULL R n
- 27 0 82 n
- 1B 00 52 n
- Largura dupla ativada
- ESC NULL W 1
- 27 0 87 1
- 1B 00 57 01
- Largura dupla desativada
- ESC NULL W 0
- 27 0 87 0
- 1B 00 57 00
- Imagens com compressão de bits
- ESC NULL Z n1 [d1] … n24 [d24]
- 27 0 90 n1 [d1] … n24 [d24]
- 1B 00 5A n1 [d1] … n24 [d24]
- Imprimir e alimentar papel
- ESC NULL d n
- 27 0 100 n
- 1B 00 64 n
- Avanço de etiqueta
- ESC NULL f
- 27 0 102
- 1B 00 66
- Reverso ativado
- ESC NULL i 1
- 27 0 105 1
- 1B 00 69 01
- Reverso desativado
- ESC NULL i 0
- 27 0 105 0
- 1B 00 69 00
- Altura dupla ativada
- ESC NULL w 1
- 27 0 119 1
- 1B 00 77 01
- Altura dupla desativada
- ESC NULL w 0
- 27 0 119 0
- 1B 00 77 00
- Inverso ativado
- ESC NULL { 1
- 27 0 123 1
- 1B 00 7B 01
- Inverso desativado
- ESC NULL { 0
- 27 0 123 0
- 1B 00 7B 00
- Gráfico
- ESC n [d]
- 27 n [d]
- 1B n [d]
- Conjunto de caracteres Roman 8
- ESC <248>
- 27 248
- 1B F8
- Conjunto de caracteres ECMA 94
- ESC <249>
- 27 249
- 1B F9
- Sublinhado desativado
- ESC <250>
- 27 250
- 1B FA
- Sublinhado ativado
- ESC <251>
- 27 251
- 1B FB
- Largura normal ativada
- ESC <252>
- 27 252
- 1B FC
- Largura dupla ativada
- ESC <253>
- 27 253
- 1B FD
- Autoteste
- ESC <254>
- 27 254
- 1B FE
- Reconfigurar
- ESC <255>
- 27 255
- 1B FF
- Configurar altura do código de barras (1 < n < 255)
- GS h n
- 29 104 n
- 1D 68 n
- Imprimir código de barras UPC-A
- GS k 0 [d] NULL
- 29 107 0 [d] 0
- 1D 6B 00 [d] 00
- Imprimir código de barras UPC-E
- GS k 1 [d] NULL
- 29 107 1 [d] 0
- 1D 6B 01 [d] 00
- Imprimir código de barras EAN13
- GS k 2 [d] NULL
- 29 107 2 [d] 0
- 1D 6B 02 [d] 00
- Imprimir código de barras EAN8
- GS k 3 [d] NULL
- 29 107 3 [d] 0
- 1D 6B 02 [d] 00
- Imprimir código de barras Código 39
- GS k 4 [d] NULL
- 29 107 4 [d] 0
- 1D 6B 04 [d] 00
- Imprimir 2 de 5 códigos de barras
- GS k 5 [d] NULL
- 29 107 5 [d] 0
- 1D 6B 05 [d] 00
- Imprimir código de barras Codabar
- GS k 6 [d] NULL
- 29 107 6 [d] 0
- 1D 6B 06 [d] 00
- Imprimir código de barras CÓDIGO 128
- GS k 7 n [d]
- 29 107 7 n [d]
- 1D 6B 07 n [d]
- Configurar ampliação do código de barras (2 < n < 4)
- GS w n
- 29 119 n
- 1D 77 n
- EUA
- ESC NULL R 0
- 27 0 82 0
- 1B 00 52 00
- França
- ESC NULL R 1
- 27 0 82 1
- 1B 00 52 01
- Alemanha
- ESC NULL R 2
- 27 0 82 2
- 1B 00 52 02
- Reino Unido
- ESC NULL R 3
- 27 0 82 3
- 1B 00 52 03
- Dinamarca I
- ESC NULL R 4
- 27 0 82 4
- 1B 00 52 04
- Suécia
- ESC NULL R 5
- 27 0 82 5
- 1B 00 52 05
- Itália
- ESC NULL R 6
- 27 0 82 6
- 1B 00 52 06
- Espanha
- ESC NULL R 7
- 27 0 82 7
- 1B 00 52 07
- Japão
- ESC NULL R 8
- 27 0 82 8
- 1B 00 52 08
- Noruega
- ESC NULL R 9
- 27 0 82 9
- 1B 00 52 09
- Dinamarca II
- ESC NULL R 10
- 27 0 82 10
- 1B 00 52 0A
