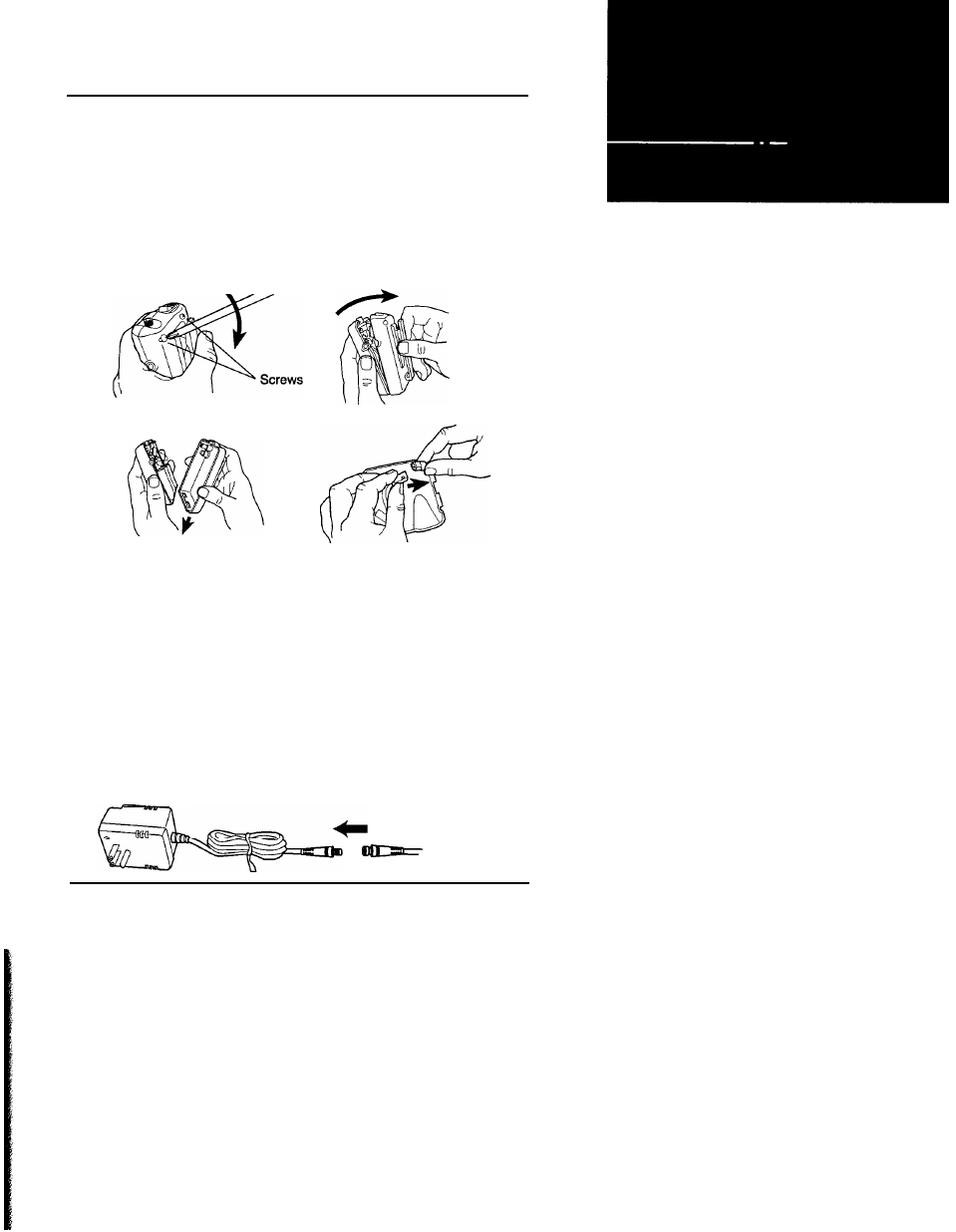

Battery Replacement
l
Be sure power is off.
l
Remove both screws from back of power source with Phillips
head screwdriver.
l
Grasp the belt clip, gently pull back and down on the housing.
(Steps 2 and 3)
l
Lift battery out and unplug from unit.
l
Replace with new battery and reverse above steps.
Step 1
Step 3
Step 2
Step 4
NOTE: Power source housing screws must be securely tightened
in order to properly ho/d electrical components in place.
Direct Plug-In Transformer
l
Plug Power cord from the binocular otoscope into the Direct
Plug-In Power cord.
l
Push in until firmly in place.
l
Gently screw the external connector sleeve clockwise to
secure (optional).
l
The instrument is now ready for use.
l
Plug direct power source into a nearby receptacle.
To instrument
16
