Accessories

Pneumatic Speculum Holder

A pneumatic speculum holder with a

4x’s magnification lens can be used
to aid in examination of the ear.

Lamp Replacement

CAUTION:

Lamps may become very HOT. Be

sure to allow lamps to cool before changing.

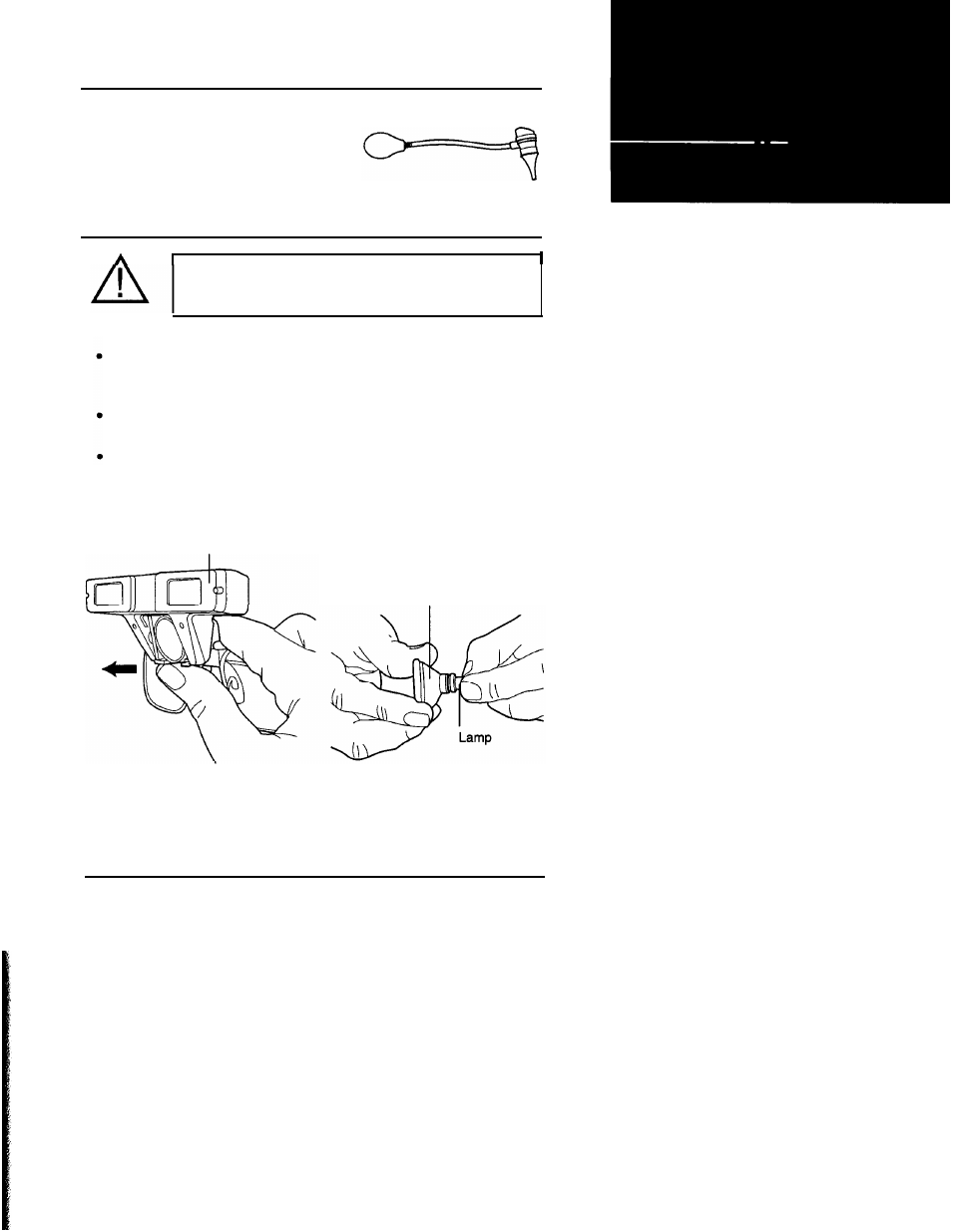

To change the lamp, flip the binocular assembly into its up position.

Remove the reflector assembly by placing the thumb on the
notch located on the bottom of the reflector housing and pushing
the reflector assembly. (Step 1)

Remove lamp and insert a new Welch Allyn lamp No. 08500 into
the back of the reflector. (Step 2)

Replace reflector housing into instrument and push until it snaps
into place.

NOTE: Reflector assembly air vents should be positioned top
and bottom.

Binocular assembly

Reflector
assembly

Step 1 Step 2
