16
Head Configuration
GP I/O Configuration
The function of the four data channels on the GP I/O socket of the head
are enabled and configured using ICE Tool. The channels can be
configured to function as inputs or outputs.

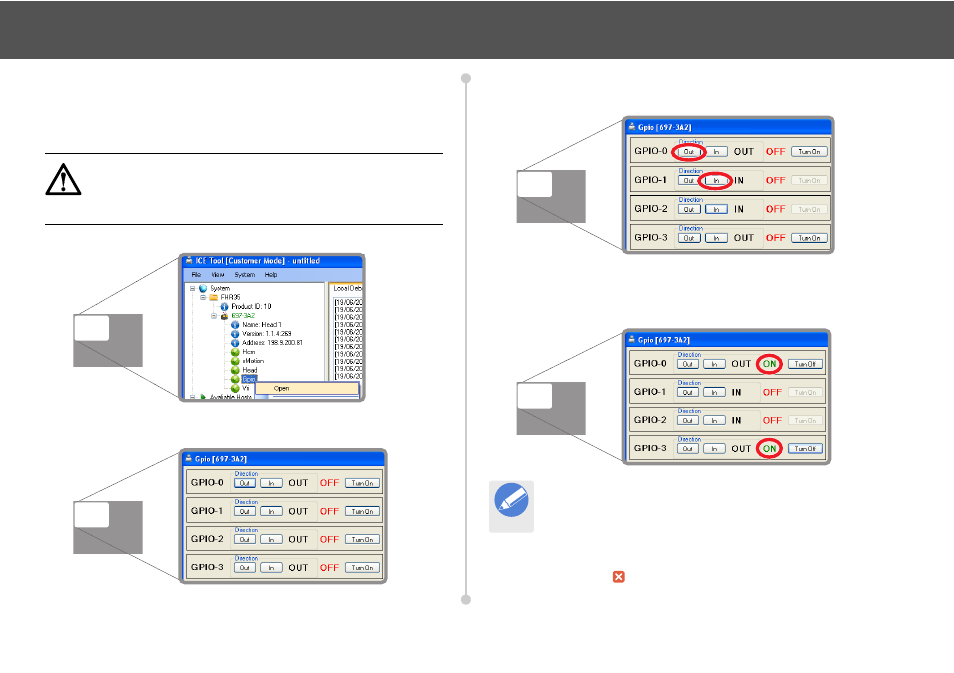

1. Right-click on the Gpio component and select Open.
2. The Gpio window opens. The four channels are labelled GPIO-0
to GPIO-3.
3. In the Direction fields, configure the required channels as outputs
or inputs by clicking Out or In.
4. To enable an output channel, click Turn On for the required
channel. The button toggles to become a Turn Off function and
the status of the channel changes to ON.
5. Any configuration changes made remain in effect after the Gpio
window is closed
.
CAUTION! Risk of product damage. Ensure that the
auxiliary device connected to the GP I/O socket is
compatible with the input/output settings configured using
ICE Tool.
Note
If a channel is configured as an input, the Turn On button is
not available.
