15
Head Configuration

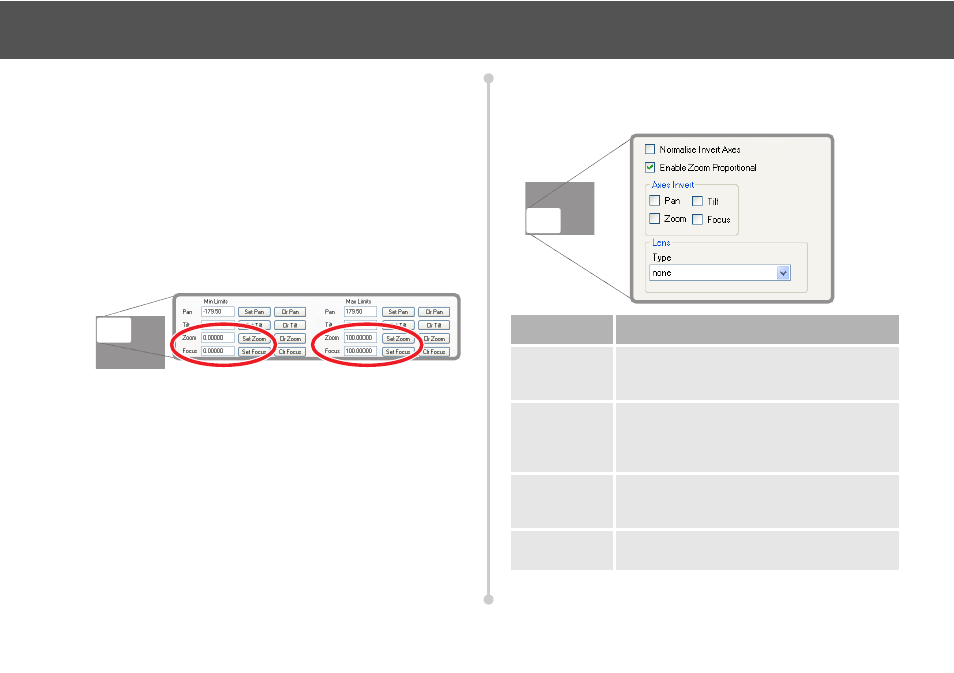

Setting the Servo Lens Soft Limits
Soft limits can also be applied to zoom and focus if a servo lens is
connected to the head. This is useful to restrict the range of the lens
drives away from the mechanical hard stops.
1. Move zoom and focus to the required minimum positions or enter
an encoder count value in the Min Limits field.
2. Click the Set Zoom and Set Focus buttons
3. Click Apply to store the new limits.
4. Repeat steps 1 to 3 to set the required maximum positions in the
Max Limits fields.
General Axis Configuration
The following settings can also be changed in the head configuration
window:
Click Apply to store and activate any configuration changes.
Setting Use
Normalise
Invert Axes Select if the head is mounted upside down
from the ceiling. Pan and tilt axes are reversed
to give standard control on an inverted mount.
Enable Zoom
Proportional Select to enable the speed of pan and tilt
movement to be proportional to the zoom
angle (zoomed in slower, and zoomed out
faster).
Axes Invert Selecting a check box in this field reverses the
direction of the axis when controlled using a
joystick.
Lens Type Select the required lens type from the drop-
down menu.
