Package Contents
Unpack the contents of the TP-MS608/616 and verify them against the checklist
below.
TP-MS608/616 x 1
Power Cord x 1
Bracket x 2 ( for 19” rack mounted)
CD-ROM x 1 (Software Utility + User Manual)
Compare the contents of your TP-MS608/616 package with the standard checklist
above. IF any item is missing or damaged, please contact your local dealer for service.
2. Hardware Description
This Section mainly describes the hardware of the TP-MS608/616 and gives a physical
and functional overview.
Physical Dimension
TP-MS608/616 physical dimension is: 430mm x 290mm x 44mm (Lx W x H)
(1U, 19” or 23” Rack mountable)
Front Panel

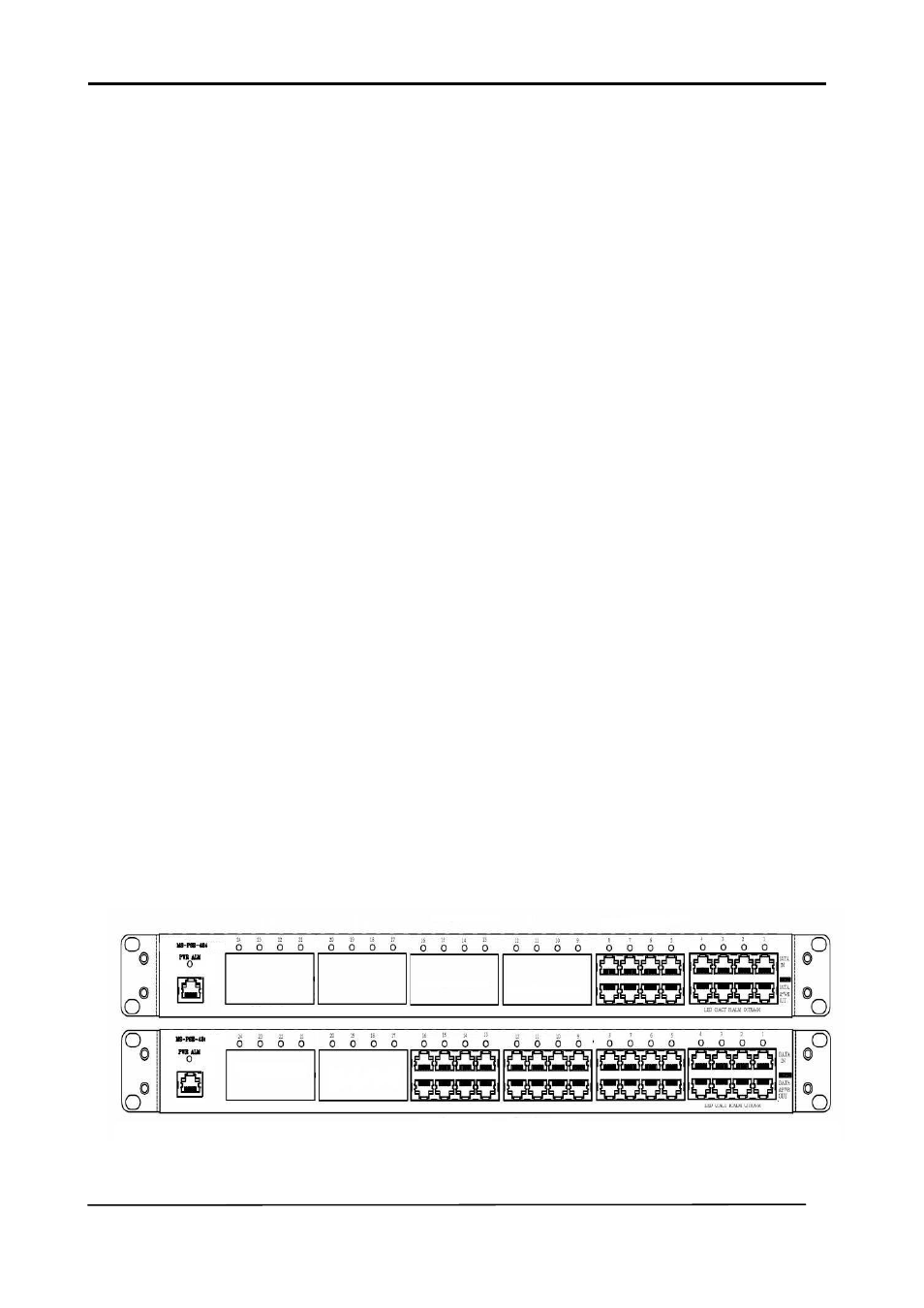

Figure 2-1. The Front panel of TP-MS608/616
