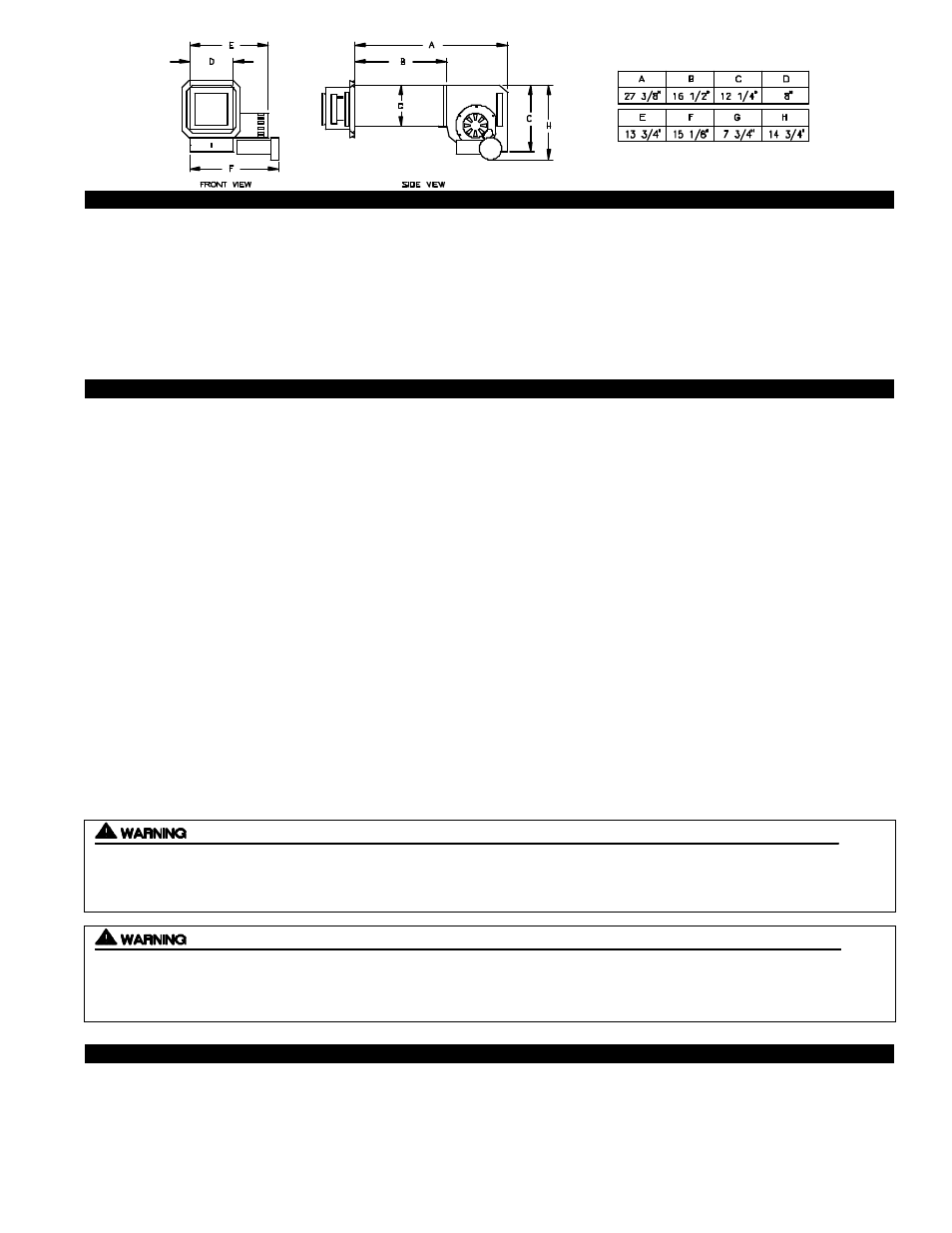

2
GENERAL INFORMATION
These units have been factory tested and rated in accordance with the following Canadian Standards: CAN/CSA - B140.0-M87
General Requirements For Oil Burning Equipment; CAN/CSA - B139-M91 Installation Code For Oil Burning Equipment;
CAN3 - B255-M81 Mechanical Flue - Gas Exhausters.
Each SideShot is electrically factory line tested before shipment.
After opening carton, inspect thoroughly for hidden damage. Wheel should rotate freely and Plenum section should be square. If
any damage is found notify freight carrier and your distributor immediately and file a concealed damage claim.
INSTALLATION RESTRICTIONS
1. The SideShot may not be installed on condensing appliances, incinerators, incinerating toilets, or solid fuel burning appliances.
2. The SideShot is Listed for Oil Fired appliances only.
3. The SideShot may only be installed on appliances equipped with a barometric draft control.
4. The SideShot shall not be installed where flue gas temperatures exceed 301oC (575oF) at its inlet.
Flue gas temperature verification:
A) Consult appliance manufacturer for temperature of gases at the appliance after dilution by draft control.
AND
B) Measure temperature of flue gases at the inlet to the SideShot at time of installation. Temperature should be
measured after appliance and SideShot have operated for at least 15 minutes, allowing flue gas temperature to stabilize.
5. The electrical load controlled through the Fan Proving Switch must not exceed its nameplate ratings.
6. The maximum recommended wall thickness is 39cm (15”).
7. Vent runs of over 4.5 linear meters (15 linear feet) should use an approved, insulated vent connector to prevent problems
related to sulfur condensation.
CAUTIONS
1. Disconnect power supply from SideShot and heating equipment when making wiring connection and servicing the SideShot.
Failure to do so may result in personal injury and/or equipment damage.
2. Failure to install, maintain and/or operate the SideShot in accordance with manufacturer's instructions may result in conditions
which can produce bodily injury and property damage.
Improper installation, adjustment, alterations, service or maintenance can cause injury or property damage.
Refer to this manual. For assistance or additional information consult a qualified installer, service agency or the
equipment supplier.
Do not exceed the recommended input range of the SideShot. Under no circumstances shall the minimum
draft adjustment be used for the larger input range of this product. Improper adjustment may result in the dispersion of
flue products into the building interior causing carbon monoxide poisoning or soot damage.
