Tjernlund SS1C SideShot (Discontinued Version - Pre UC1 Universal Control) 8504040 Rev 4 05/95 User Manual
Page 12
11
SIDESHOT CONNECTED TO AN R8184G WITH THE APPLIANCE
BURNER MOTOR LESS THAN 6.2 AMPS @ 120 VAC
STANDARD HONEYWELL ST9103 WIRING
1. Separate the black burner motor wire from the Orange wire of
the R8184G. NOTE: Do not separate ignition transformer wire
or the optional oil valve wire from the Orange.
2. Connect the Black burner motor wire to terminal Y on the
SideShot terminal strip.
3. Connect the Orange wire of the R8184G to the O terminal on
the SideShot terminal strip.
4. Connect the White wire of the R8184G to the R terminal of the
SideShot terminal strip.
NOTE: The White wire from the R8184G will also be connected to
L2 or B2 as normally done when conventional venting.
5. Connect L1 terminal of the SideShot terminal strip to L1.
6. Connect the L2 terminal of the SideShot terminal strip to L2.
7. Connect the Ground to grounding screw in SideShot junction box.
NOTES: The SideShot is always interlocked with the primary control of the appliance. Wire all other furnace/boiler controls as
normally done when conventional venting before continuing. Disconnect power from the appliance before attempting to interlock
the SideShot.

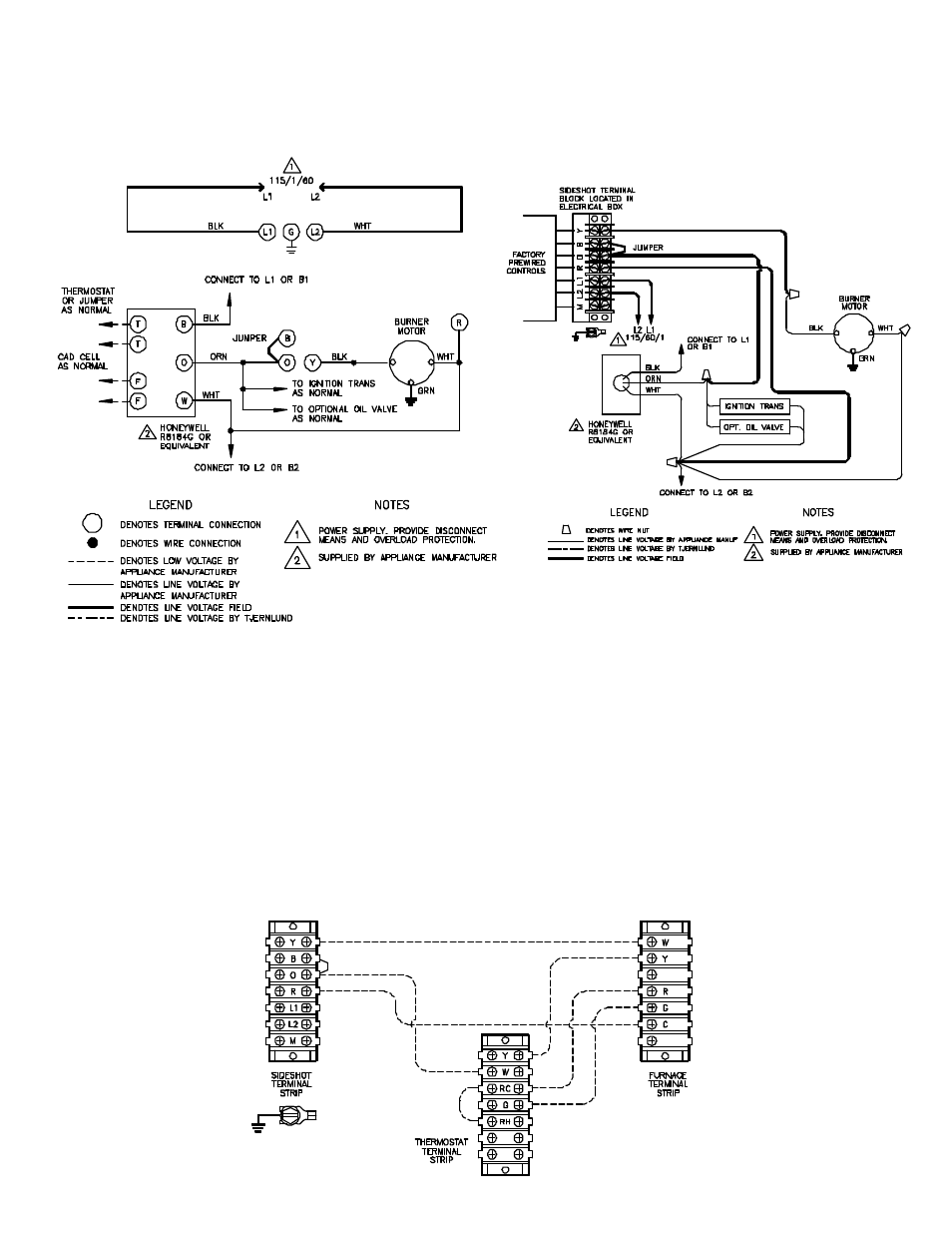

LADDER DIAGRAM
CONNECTION DIAGRAM
